Intel Celeron D

Intel
®
Celeron
®
D Processor in the 775-Land LGA Package Thermal Design Guide49
Order #303730
Case Temperature Reference Methodology
D.14 IHS Groove
Cut a groove in the package IHS according to Figure 19.

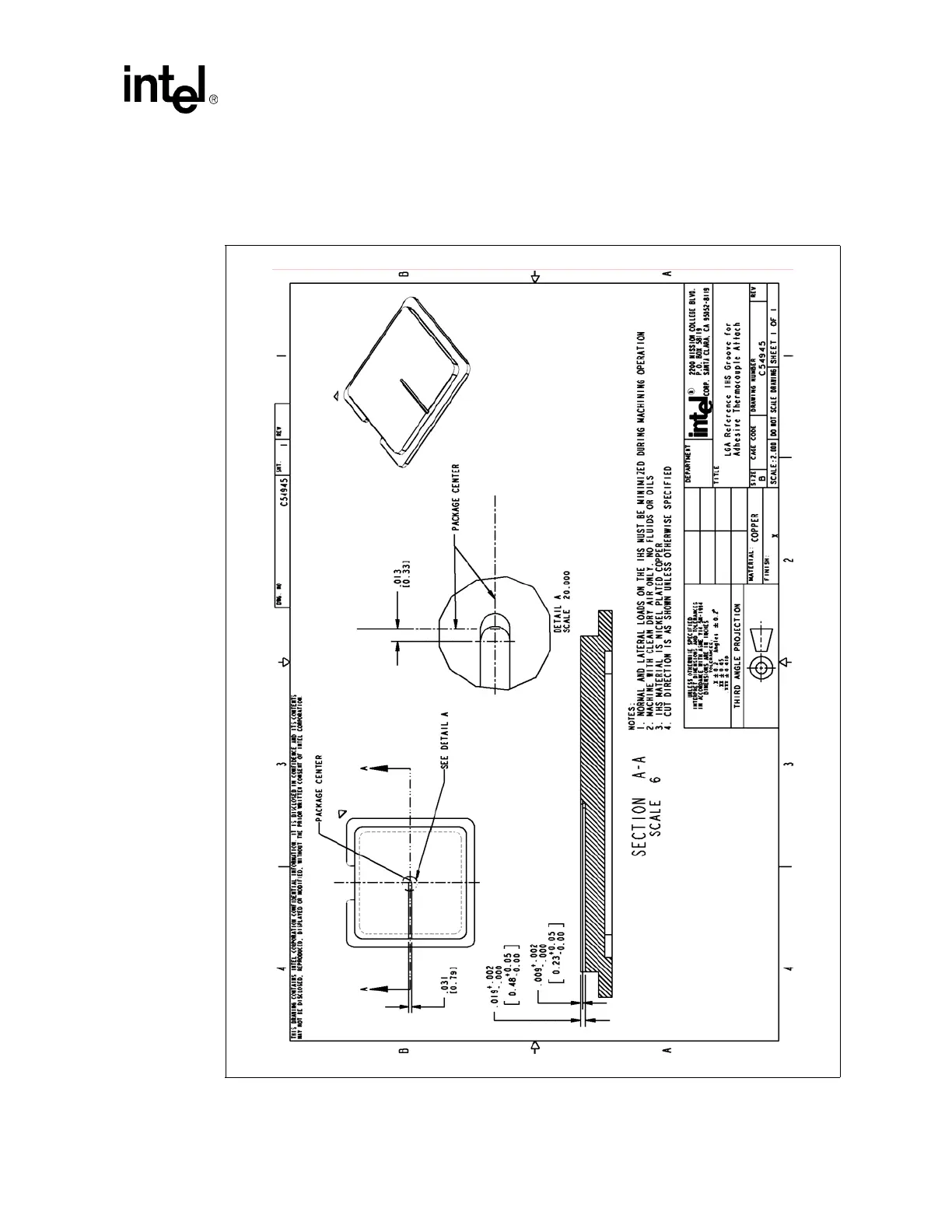

Figure 19. FC-LGA4 Package Reference Groove Drawing
