Intel D102GGC2 User Manual

Installing and Replacing Desktop Board Components
25
Installing the I/O Shield
The desktop board comes with an I/O shield. When installed in the chassis, the shield blocks radio
frequency transmissions, protects internal components from dust and foreign objects, and promotes
correct airflow within the chassis.
Install the I/O shield before installing the desktop board in the chassis. Place the shield inside the
chassis as shown in
Figure 4. Press the shield into place so that it fits tightly and securely. If the
shield doesn’t fit, obtain a properly-sized shield from the chassis supplier.
OM19141

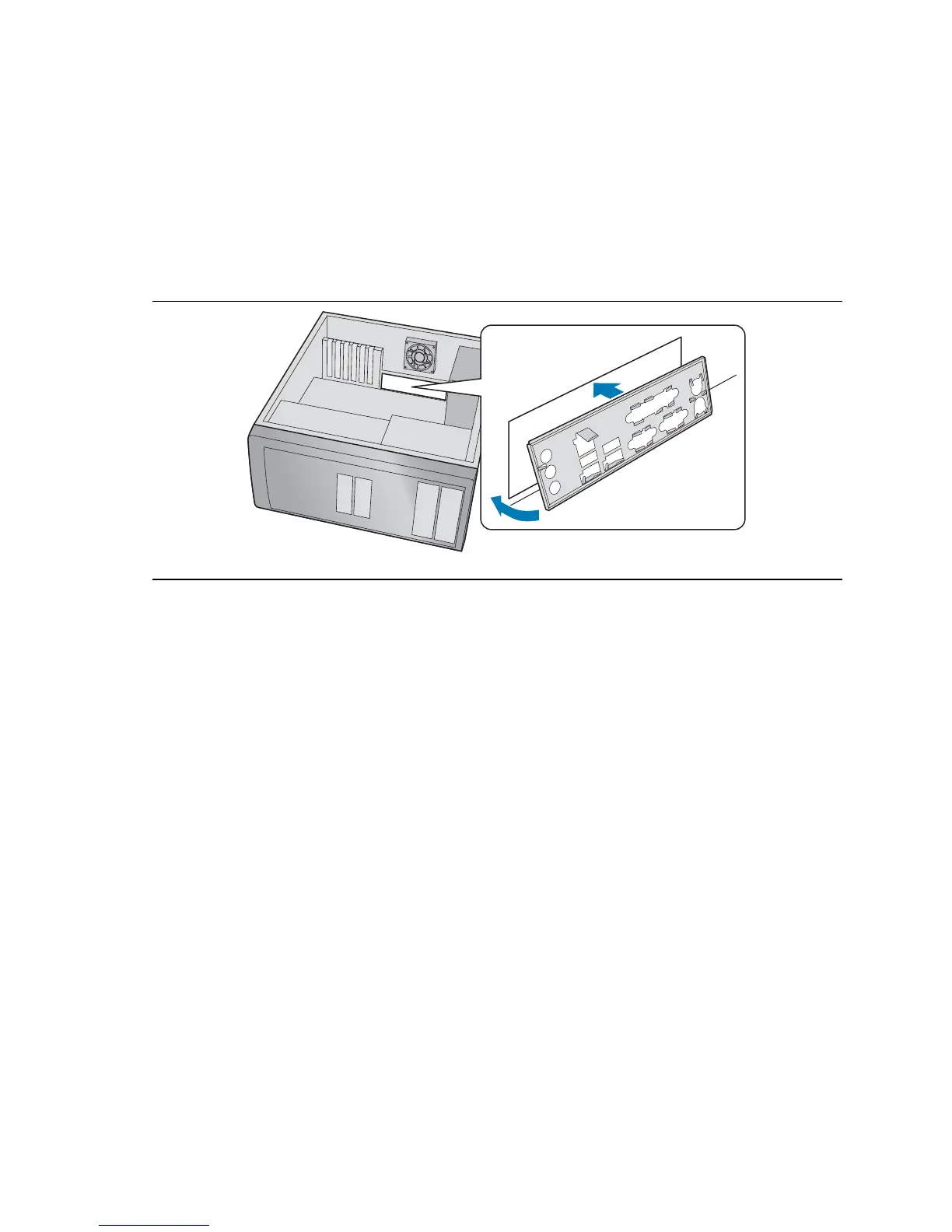

Figure 4. Installing the I/O Shield

Intel D102GGC2 Specifications

General

Number of memory slots	2
Maximum internal memory	2 GB
Supported memory clock speeds	400, 533 MHz
Processor socket	LGA 775 (Socket T)
Number of SATA connectors	4
ATX Power connector (24-pin)	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows XP/2000
On-board graphics card	No
Parallel processing technology support	Not supported
Networking features	Fast Ethernet

Weight and Dimensions

Depth	218.44 mm
Width	243.84 mm
