Installing the Processor Fan Heat Sink
Desktop board D102GGC2 has an integrated processor fan heat sink retention mechanism (RM).
For instructions on how to attach the processor fan heat sink to the integrated processor fan heat
sink RM, refer to the boxed processor manual or the Intel World Wide Web site at:
The Boxed Intel
®
Pentium
®
4 Processor in the 775-Land Package
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the 4-pin processor fan connector (see Figure 12).
OM18212
3
1
2
4
3
1
2
4

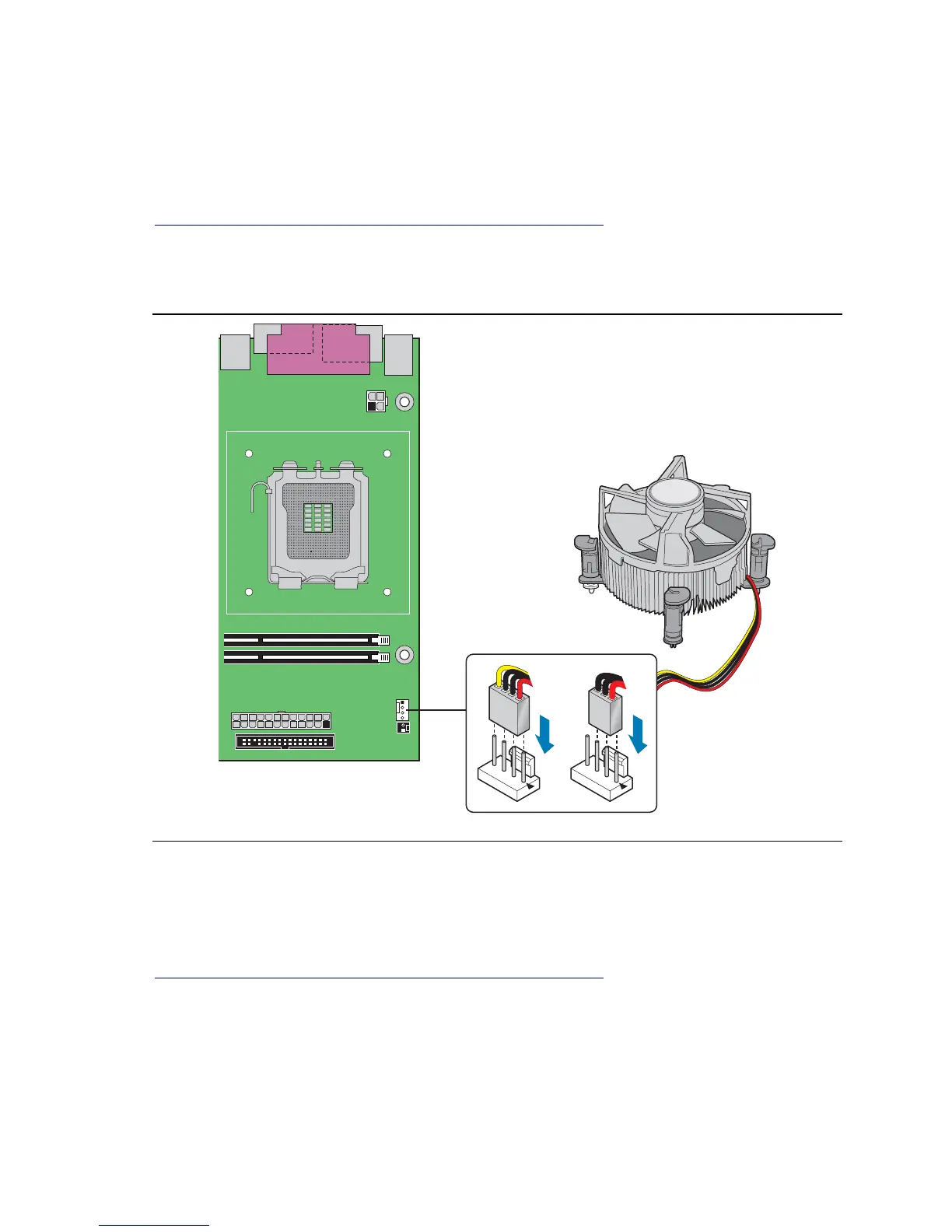

Figure 12. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector
Removing the Processor
For instruction on how to remove the processor fan heat sink and processor, refer to the processor
installation manual or the Intel World Wide Web site at:
The Boxed Intel
®
Pentium
®
4 Processor in the 775-Land Package

Intel D102GGC2 Specifications

General

Number of memory slots	2
Maximum internal memory	2 GB
Supported memory clock speeds	400, 533 MHz
Processor socket	LGA 775 (Socket T)
Number of SATA connectors	4
ATX Power connector (24-pin)	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows XP/2000
On-board graphics card	No
Parallel processing technology support	Not supported
Networking features	Fast Ethernet

Weight and Dimensions

Depth	218.44 mm
Width	243.84 mm
