Intel D102GGC2 User Manual

Installing and Replacing Desktop Board Components
45
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before changing the
jumper. Moving the jumper with the power on may result in unreliable computer operation.

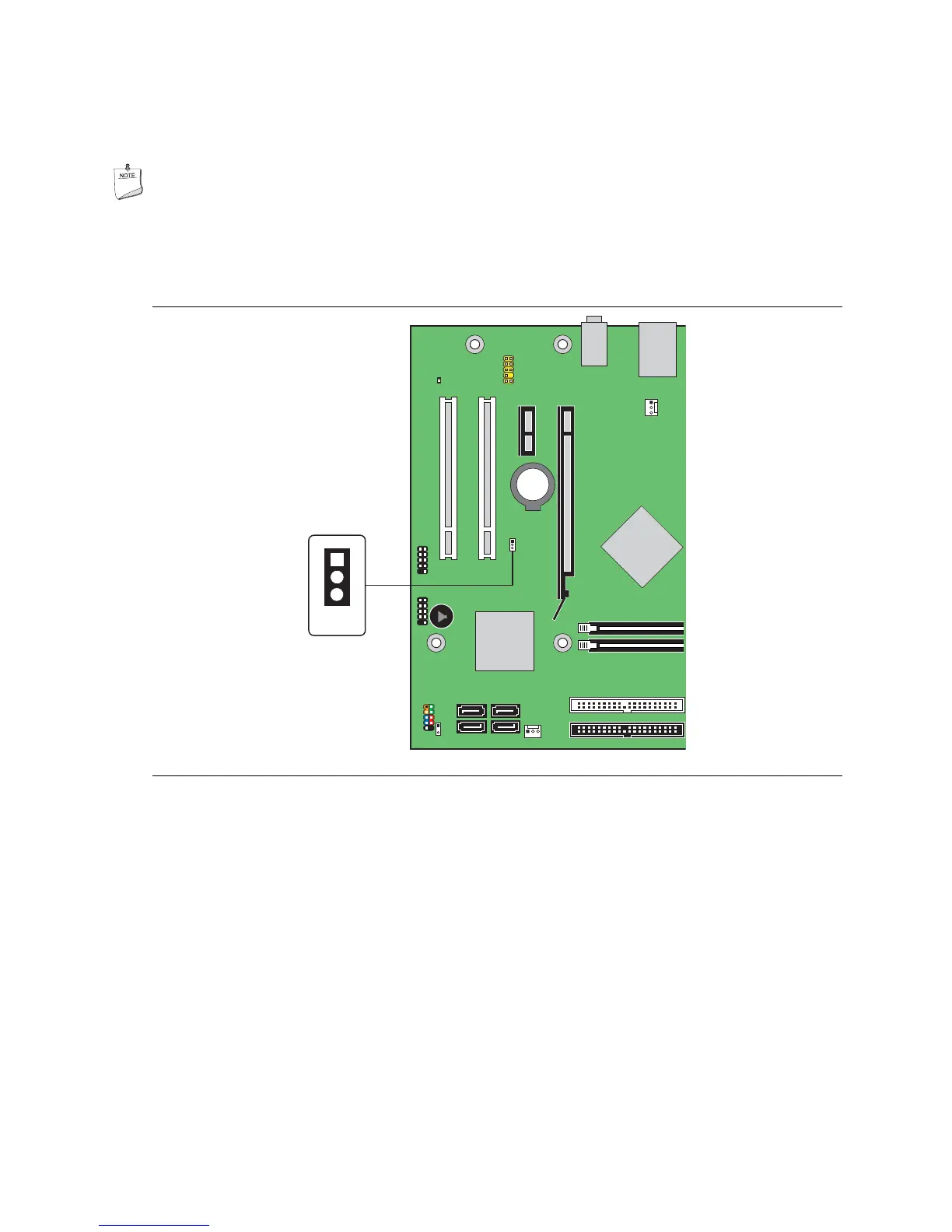

Figure 24 shows the location of the desktop board’s BIOS configuration jumper block.
OM19154
1
3
2
BR1
Figure 24. Location of the BIOS Configuration Jumper Block
The three-pin BIOS jumper block enables all board configuration to be done in the BIOS Setup
program.
Table 9 shows the jumper settings for the Setup program modes.

Intel D102GGC2 Specifications

General

Number of memory slots	2
Maximum internal memory	2 GB
Supported memory clock speeds	400, 533 MHz
Processor socket	LGA 775 (Socket T)
Number of SATA connectors	4
ATX Power connector (24-pin)	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows XP/2000
On-board graphics card	No
Parallel processing technology support	Not supported
Networking features	Fast Ethernet

Weight and Dimensions

Depth	218.44 mm
Width	243.84 mm
