Intel D102GGC2 User Manual

Installing and Replacing Desktop Board Components
43
Connecting Power Cables
CAUTION
Failure to use the appropriate power supply and/or not connecting the 12 V (2 x 2) power
connector to the desktop board may result in damage to the board or the system may not function
properly.
See Table 3 on page 13 for power supply requirements. Figure 22 shows the location of the power
connectors.
OM19156
2 x 12
2 x 2

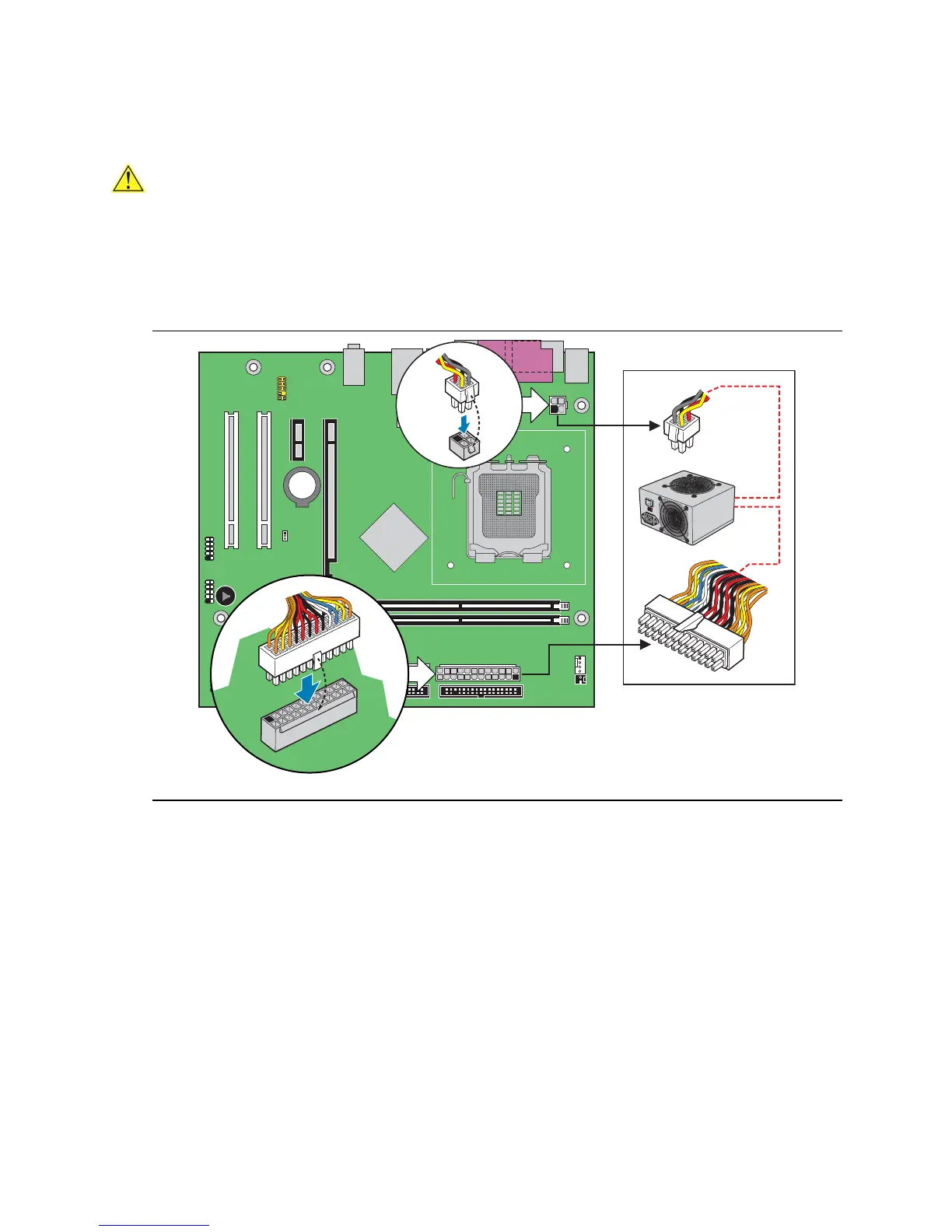

Figure 22. Connecting 2 x 12 Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 23.
2. Connect the 12 V processor core voltage power supply cable to the 2 x 2 connector.
3. Connect the main power supply cable to the 2 x 12 connector.

Intel D102GGC2 Specifications

General

Number of memory slots	2
Maximum internal memory	2 GB
Supported memory clock speeds	400, 533 MHz
Processor socket	LGA 775 (Socket T)
Number of SATA connectors	4
ATX Power connector (24-pin)	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows XP/2000
On-board graphics card	No
Parallel processing technology support	Not supported
Networking features	Fast Ethernet

Weight and Dimensions

Depth	218.44 mm
Width	243.84 mm
