Intel D102GGC2 User Manual

Installing and Replacing Desktop Board Components
35
Removing the PCI Express x16 Card
Follow these instructions to remove the PCI Express x16 card from the RM:
1. Observe the precautions in "
Before You Begin" on page 23.
2. Remove the screw (
Figure 16, A) that secures the card’s metal bracket to the chassis back
panel.
3. Push back on the RM lever (
Figure 16, B) until the retention pin completely clears the notch in
the card.
4. Pull the card straight up.
OM19145
A
B

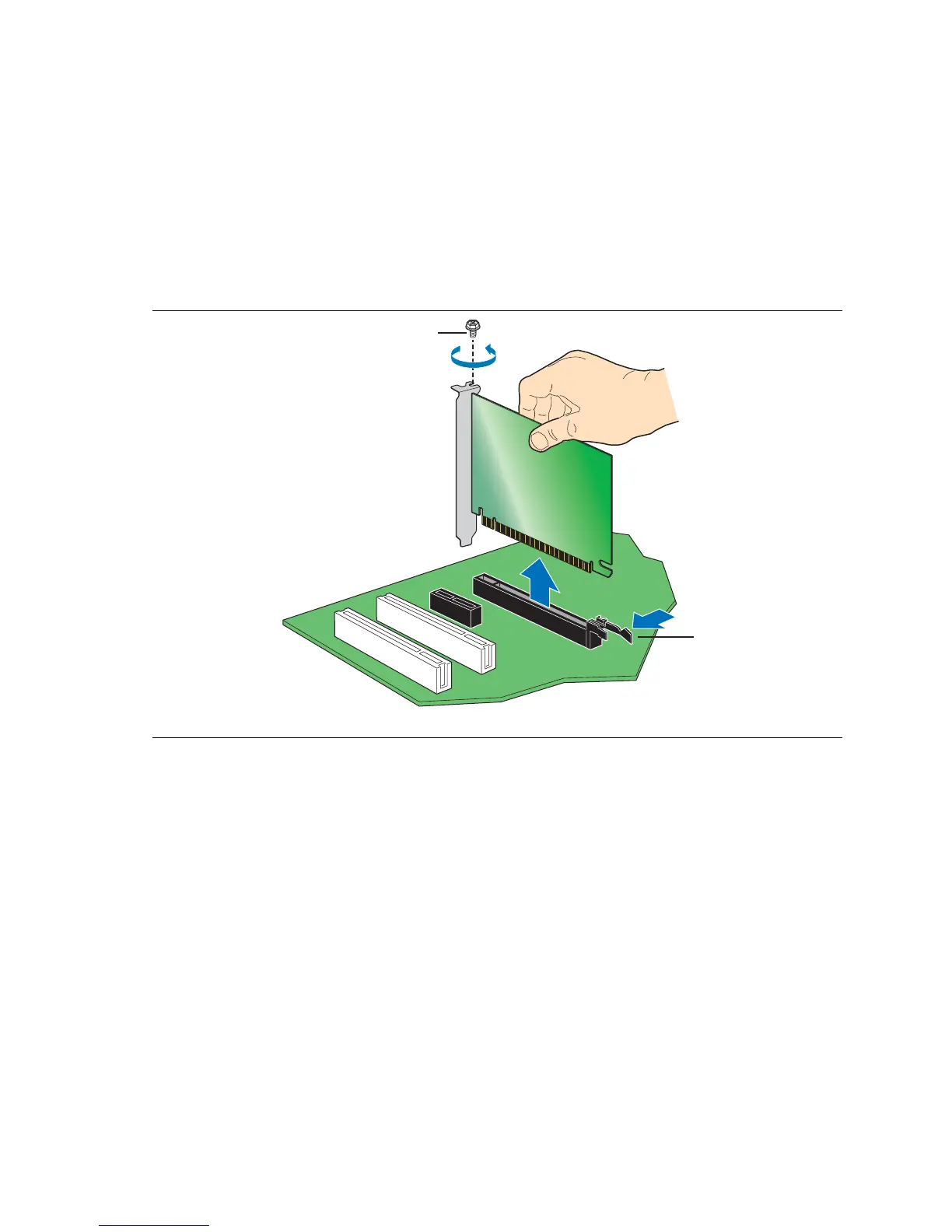

Figure 16. Removing a PCI Express x16 Card

Intel D102GGC2 Specifications

General

Number of memory slots	2
Maximum internal memory	2 GB
Supported memory clock speeds	400, 533 MHz
Processor socket	LGA 775 (Socket T)
Number of SATA connectors	4
ATX Power connector (24-pin)	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows XP/2000
On-board graphics card	No
Parallel processing technology support	Not supported
Networking features	Fast Ethernet

Weight and Dimensions

Depth	218.44 mm
Width	243.84 mm
