Intel Desktop Board D102GGC2 Product Guide
36
Connecting the IDE Cable
The IDE cable can connect two drives to the desktop board. The cable supports the ATA-100
transfer protocol.
Figure 17 shows the correct installation of the cable.
NOTES
ATA-100 compatible cables are backward compatible with drives using slower IDE transfer
protocols. If an ATA-100 disk drive and a disk drive using any other IDE transfer protocol are
attached to the same cable, the maximum transfer rate between the drives may be reduced to that of
the slowest drive.
Do not connect an ATA device as a slave on the same IDE cable as an ATAPI master device. For
example, do not connect an ATA hard drive as a slave to an ATAPI CD-ROM drive.
For correct function of the cable:
1. Observe the precautions in "
Before You Begin" on page 23.
2. Attach the cable end with the single connector (blue) to the Intel desktop board (
Figure 17).
3. Attach the cable end with the two closely spaced connectors (gray and black) to the drives.
OM18215

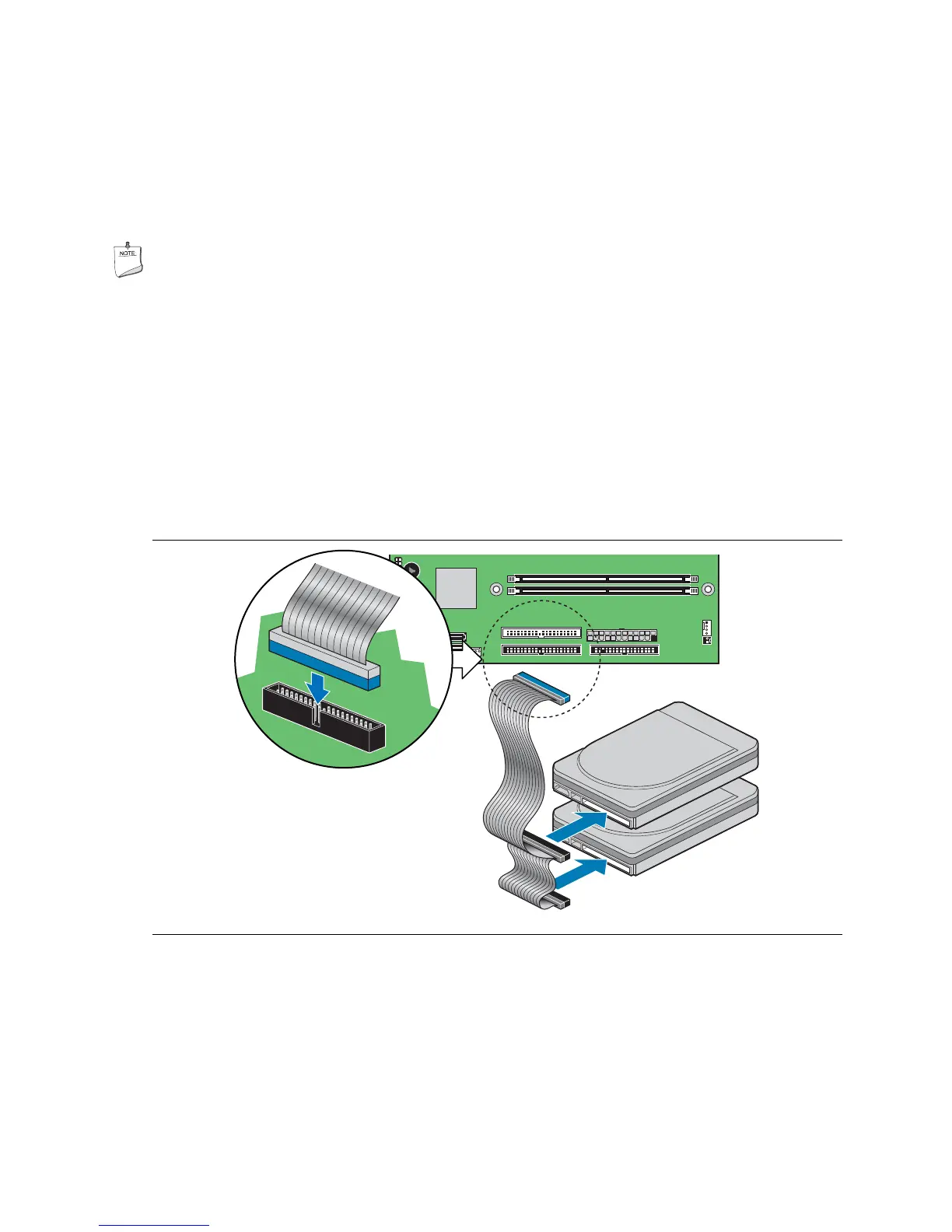

Figure 17. Connecting the IDE Cable

Intel D102GGC2 Specifications

General

Number of memory slots	2
Maximum internal memory	2 GB
Supported memory clock speeds	400, 533 MHz
Processor socket	LGA 775 (Socket T)
Number of SATA connectors	4
ATX Power connector (24-pin)	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows XP/2000
On-board graphics card	No
Parallel processing technology support	Not supported
Networking features	Fast Ethernet

Weight and Dimensions

Depth	218.44 mm
Width	243.84 mm
