Intel Desktop Board D102GGC2 Product Guide
38
Connecting Internal Headers
Before connecting cables to the internal headers, observe the precautions in "Before You Begin" on
page
23. Figure 19 shows the location of the internal headers.
OM19152
A
C
+5 V
Reset
HD LED
–
On/Off
Power
LED
+
+
–
9
87
65
4
2
3
1
B
Alternate
Front Panel
Power LED
10
87
65
4
2
1
3
No
Connection
Ground
D+
D–
Power (+5 V)
Key (no pin)
Ground
D+
Power (+5 V)
D–
3
+
–
1
D
109
7
65
4
2
1
3
Sense2_Ret
Key (no pin)
Sense1_Ret
Presence#
GND
Port2L
Sense_Send
Port2R
Port1R
Port1L
Item Description
A Hi-speed USB 2.0 (two)
B Alternate front panel power LED
C Front panel
D Front panel audio

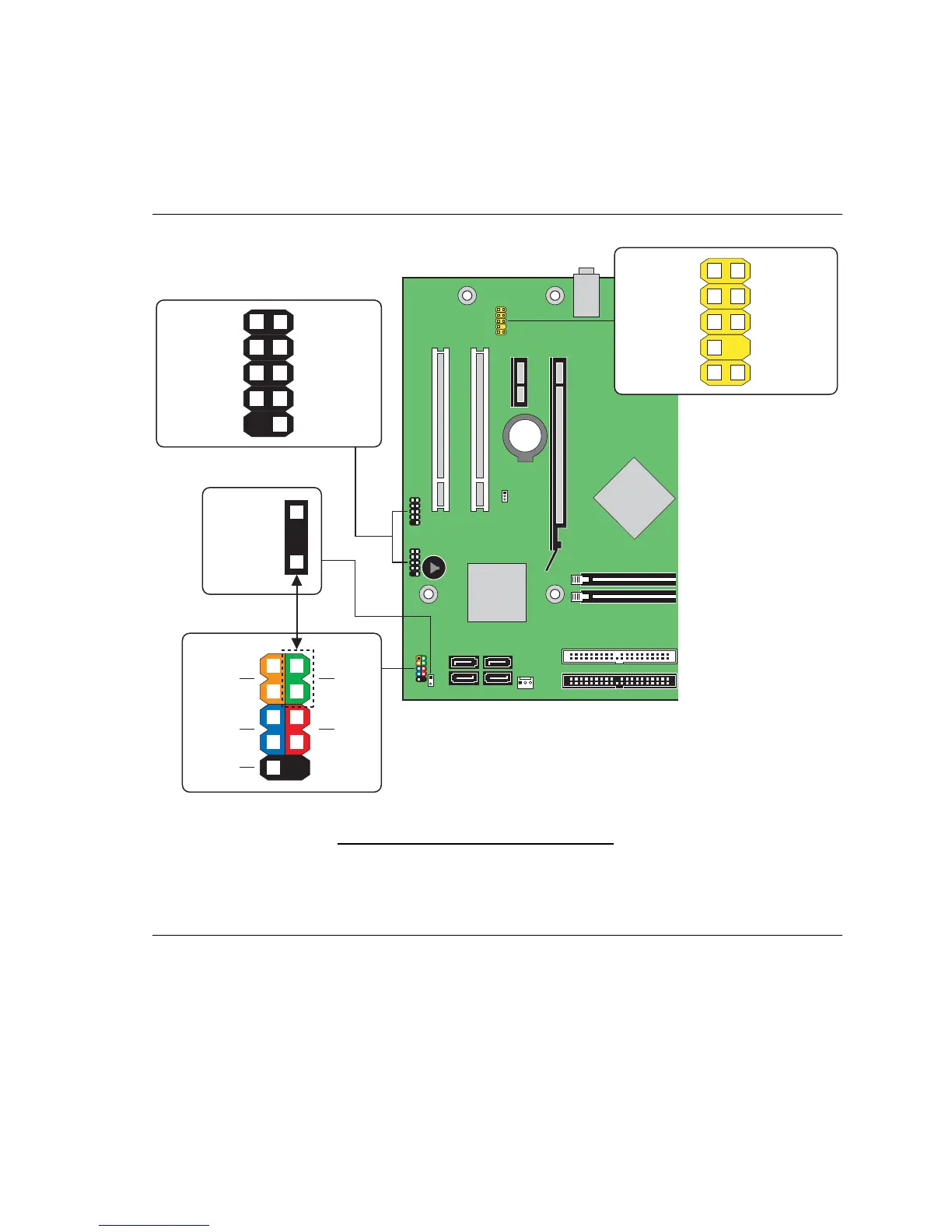

Figure 19. Internal Headers

Intel D102GGC2 Specifications

General

Number of memory slots	2
Maximum internal memory	2 GB
Supported memory clock speeds	400, 533 MHz
Processor socket	LGA 775 (Socket T)
Number of SATA connectors	4
ATX Power connector (24-pin)	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows XP/2000
On-board graphics card	No
Parallel processing technology support	Not supported
Networking features	Fast Ethernet

Weight and Dimensions

Depth	218.44 mm
Width	243.84 mm
