Other Connectors
Figure 23 shows the location of the PCI bus add-in card, PCI Express x1, chassis intrusion, and
diskette drive connectors.
OM19153
A B C
E D
Item Description
A PCI bus add-in card connector 2
B PCI bus add-in card connector 1
C PCI Express x1 connector
D Chassis intrusion connector
E Diskette drive connector

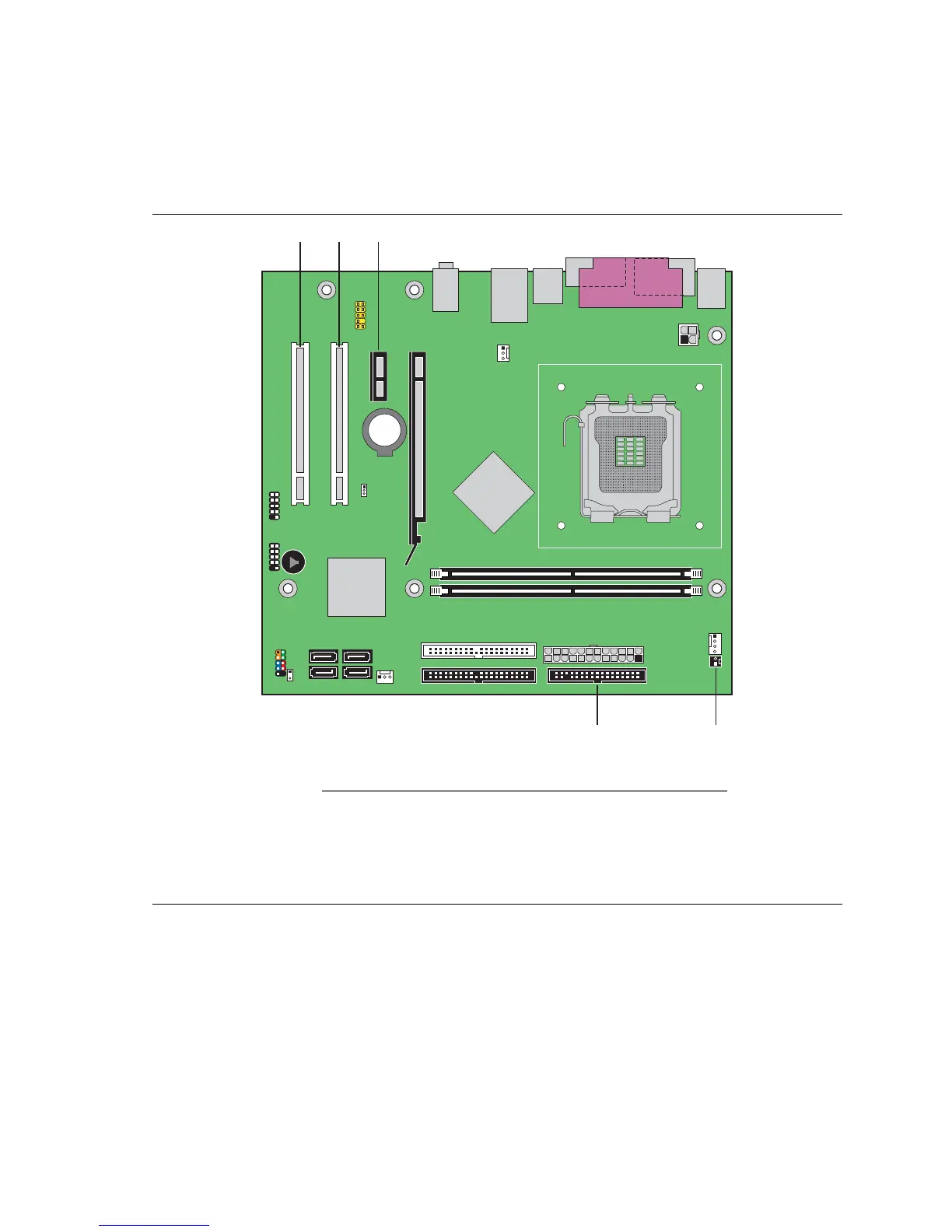

Figure 23. Location of Other Connectors on Desktop Board D102GGC2
