Intel Desktop Board D102GGC2 Product Guide
34
Installing and Removing a PCI Express x16 Card
CAUTION
When installing a PCI Express x16 card on the desktop board, ensure that the card is fully seated
in the PCI Express x16 connector before you power on the system. If the card is not fully seated in
the PCI Express connector, an electrical short may result across the PCI Express connector pins.
Depending on the over-current protection of the power supply, certain board components and/or
traces may be damaged.
Installing a PCI Express x16 Card
1. Observe the precautions in "Before You Begin" on page 23.
2. Place the card in the PCI Express x16 connector and press down on the card until it is
completely seated in the connector (
Figure 15, A) and the card retention notch snaps into place
around the RM pin .
3. Secure the card’s metal bracket to the chassis back panel with a screw (
Figure 15, B).
OM19146
B
A

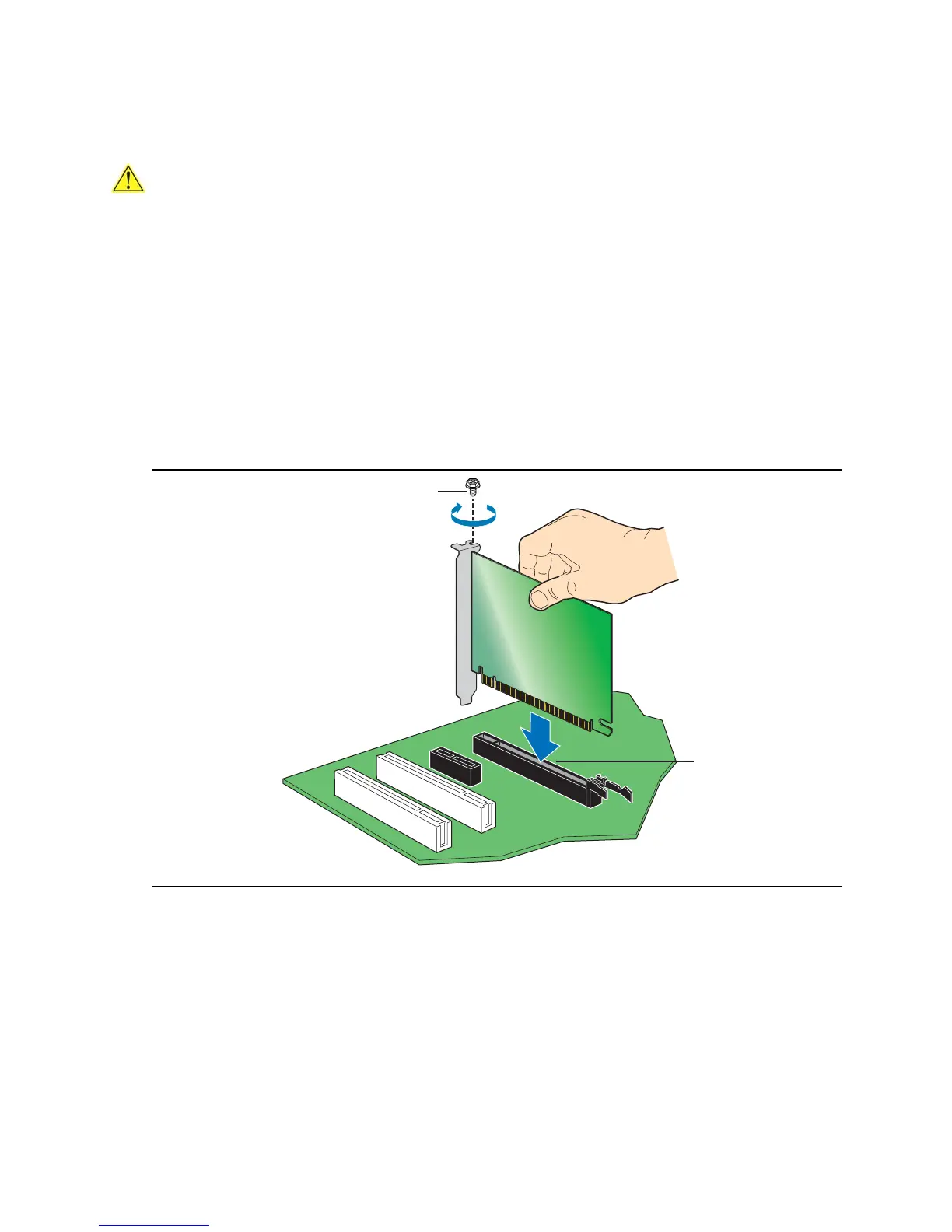

Figure 15. Installing a PCI Express x16 Card

Intel D102GGC2 Specifications

General

Number of memory slots	2
Maximum internal memory	2 GB
Supported memory clock speeds	400, 533 MHz
Processor socket	LGA 775 (Socket T)
Number of SATA connectors	4
ATX Power connector (24-pin)	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Power source type	ATX
Audio output channels	- channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows XP/2000
On-board graphics card	No
Parallel processing technology support	Not supported
Networking features	Fast Ethernet

Weight and Dimensions

Depth	218.44 mm
Width	243.84 mm
