Intel D102GGC2

Intel Desktop Board D102GGC2 Product Guide
42
Connecting Chassis Fan Cables

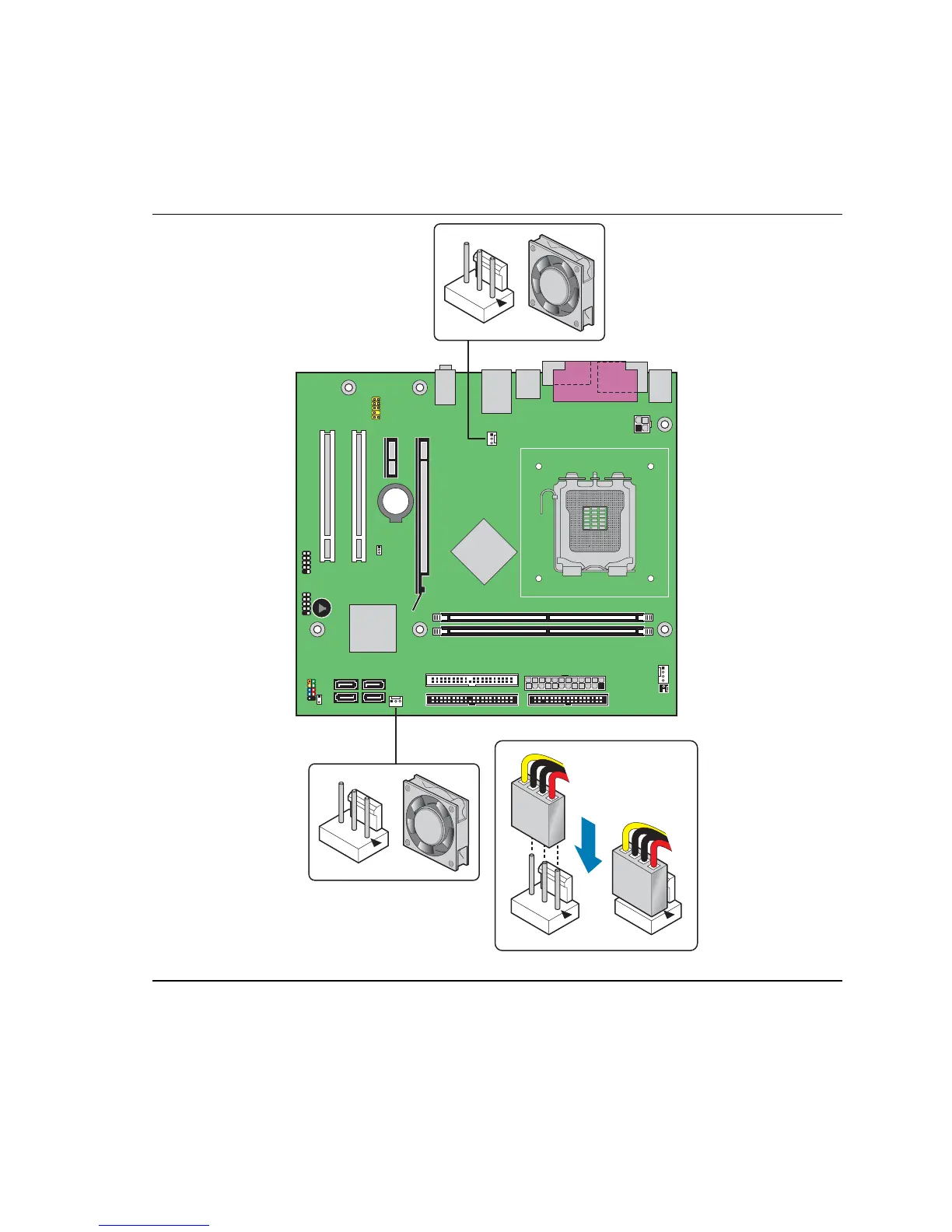

Figure 21 shows the location of the chassis fan headers. Connect the chassis fan cables to these
headers.
OM19143
2
1
3
2
1
3
2
1
3
Figure 21. Location of the Chassis Fan Headers
