Installing and Replacing Desktop Board Components
35
Installing the Rear Panel USB 2.0 Adapter
Follow these instructions to install the rear panel USB 2.0 adapter:
1. Observe the precautions in “Before You Begin” on page 23.
2. Attach the cable end with the connector to the front panel USB 2.0 header on the desktop
board.
3. Secure the cable’s metal bracket to the chassis back panel with a screw.
OM14822

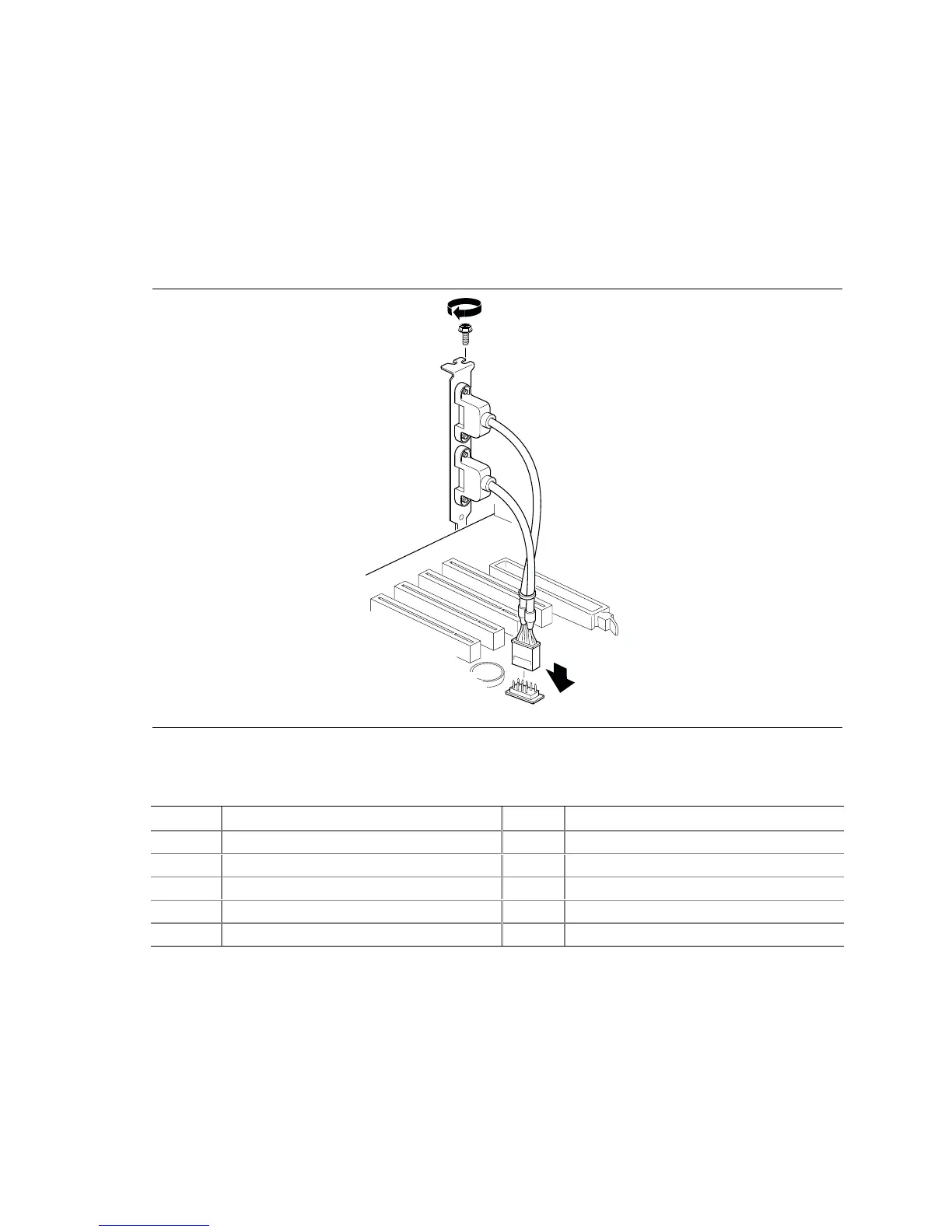

Figure 12. Connecting the Rear Panel USB 2.0 Adapter
Table 6. Front Panel USB 2.0 Header (J8F1)
Pin Signal name Pin Signal name
1 VREG_FP_WSBPWR0 2 VREG_FP_USBPWR0
3 USB_FPP0- 4 USB_FPP1-
5 USB_FPP0+ 6 USB_FPP1+
7 Ground 8 Ground
9 Key 10 USB_FP_OC0
Note: USB ports may be assigned as needed.
