Intel Desktop Board D845PEBT2 Product Guide
50
To replace the battery, follow these steps:
1. Observe the precautions in “Before You Begin” (see page 23).
2. Turn off all peripheral devices connected to the computer. Disconnect the computer’s power
cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Locate the battery on the board (see Figure 15).
5. With a medium flat-bladed screwdriver, gently pry the battery free from its connector. Note
the orientation of the “+” and “-” on the battery.
6. Install the new battery in the connector, orienting the “+” and “-” correctly.
7. Replace the computer cover.
OM14815

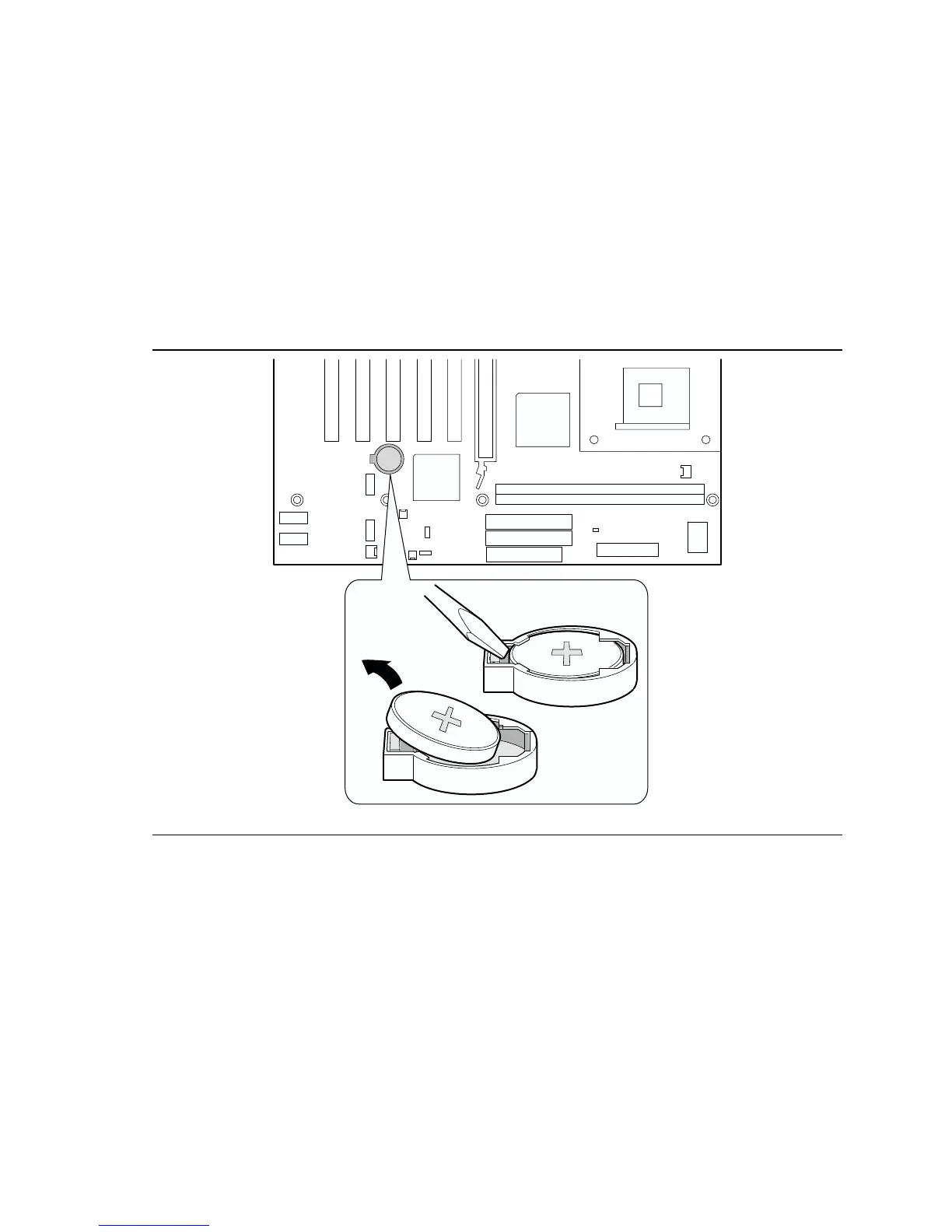

Figure 15. Removing the Battery
