Intel Desktop Board D845PEBT2 Product Guide
46
Setting up the Audio Subsystem
After installing the SoundMAX Cadenza audio driver from the Intel Express Installer CD-ROM,
the multi-channel audio feature can now be enabled.
C E
A B D F G

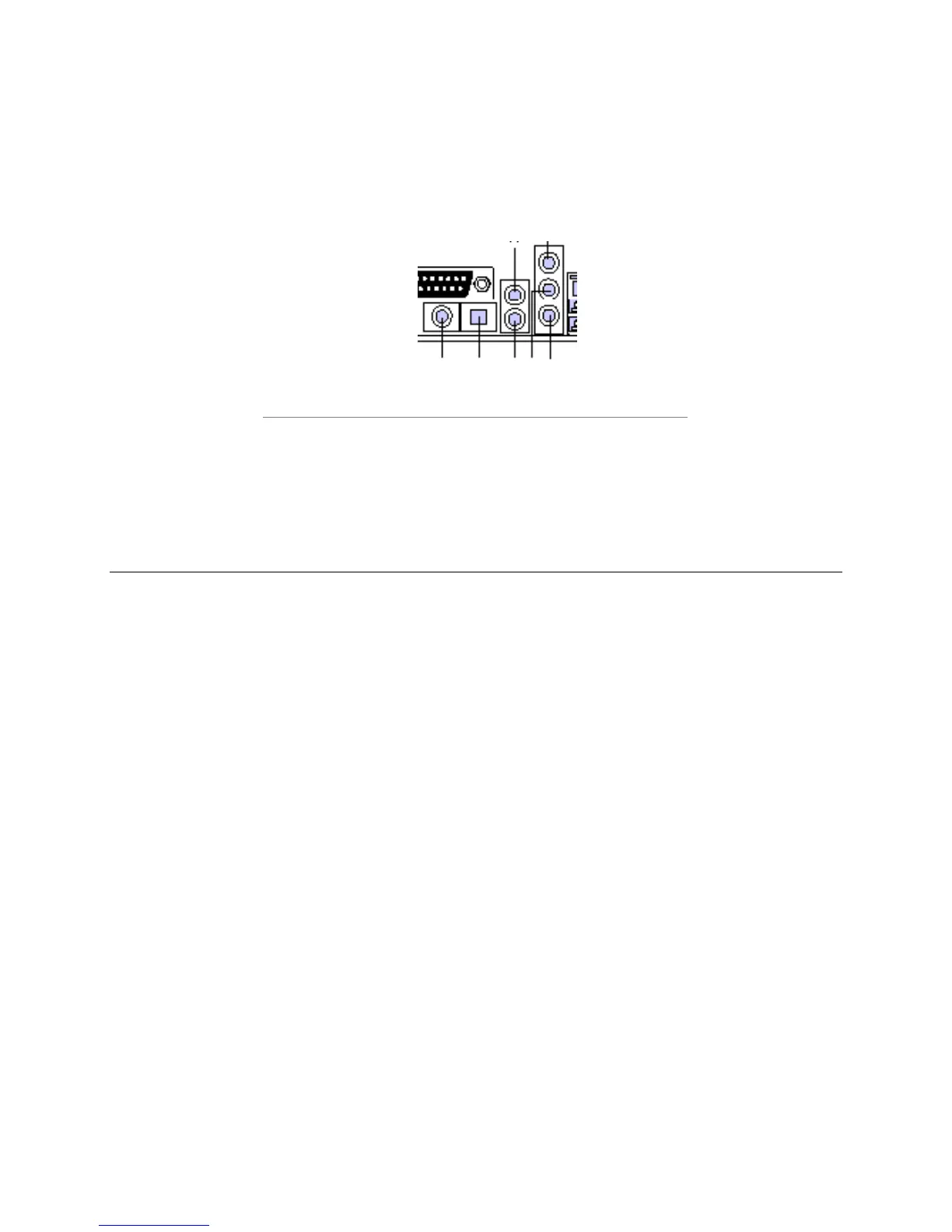

Item Description
A S/PDIF digital line out
B S/PDIF optical line out
C Rear left/right out (6-channel audio)
D Center/Low Frequency Effects (LFE) out (multi-channel)
E Line in
F Line out (2-channel) or front left/right out (multi-channel)
G Mic in
Multi-Channel Analog Audio
Connect two speakers to the front left/right out (F) and two speakers to the rear left/right out (C)
for both 4- and 6-channel audio configurations. For 6-channel audio, connect two additional
speakers to the center LFE out (D).
Multi-Channel Digital Audio
Two types of S/PDIF connectors are available, RCA (A) and optical (B). Select the proper
connector according to the style of S/PDIF speakers that will be used.
