Intel D845PEBT2 Product Guide

Desktop Board Features
11
Components

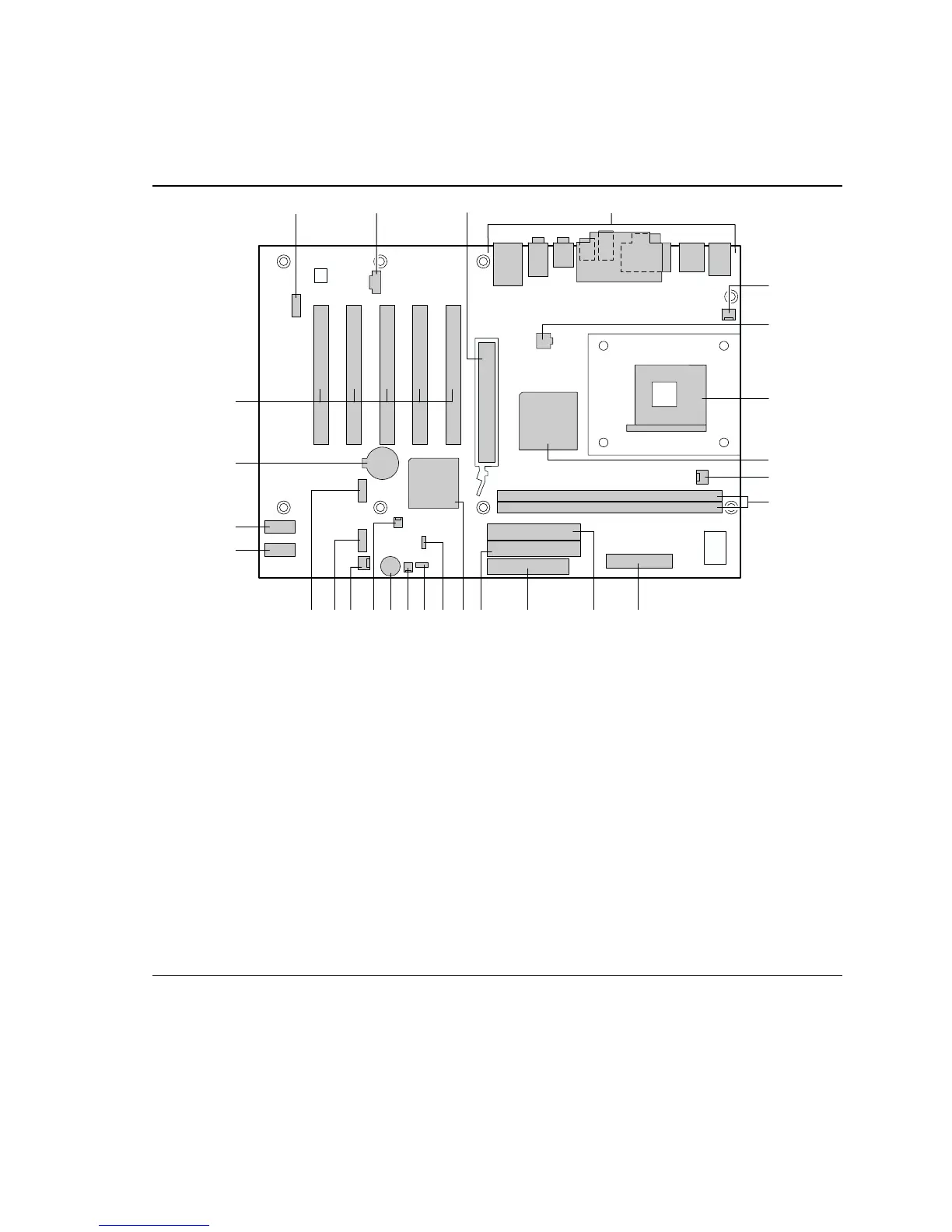

Figure 1 shows the location of the major components on Desktop Board D845PEBT2.
A B D
E
F
G
H
I
J
KLMNOPQRSTUVW
C
X
Y
Z
AA
OM14809
A Front panel audio header O Intel 82801DB (ICH4)
B CD-In connector (ATAPI) P Alternate power/sleep LED header
C AGP connector Q BIOS configuration jumper
D Back panel connectors R SCSI hard drive activity LED connector
E Rear chassis fan connector (fan speed control) S Speaker
F 12 V processor core voltage connector T Chassis intrusion connector
G Processor socket U Front chassis fan connector (fan speed control)
H Intel 82845PE (MCH) V Front panel header
I Processor fan connector W Front panel USB 2.0 header
J DIMM sockets X Primary Serial ATA connector
K Main power connector Y Secondary Serial ATA connector
L Secondary IDE connector Z Battery
M Diskette drive connector AA PCI bus add-in card connectors
N Primary IDE connector
Figure 1. Desktop Board Components

Intel D845PEBT2 Specifications

General

Brand	Intel
Model	D845PEBT2
Category	Motherboard
Language	English
