Intel Desktop Board D975XBX2 Technical Product Specification
22
Figure 6 shows a dual channel configuration using four DIMMs. In this example, the
combined capacity of the two DIMMs in Channel A equal the combined capacity of the
two DIMMs in Channel B. Also, the DIMMs are matched between DIMM0 and DIMM1 of
both channels.

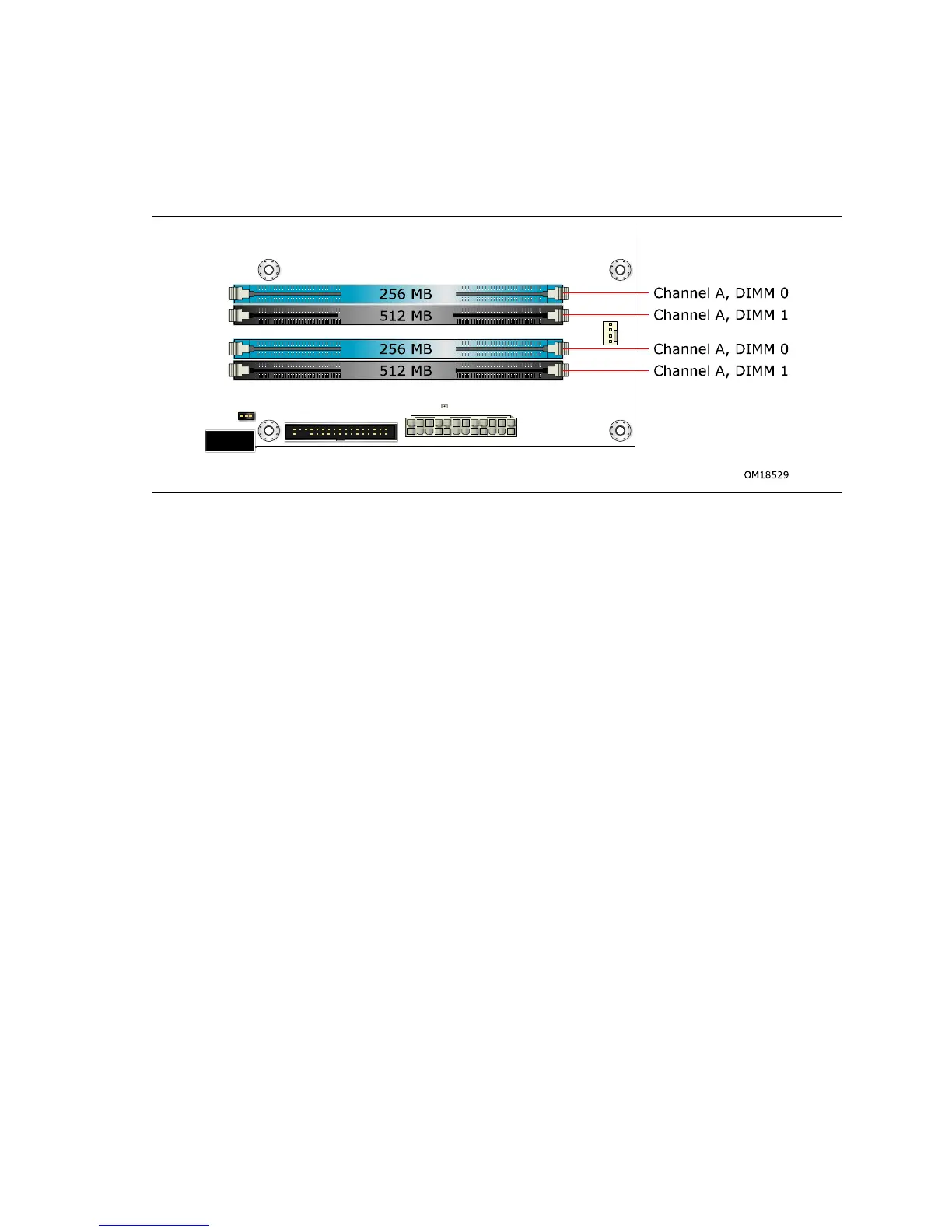

Figure 6. Dual Channel (Interleaved) Mode Configuration with Four DIMMs
