Product Description
33
1.10.4 6-Channel (5.1) Audio Subsystem
The 6-channel (5.1) audio subsystem includes the following:
• Intel 82801G I/O Controller Hub (ICH7-R/ICH7-DH)
• SigmaTel 9227 audio codec
• Microphone input that supports a single dynamic, condenser, or electret
microphone
The back panel audio connectors are configurable through the audio device drivers.
The available configurable audio ports are shown in
Figure 11.
OM18469
Line In/Retasking Jack
[Blue]
Mic In/Retasking Jack
[Pink]
Line Out/Retasking Jack
[Green]
Mic In/
Retasking Jack
[Pink]
Line Out/
Retaskin
Jack
[Green]
Front Panel Audio Connectors
[Routed from Front Panel Audio Header]
Back Panel Audio Connectors

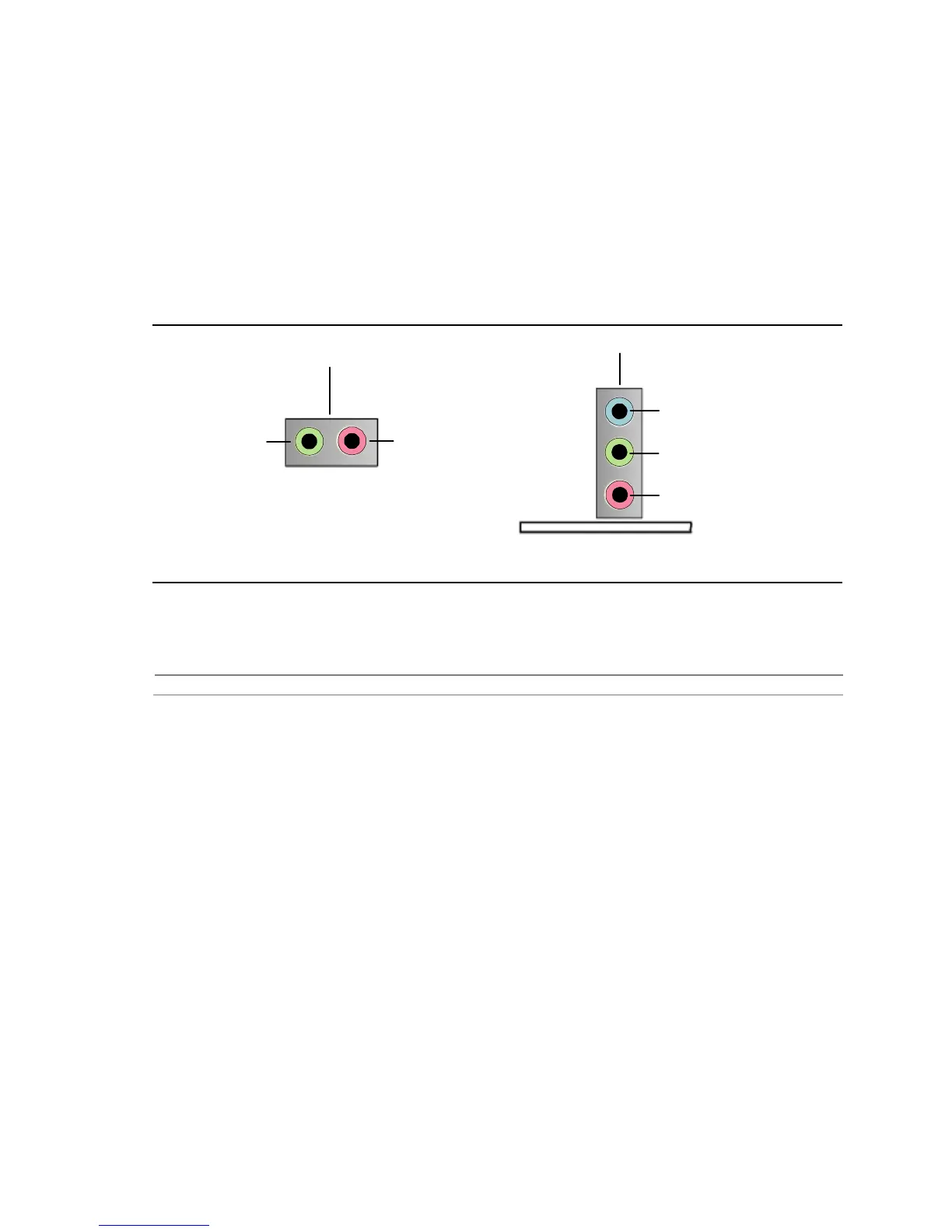

Figure 11. Front/Back Panel Audio Connector Options for 6-Channel (5.1)
Audio Subsystem
For information about Refer to
The back panel audio connectors Section 2.7.1, page 56
