1.15 Onboard LEDs
In addition to the standby power indicator, the board contains two LEDs that indicate
the following:
• The CPU LED indicates an elevated temperature on the processor that could effect
performance
• The VR LED indicates an elevated temperature in the processor voltage regulator
circuit that could effect performance
Figure 16 shows the locations of the LEDs.
Item Description LED Color
A CPU LED Red
B VR LED Red

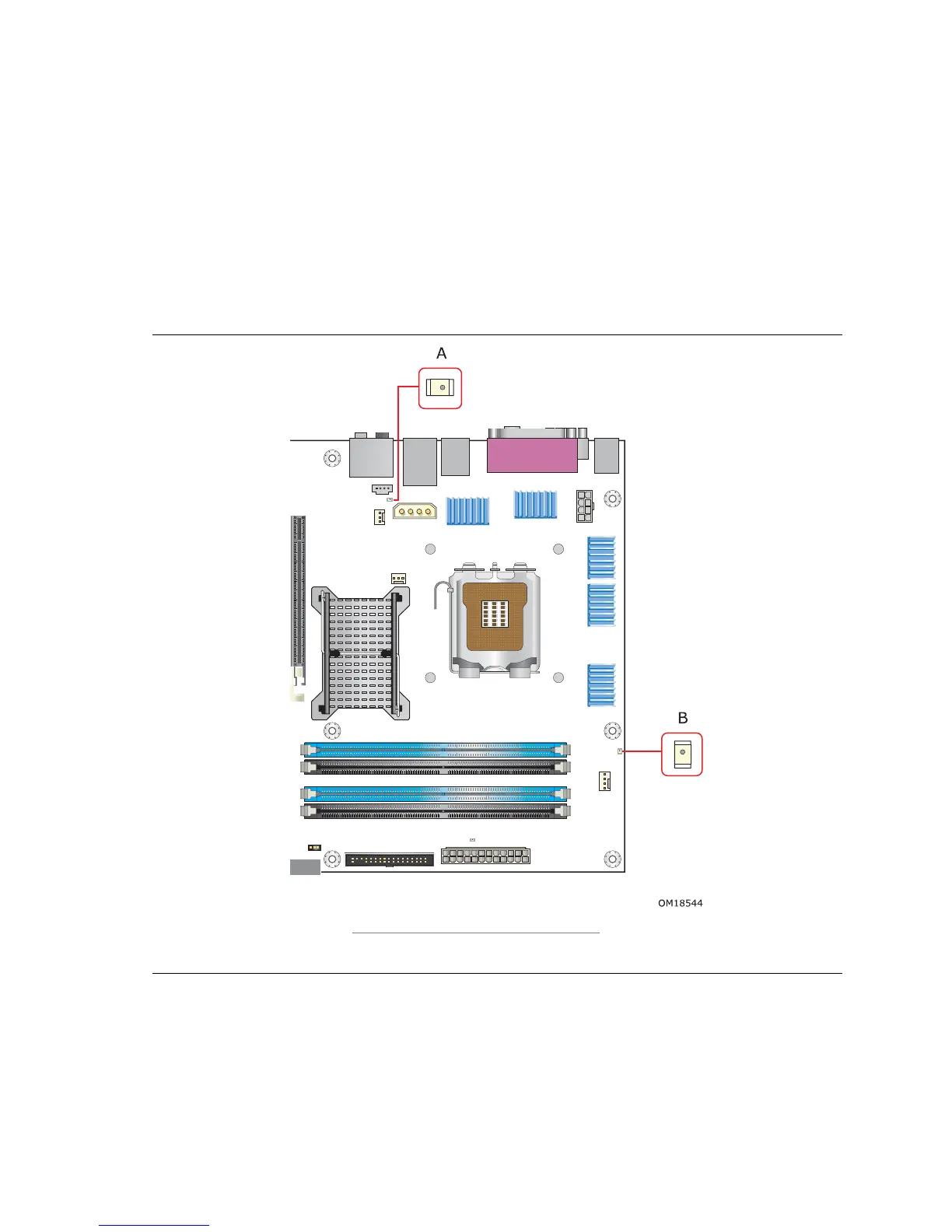

Figure 16. Location of the CPU and Processor Voltage Regulator LEDs
