Intel Desktop Board D975XBX2 Technical Product Specification
38
1.12.2 Thermal Monitoring

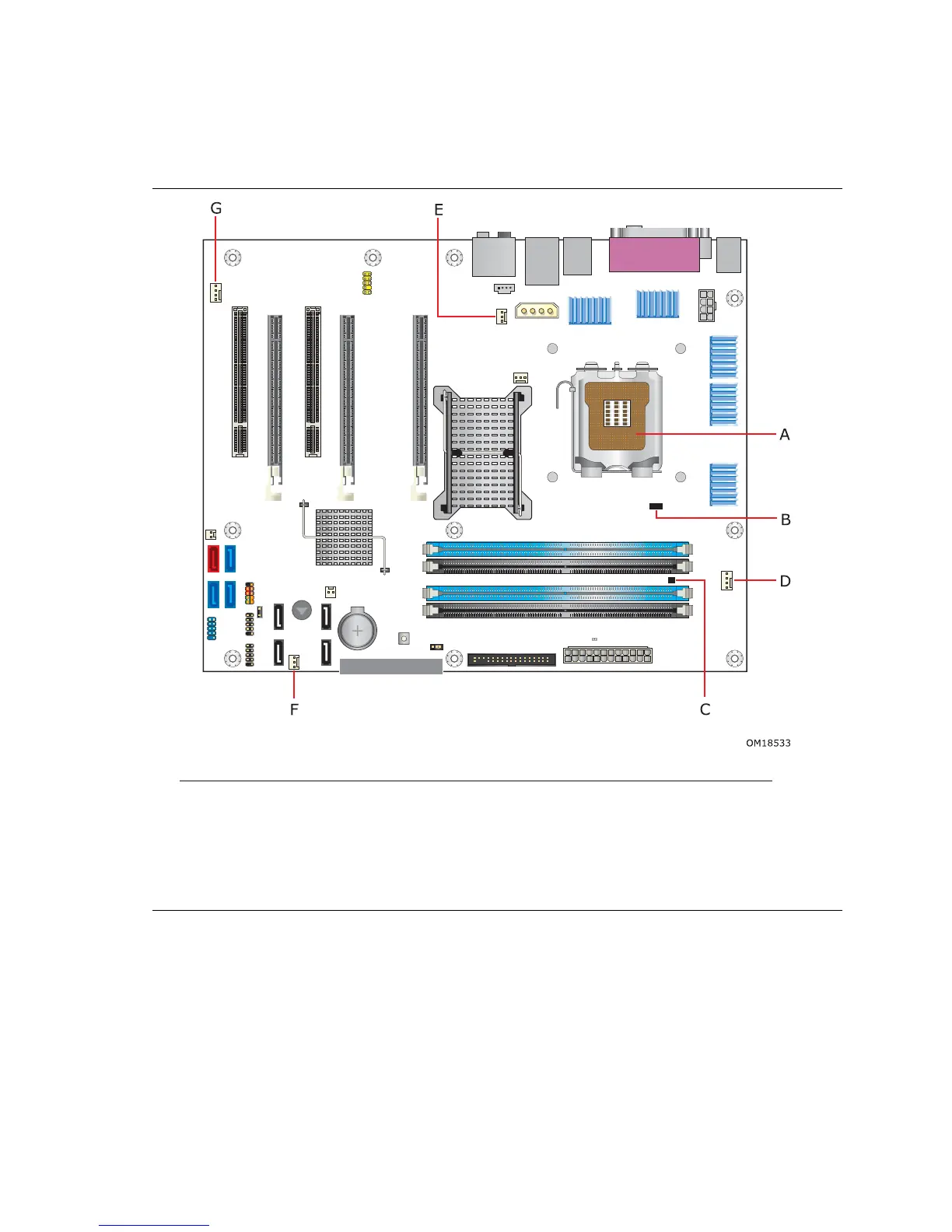

Figure 13 shows the location of the sensors and fan headers.
Item Description
A Thermal diode, located on processor die
B Ambient temperature sensor, internal to hardware monitoring and fan control ASIC
C Remote ambient temperature sensor
D Processor fan header
E Rear chassis fan header
F Front chassis fan header
G Auxiliary chassis fan header
Figure 13. Sensors and Fan Connectors
