2.7.2.4 Front Panel Header
This section describes the functions of the front panel header. Table 29 lists the signal
names of the front panel header.
Figure 21 is a connection diagram for the front panel
header.
Table 29. Front Panel Header
Pin Signal In/
Out
Description Pin Signal In/
Out
Description
Hard Drive Activity LED
[Orange]
Power LED
[Green]
1 HD_PWR Out Hard disk LED pull-up
to +5 V
2 HDR_BLNK_
GRN
Out Front panel green
LED
3 HAD# Out Hard disk active LED 4 HDR_BLNK_
YEL
Out Front panel yellow
LED
Reset Switch
[Blue]
On/Off Switch
[Red]
5 Ground Ground 6 FPBUT_IN In Power switch
7 FP_RESET# In Reset switch 8 Ground Ground
Power Not Connected
9 +5 V Power 10 N/C Not connected
OM18331
Hard Drive
Activity LED
Reset
Switch
+5 V DC
N/C
Power
Switch
+
-
+
-
1
9
87
65
4
2
3
Dual-
colored
Power LED
Single-
colored
Power LED
+
-

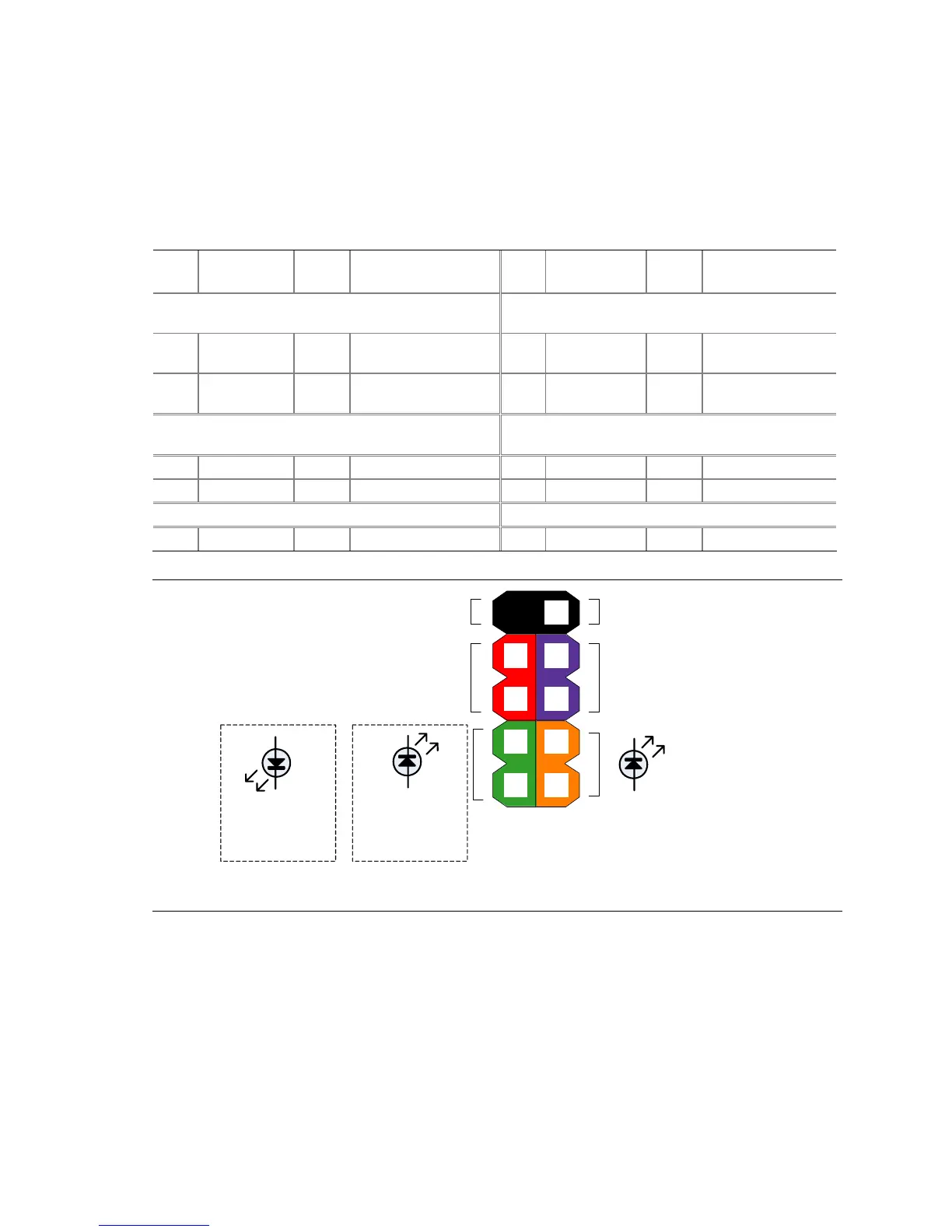

Figure 21. Connection Diagram for Front Panel Header
