2.7.1.2 Back Panel Connectors For 6-Channel (5.1) Audio
Subsystem

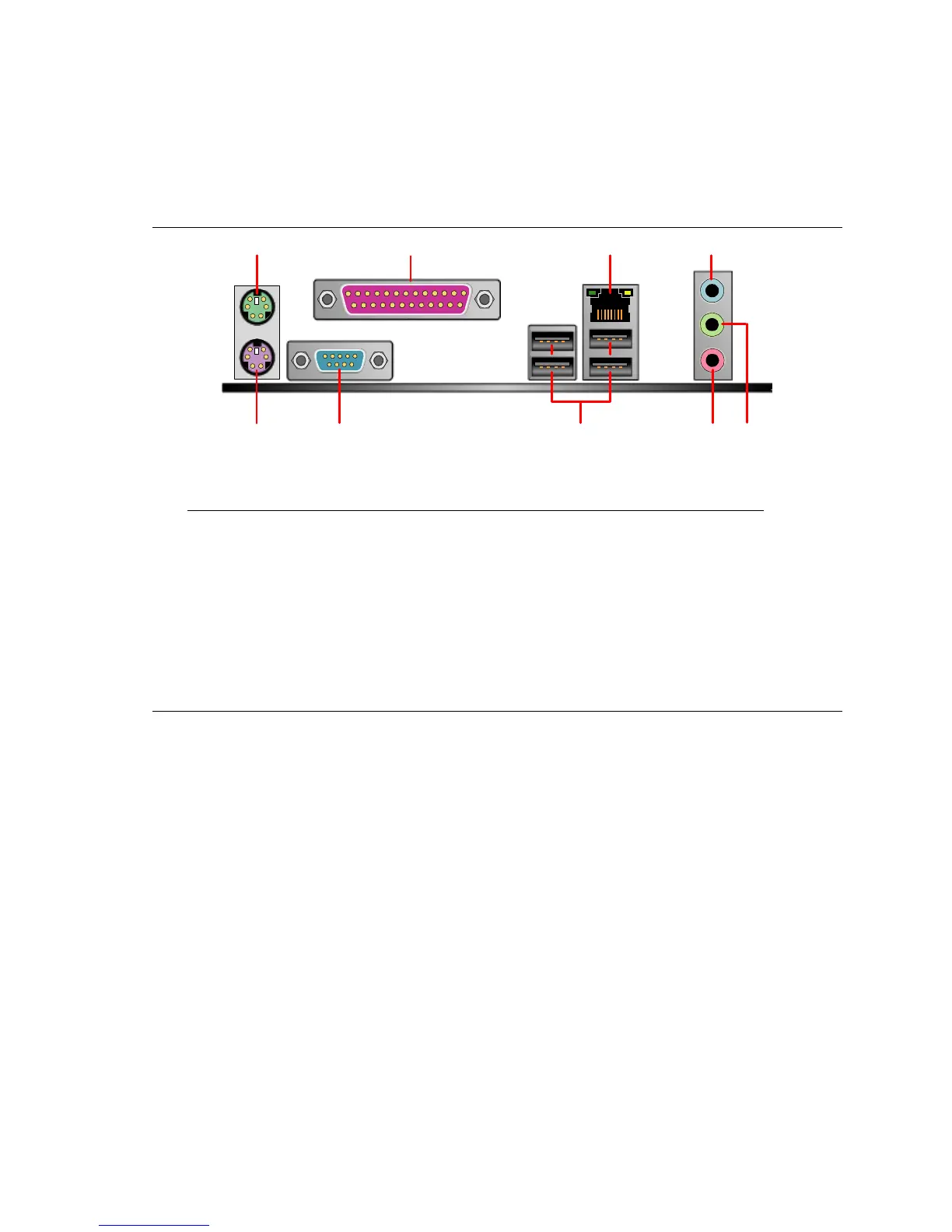

Figure 19 shows the location of the back panel connectors for boards equipped with the
6-channel (5.1) audio subsystem.
B
CE
HI
A
DF
G
OM18536
Item Description
A
PS/2 mouse port
B
PS/2 keyboard port
C
Serial port A
D
Parallel port
E USB ports (four)
F
LAN
G
Audio line in/Retasking Jack C
H Mic in/Retasking Jack B
I
Front left/right channel audio out/Two channel audio line out/Retasking Jack D
Figure 19. Back Panel Connectors for 6-Channel (5.1) Audio Subsystem
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
