1.13.2.6 Wake from USB
USB bus activity wakes the computer from ACPI S1 or S3 states.
NOTE
Wake from USB requires the use of a USB peripheral that supports Wake from USB.
1.13.2.7 Wake from PS/2 Devices
PS/2 device activity wakes the computer from an ACPI S1 or S3 state.
1.13.2.8 PME# Signal Wake-up Support
When the PME# signal on the PCI Conventional bus is asserted, the computer wakes
from an ACPI S1, S3, S4, or S5 state (with Wake on PME enabled in the BIOS).
1.13.2.9 WAKE# Signal Wake-up Support
When the WAKE# signal on the PCI Express bus is asserted, the computer wakes from
an ACPI S1, S3, S4, or S5 state.
1.13.2.10 +5 V Standby Power Indicator LED
The +5 V standby power indicator LED shows that power is still present even when the
computer appears to be off.

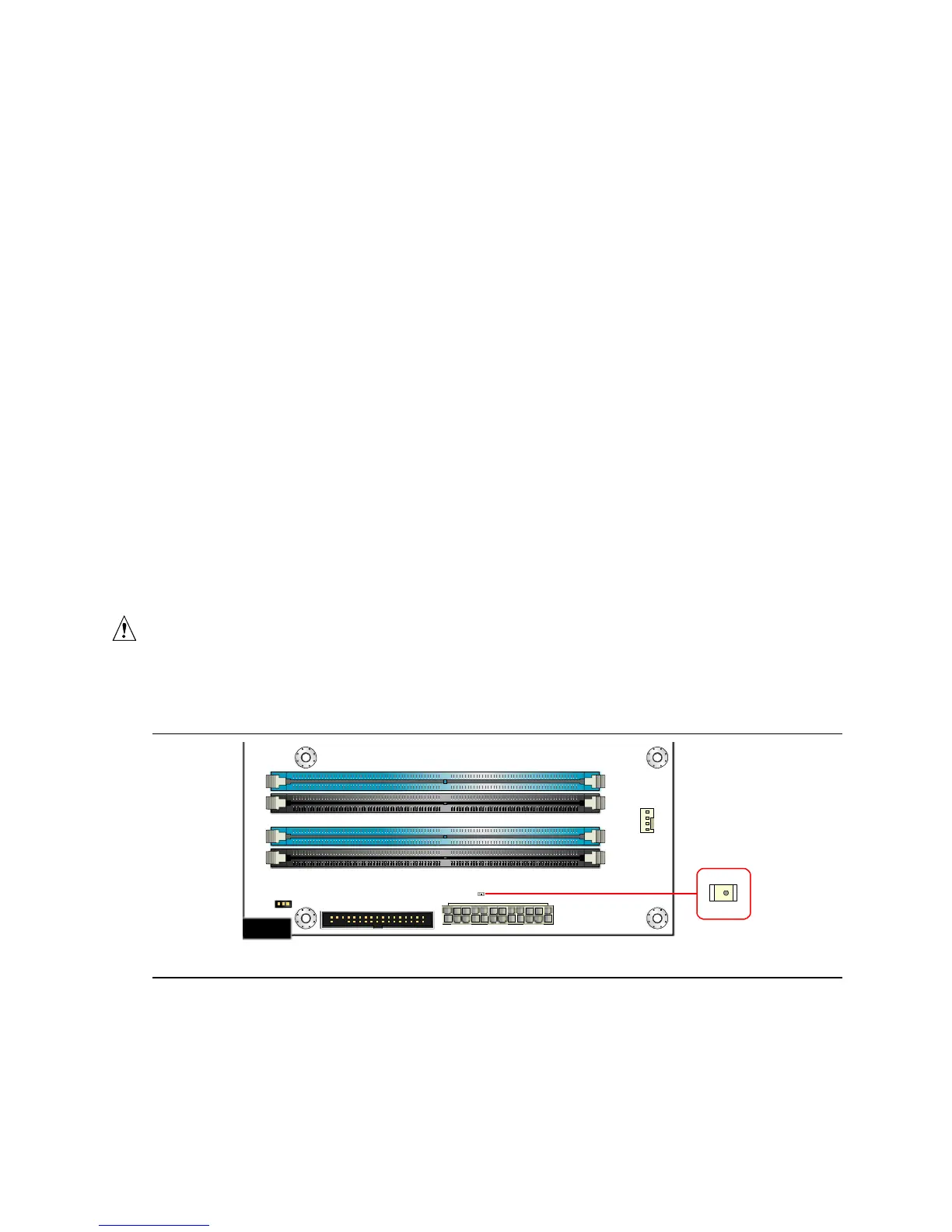

Figure 14 shows the location of the standby power
indicator LED on the D975XBX2 board.
CAUTION
If AC power has been switched off and the standby power indicator is still lit,
disconnect the power cord before installing or removing any devices connected to the
board. Failure to do so could damage the board and any attached devices.
OM18534
Figure 14. Location of the Standby Power Indicator LED
