Technical Reference
77
Item Description
A Intel
82801G ICH7-R/ICH7-DH
B Intel
82975X MCH
C Processor voltage regulator area
D Processor

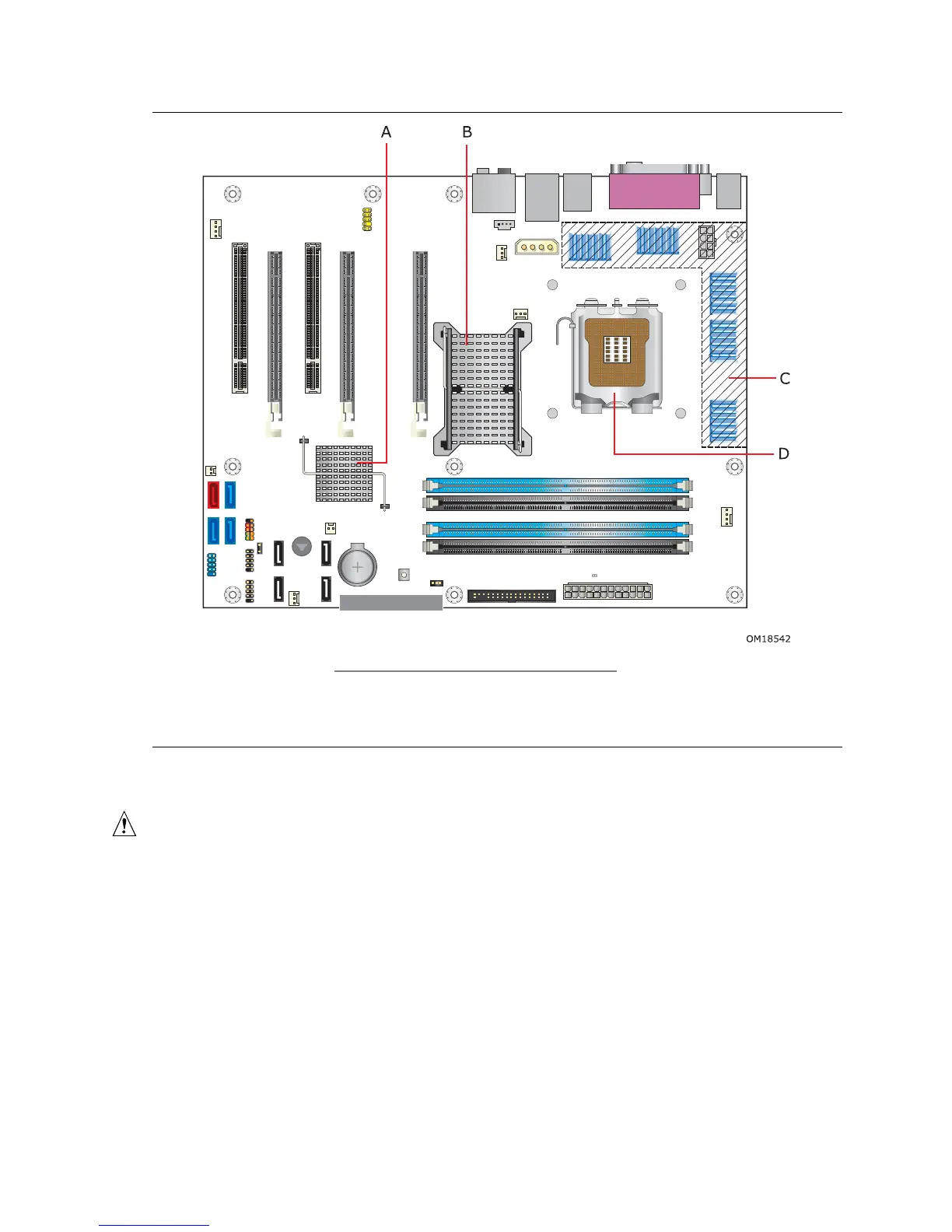

Figure 28. Localized High Temperature Zones
CAUTION
Ensure that the ambient temperature does not exceed the board’s maximum operating
temperature. Failure to do so could cause components to exceed their maximum case
temperature and malfunction. For information about the maximum operating
temperature, see the environmental specifications in Section
2.13.
