Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
16

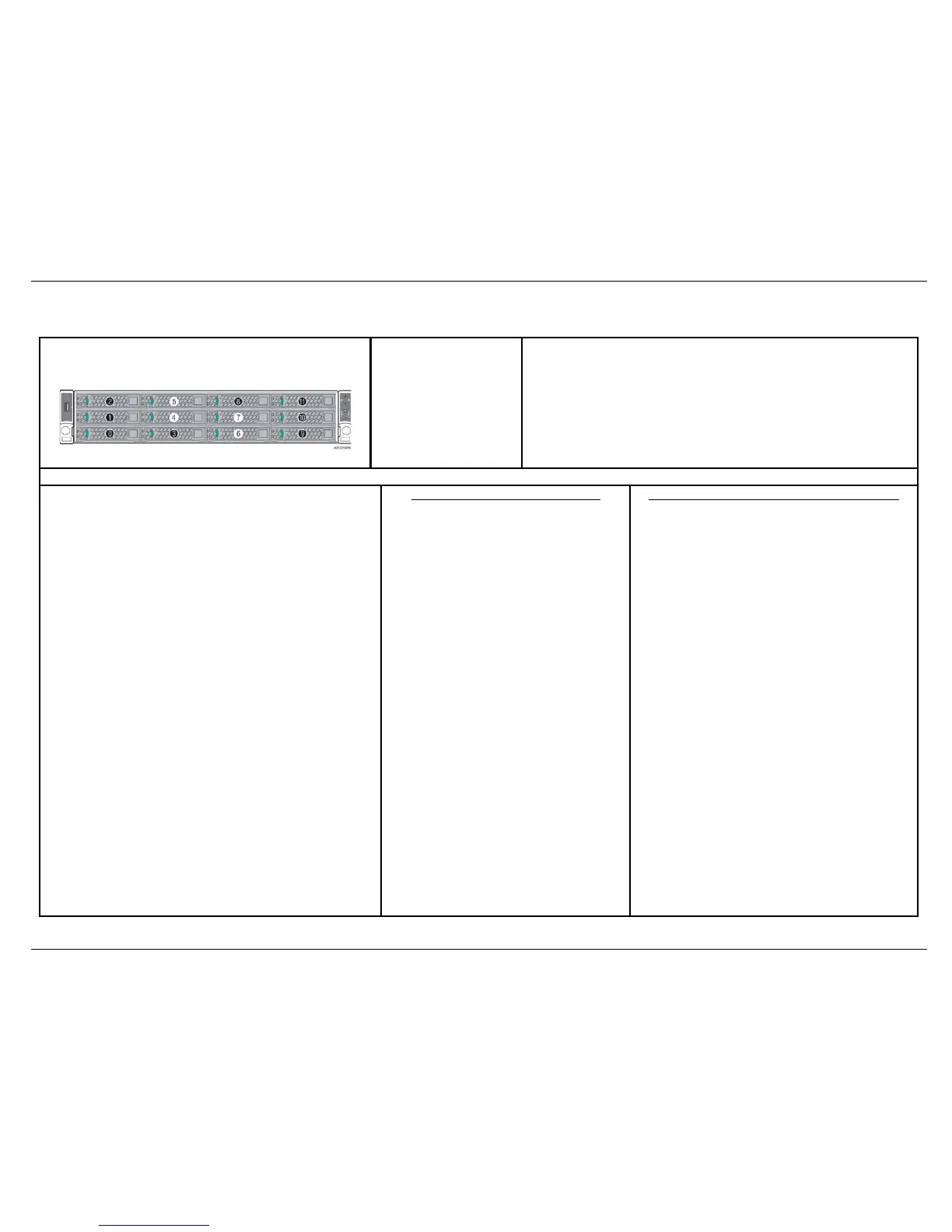

Intel Product Code (iPC):
R2312WTXXX
2U – 12 x 3.5” HDD or 12 x 2.5” SSD front mount drives
Order Code Information:
MM# - 936022
UPC - 00735858288729
EAN - 5032037068000
MOQ - 1
Product Type: Chassis only
Chassis Form Factor: 2U rack mount
Chassis dimensions: L=712mm, W=439mm, H=89mm
Packaged Gross Weight: 21.2 Kgs, 46.7 Lbs
Un-packaged Net Weight: 14.4 Kgs, 32.0 Lbs
Outer Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements
Intel product code R2312WTXXX includes the following
components:
(1) – 2U Chassis with Quick Reference Label affixed to top cover
(1) – Air duct
(6) – Hot swap system fans – iPC FR2UFAN60HSW
(2) – Chassis Handles (1 set) installed, with Integrated control panel
& USB Port - iPC A2UHANDLKIT
(12) – 3.5” Hot-swap drive bays with drive carriers and drive blanks
• Includes (1) 12 Gb SAS backplane – iPC
F2U12X35S3HSBP – (SAS Data cables sold seperately)
• Includes (12) 3.5” hot swap drive carriers – iPC
FXX35HSCAR
(1) – Backplane I2C cable – iPN G92510-00x
(1) – Backplane power cable – iPN G92685-00x
(1) – Internal fixed mount SSD power cable – iPN H23901-00x
(2) – CPU heatsinks – iPC FXXCA84X106HS
(2) – CPU heat sink Mylar Spacer inserts – iPN H28618-00x
(2) – Riser Card mouting brackets supporting up to 3 riser cards –
(risers cards sold seperately – See chapter 5.7.2)
(1) – Power Supply Bay blank insert
(16) – DIMM slot blanks - iPN H43597-00x
(1) – 3x RMFBU Mounting Bracket – iPN H18238-00x
(2) – AC Power Cord retention strap assembly – iPN H23961-00x
Server Board and Riser Card mounting screws
Spares for each screw type included
Required Items – Sold Separately:
• Intel® Server Board S2600WT (choose one)
o iPC S2600WT2 – with 1G LOM
o iPC S2600WTT – with 10G LOM
• Power supply module(s) – (Choose one
type) two common modules required for
redundancy
o iPC AXX1100PCRPS – 1100W AC
Power Supply Module
o iPC FXX750PCRPS – 750 W AC
Power Supply Module
o iPC AXX750DCCRPS – 750 W DC
Power Supply Module
(Available Late
Q2 2015)
• Power Cord(s) – See chapter 5.10
• Rack Mount Kit – See chapter 5.11
• 1 or 2 Intel® Xeon® Processor E5-2600 v3
product family
• ECC DDR4 memory (RDIMM or LRDIMM)
Optional Intel Accessories – Sold Separately:
• Riser Cards – Up to three riser cards can be
installed concurrently – See chapter 5.7
o Risers Slots #1 and #2 – Available riser cards
include:
- iPC A2UL8RISER2 – (3) x8 PCIe* 3.0 slots
- iPC A2UL16RISER2 – (1) x16 PCIe* 3.0 slot + (1)
x8 PCIe* 3.0 slot
o Riser Slot #3 – Available riser cards include:
- iPC A2UX8X4RISER – (1) Low profile x8 PCIe*
3.0 slot + (1) LP x8 PCIe* 2.0 slot
• Rear Storage Bay Option – See chapter 5.3
o iPC A2UREARHSDK – Up to (2) hot swap SATA
SSDs
• Intel® I/O Module – See chapter 5.8 for options
• Intel® SAS RAID Card / Module – See section 5.9 for
options
• SAS/SATA Data cables – Cable selection is
dependant on desired storage option. See Chapter
4.2.4 for available cable options
• iPC A2UBEZEL – Lockable
front system bezel
• iPC AXXRMM4LITE – Intel® Remote Management
Module Lite key. For advanced management
features
• Storage Drives
See Chapter 5 for all available accessory options.
