Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
46

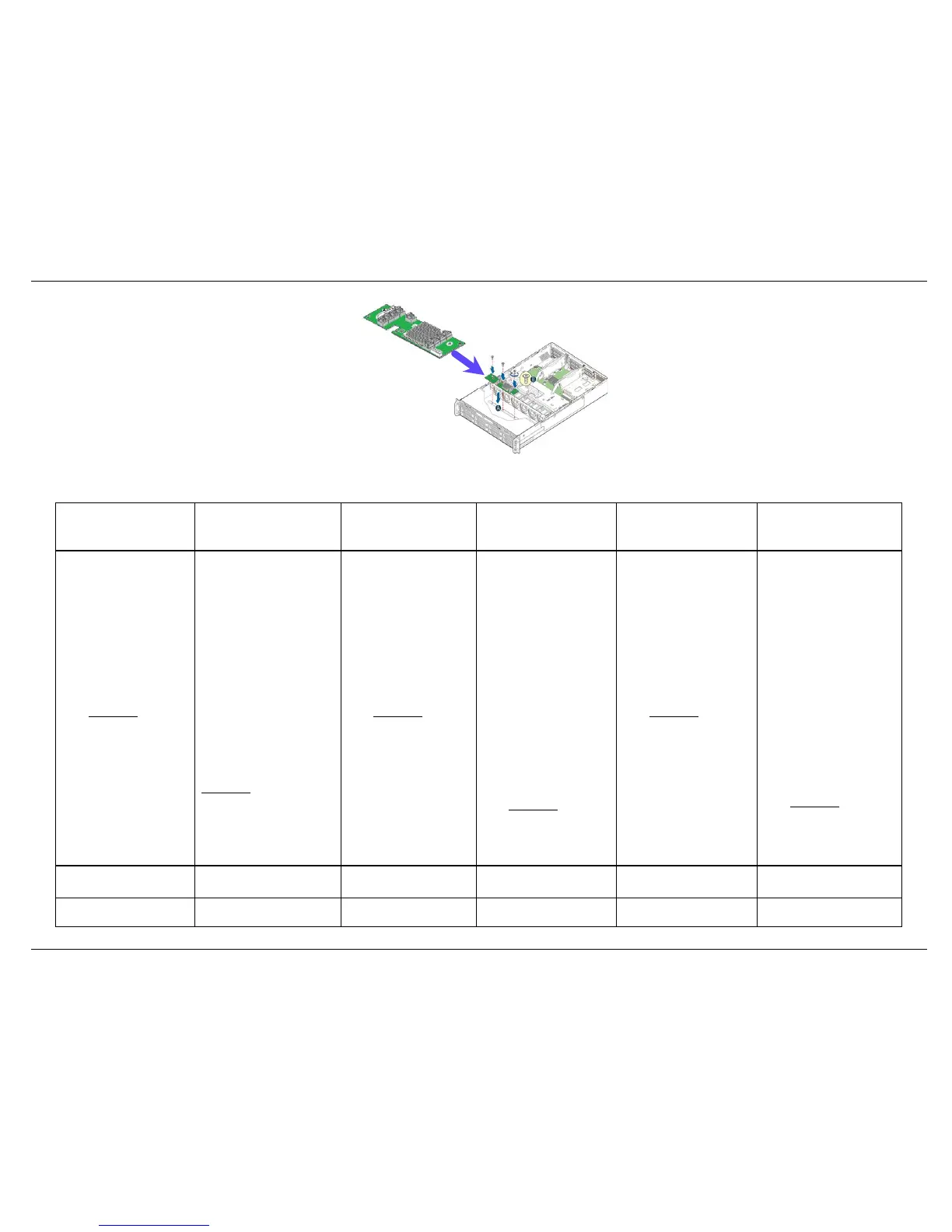

Table 10. 2U 2.5” Front Mount Drive Configurations with SAS Expander – SAS Data Cable Guide
Mezzanine 12Gb SAS
ROC Module to 12 Gb
SAS Expander
12Gb SAS RAID PCIe*
add-in card to 12 Gb
SAS Expander
Mezzanine 6 Gb SAS
ROC Module to 12 Gb
SAS Expander
6Gb SAS RAID PCIe*
add-in card to 12 Gb
SAS Expander
Mezzanine 6 Gb SAS
ROC Module to 6 Gb
SAS Expander
6Gb SAS RAID PCIe*
add-in card to 6 Gb
SAS Expander
12 Gb SAS Expander
RES3TV360 installed:
SAS Mezz -> Exp 0-3 (G)
730mm HD -- HD
SAS Mezz -> Exp 4-7 (H)
730mm HD -- HD
From data above, select
appropriate cable kits
from list below:
AXXCBL730HDHD
(2) 730mm cables
Included in all 2.5” L6)
12 Gb SAS Expander
RES3TV360 installed:
From Riser #1:
SAS PCIe -> Exp 0-3 (G)
650mm HD -- HD
SAS PCIe -> Exp 4-7 (H)
650mm HD -- HD
From Riser #2:
SAS PCIe -> Exp 0-3 (G)
730mm HD -- HD
SAS PCIe -> Exp 4-7 (H)
730mm HD -- HD
From data above, select
appropriate cable kits from
list below:
AXXCBL650HDHD
AXXCBL730HDHD
(2) 730mm cables Included
in all 2.5” L6)
12 Gb SAS Expander
RES3TV360 installed:
SAS Mezz -> Exp 0-3 (G)
730mm HD -- MS
SAS Mezz -> Exp 4-7 (H)
730mm HD -- MS
From data above, select
appropriate cable kits
from list below:
AXXCBL730HDMS
12 Gb SAS Expander
RES3TV360 installed:
From Riser #1:
SAS PCIe -> Exp 0-3 (G)
650mm HD --MS
SAS PCIe -> Exp 4-7 (H)
650mm HD --MS
From Riser #2:
SAS PCIe -> Exp 0-3 (G)
730mm HD --MS
SAS PCIe -> Exp 4-7 (H)
730mm HD -- MS
From data above, select
appropriate cable kits
from list below:
AXXCBL650HDMS
AXXCBL730HDMS
6 Gb SAS Expander
RES2CV360 installed:
SAS Mezz -> Exp 0-3 (A)
730mm MS -- MS
SAS Mezz -> Exp 4-7 (B)
730mm MS -- MS
From data above, select
appropriate cable kits
from list below:
AXXCBL730MSMS
6 Gb SAS Expander
RES2CV360 installed:
From Riser #1:
SAS PCIe -> Exp 0-3 (G)
650mm MS --MS
SAS PCIe -> Exp 4-7 (H)
650mm MS --MS
From Riser #2:
SAS PCIe -> Exp 0-3 (G)
730mm MS --MS
SAS PCIe -> Exp 4-7 (H)
730mm MS -- MS
From data above, select
appropriate cable kits
from list below:
AXXCBL650MSMS
AXXCBL730MSMS
12 Gb SAS Expander
to drive bays
12 Gb SAS Expander to
drive bays
12 Gb SAS Expander
to drive bays
12 Gb SAS Expander
to drive bays
6 Gb SAS Expander to
drive bays
6 Gb SAS Expander to
drive bays
Use cables included in
SAS Expander Kit
Use cables included in SAS
Expander Kit
Use cables included in
SAS Expander Kit
Use cables included in
SAS Expander Kit
Cable Kit Required:
iPC – AXXCBLEXPHDMS
Cable Kit Required:
iPC – AXXCBLEXPHDMS
