Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
55

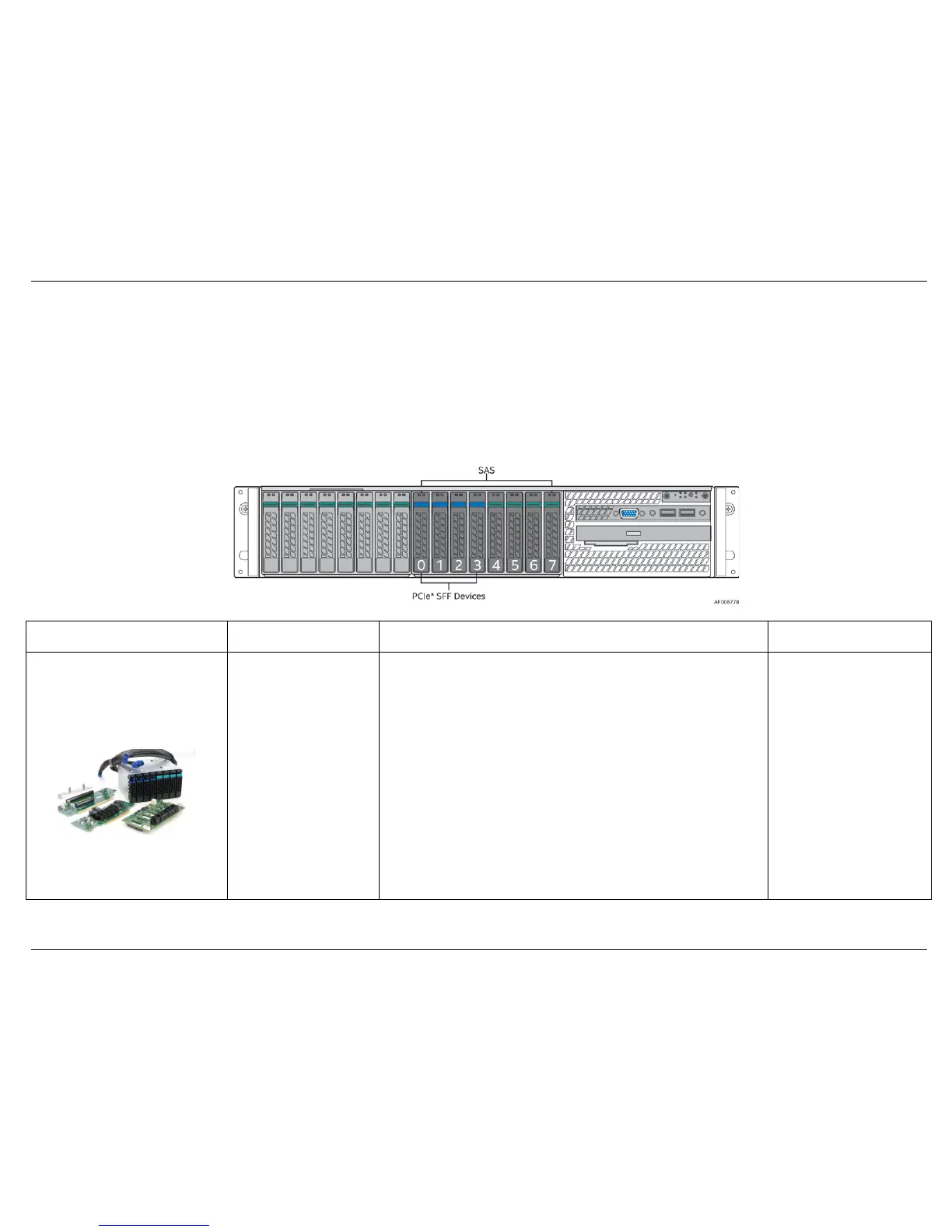

5.2 2U 8x2.5” Combo PCIe* SFF (NVMe) SSD / SAS Backplane – Intel® Accessory Kit A2U44X25NVMEDK
• The 8x2.5” combo backplane kit is capable of supporting a combination of both SAS devices and up to four PCIe* SFF (Small Form Factor) (NVMe) SSD drives
• All eight drive connectors are capable of supporting a SAS device, but only four include SFF8639 connectors that can support PCIe* SFF (NVMe) SSDs
• The PCIe* x16 interface add-in card MUST be installed in a x16 riser card (included), and is only supported in the Riser #2 slot of the server board.
• This kit is only supported in dual processor configurations
• The 2U system is limited to supporting only one combo backplane kit in addition to one or two other backplane options
• The combo backplane module can only be supported in the first (left) drive bay when no other backplane module is installed
• Due to thermal and power limits associated with 16 x 2.5” and 24 x 2.5” front drive configurations, the combo backplane module can only be supported in
the second (middle) drive bay
Intel Product Code Order Information
Product Description Product Type
iPC – A2U44X25NVMEDK
MM# – 936253
UPC – 00735858288880
EAN – 5032037068161
MOQ – 1
2U 8x2.5” Combo PCIe* SFF (NVMe) SSD / SAS Backplane Kit
Kit Includes:
(1) 8x2.5” Drive Bay Assembly with backplane
(4) SAS / SATA Hot Swap Drive Carriers (Green Latch)
(4) PCIe* SFF SSD (NVMe) Hot Swap Drive Carriers (Blue Latch)
(2) Dual PCIe* Port Cables
(1) PCIe x16 Add-in card
(1) 2-slot PCIe Riser card PCBA and mounting screws
(1) I2C jumper cable (used in dual backplane configurations)
(1) Installation Guide
Required (Sold Separately):
SAS / SATA Data cables - See sections 5.2.1& 5.2.2
• 2U Accessory Kit
See the Intel® Server System R2000WT Technical Product Specification for additional information.
