4. SAS / SATA Data Cable Guide
By default, all L6 integrated system will include SAS / SATA data cables routed from the front hot swap backplane to the on-board SATA controller connectors. SAS
data cables may need to be ordered seperately when adding a SAS RAID module or SAS RAID PCIe* add-in card to an integrated system SKU.
SAS / SATA data cables are NOT included with any of the chassis only building block SKUs. They must be ordered seperately to match the desired system
configuration.
4.1 SAS / SATA Data Cable Connector Types

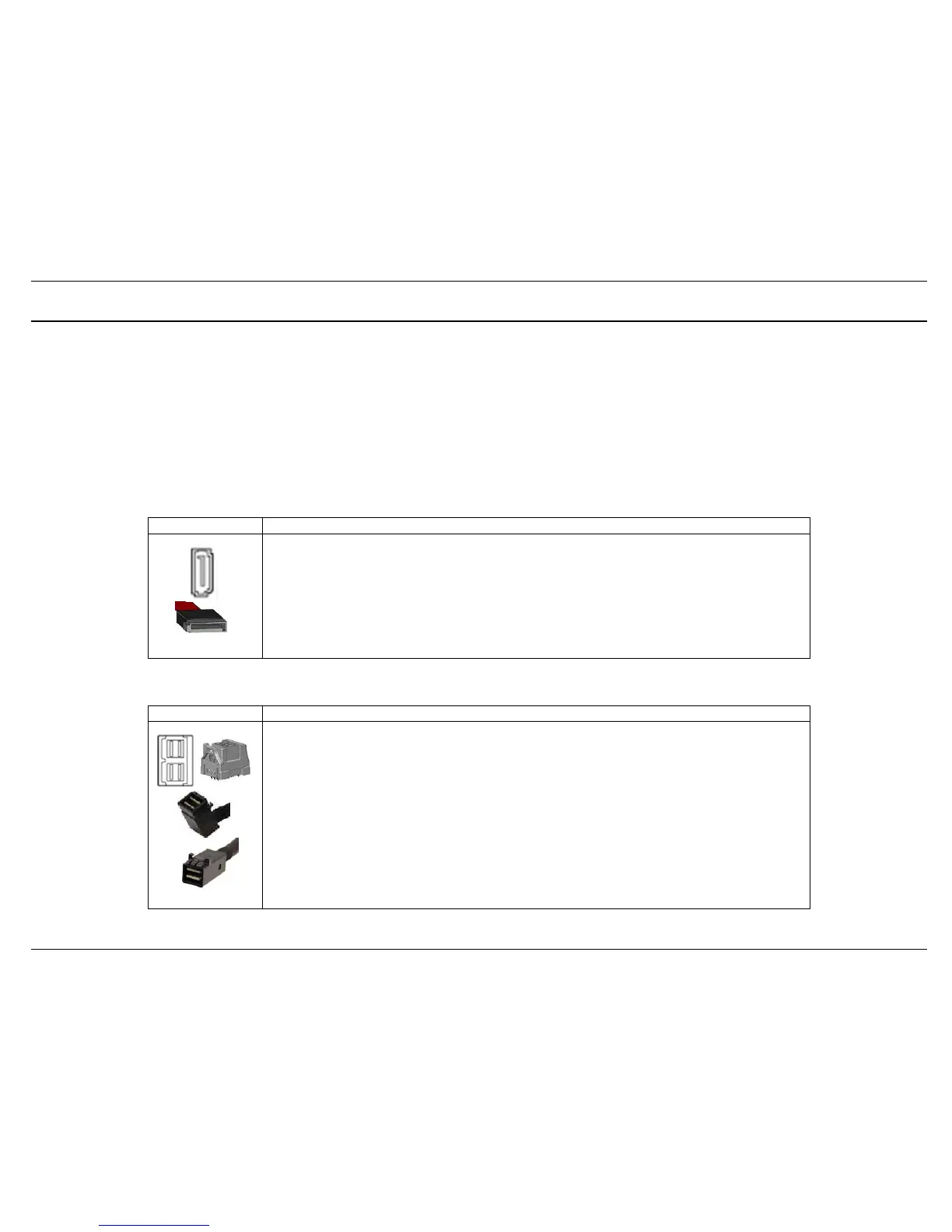

There are three storage interface connector types used within this product family:
Single Port SATA Connector
Description
7-pin Single Port SATA
Support for up to 6 GB/sec SATA devices
Where used:
- On the server board – (2) single port SATA connectors (SATA 4, SATA 5)
- 2U Rear Mount Hot-Swap Backplane (iPC A2UREARHSDK)
- SATA Optical Drive – CD/DVD
- SATA DOM
Multiport MiniSAS HD Connectors
Description
SFF-8643
• Support for up to 12 Gb/Sec SAS and 6 Gb/sec SATA devices
• PCIe* (NVMe) SFF support associated with Intel Accessory Kits A1U44X25NVMEDK &
A2U44X25NVMEDK
Where used:
- On the server board – (2) 4-port SATA connectors (SATA 0-3, sSATA 0-3)
- All 12 Gb/sec SAS capable hot swap backplanes
- All 12 Gb/sec SAS RAID Controllers
- All 12 Gb/sec SAS Expander Cards
