Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
34

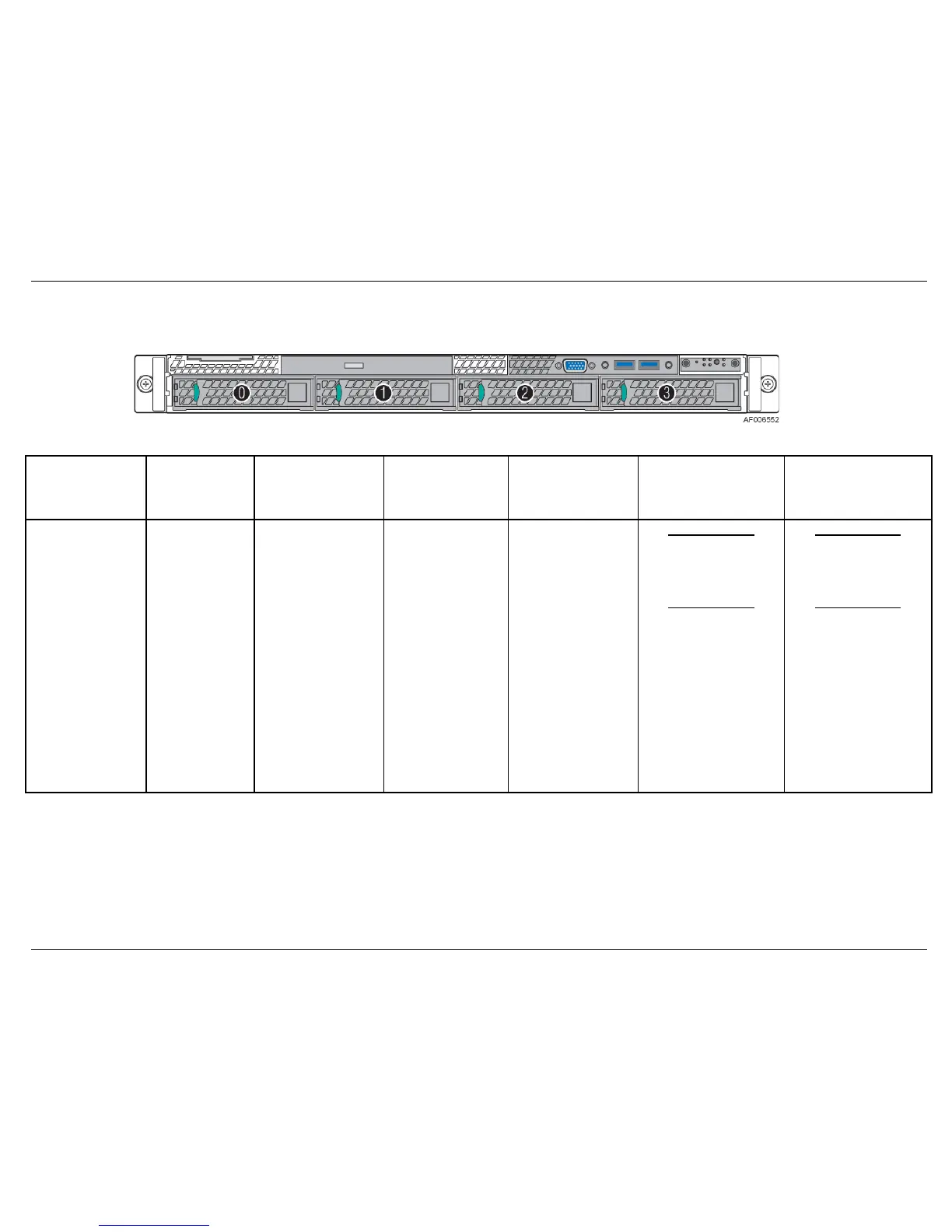

4.2.1 1U 4 x 3.5” – R1304WTxxx SAS / SATA Data Cable Guide
System
Configuration
Drive Support
Cables for On-board
Multi-port SATA
Ports to Baclpane
Cables for
Mezzanine 12 Gb
SAS ROC Module to
Backplane
Cables for
Mezzanine 6 Gb SAS
RAID module to
Backplane
Cables for 12 Gb SAS
RAID PCIe* add-in card
to Backplane
Cables for 6 Gb SAS
RAID PCIe* add-in card
to Backplane
R1304WTxxx
R1304WTTGS
R1304WT2GS
4 x 3.5”
12 Gb SAS capable
Cable Connections:
SATA -> BP 0-3
800 mm HR --- HD
From data above, select
appropriate cable kit
from list below:
AXXCBL1UHRHD
Cable included with L6
Integrated systems
Cable Connections:
SAS Mezz -> BP 0-3
800 mm HD --- HD
From data above,
select appropriate
cable kit from list
below:
AXXCBL800HDHD
Cable Connections:
SAS Mezz -> BP 0-3
800 mm HD --- MS
From data above, select
appropriate cable kit
from list below:
AXXCBL800HDMS
From Riser #1
Cable Connections:
SAS PCIe -> BP 0-3 **
875 or 950 mm HD --- HD
From Riser #2
Cable Connections:
SAS PCIe -> BP 0-3 **
730 or 875 mm HD --- HD
From data above, select
appropriate cable kits from
list below:
See ** note below
AXXCBL730HDHD
AXXCBL875HDHD
AXXCBL950HDHD
From Riser #1
Cable Connections:
SAS PCIe -> BP 0-3 **
875 or 950 mm HD --- MS
From Riser #2
Cable Connections:
SAS PCIe -> BP 0-3 **
730 or 875 mm HD --- MS
From data above, select
appropriate cable kits from
list below:
See ** note below
AXXCBL730HDMS
AXXCBL875HDMS
AXXCBL950HDMS
** 1 or 2 cable lengths may be specified for a PCIe add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter
cable is specified. Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.
