Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
17

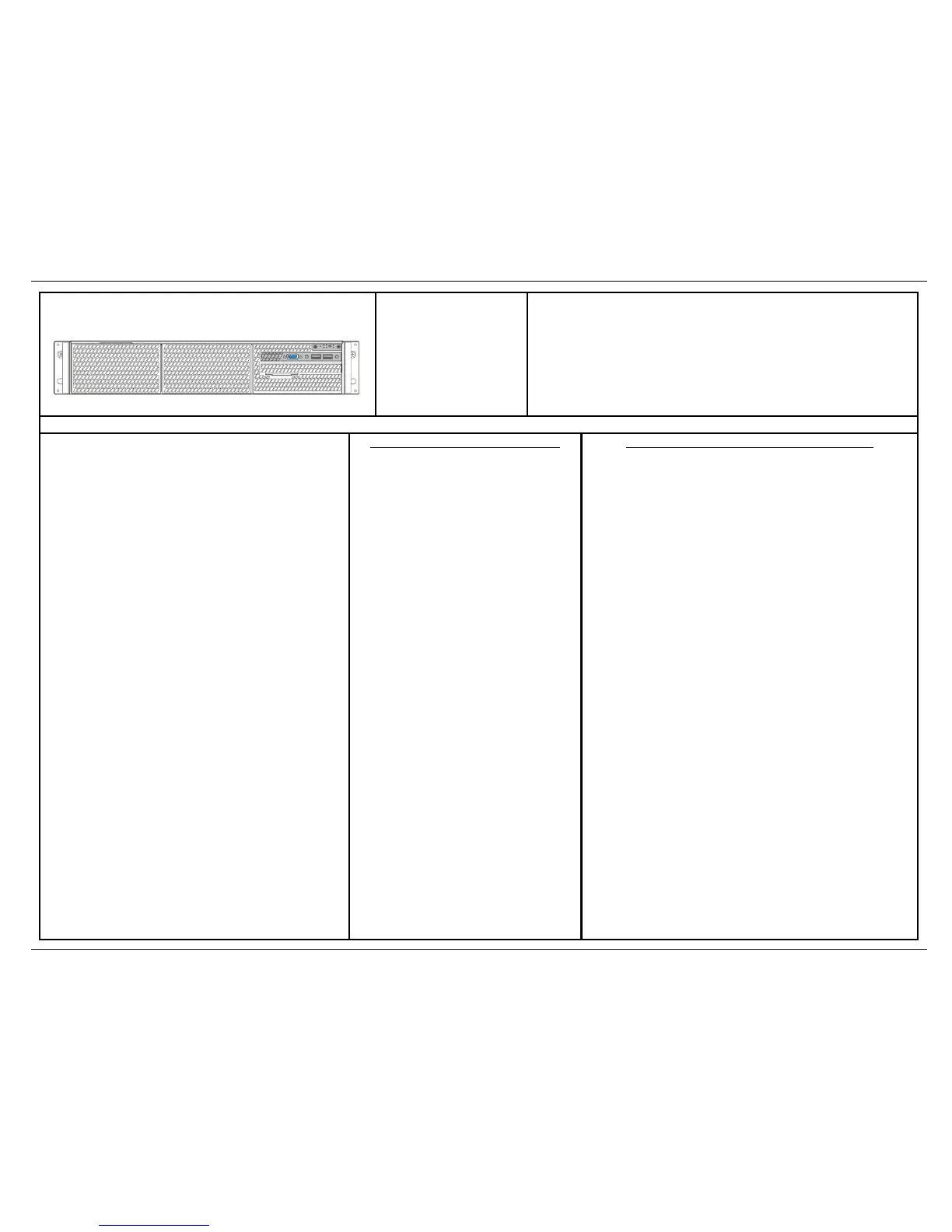

Intel Product Code (iPC):
R2000WTXXX
2U – No front mount drives
Order Code Information:
MM# - 936021
UPC - 00735858287968
EAN - 5032037067515
MOQ - 1
Product Type: Chassis only
Chassis Form Factor: 2U rack mount
Chassis dimensions: L=712mm, W=439mm, H=89mm
Packaged Gross Weight: 19 Kgs, 41.9 Lbs
Un-packaged Net Weight: 13.3 Kgs, 29.3 Lbs
Outer Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements
Intel product code R2000WTXXX includes the following
components:
(1) – 2U Chassis with Quick Reference Label affixed to top
cover
(1) – Air duct
(6) – Hot swap system fans – iPC
FR2UFAN60HSW
(1) – Pre-installed Standard control panel assembly – (board
only iPC FXXFPANEL
(1) – Pre-installed Front I/O Panel assembly (1 x VGA and 2 x
USB) (w/internal attach cables)
(1) – SATA Optical drive bay with filler panel and optical
drive mounting latch
(1) – I2C cable - server board to backplane – iPN G41809-
00x (backplane sold separately)
(1) – Internal fixed mount SSD / optical drive power cable -
iPN H23901-xxx
(2) – Riser Card mouting brackets supporting up to 3 riser
cards (riser cards sold seperately – see chapter 5.7.2)
(2) – CPU heatsinks – iPC FXXCA84X106HS
(2) – CPU heat sink Mylar Spacer inserts – iPN H28618-00x
(1) – Power supply bay blank insert
(16) – DIMM slot blanks – iPN H43597-00x
(2) – Rack chassis handles (1 set) installed – iPN H18229-xxx
(1) – 3x RMFBU Mounting Bracket – iPN H18238-00x
(2) – AC Power Cord retention strap assembly – iPN
H23961-00x
Server Board and Riser Card mounting screws
Spares for each screw type included
Required Items – Sold Separately:
• Intel® Server Board S2600WT (choose
one)
o iPC S2600WT2 – with 1G LOM
o iPC S2600WTT – with 10G LOM
• Power supply module(s) – (Choose one
type) two common modules required for
redundancy
o iPC AXX1100PCRPS – 1100W AC
Power Supply Module
o iPC FXX750PCRPS – 750 W AC
Power Supply Module
o iPC AXX750DCCRPS – 750 W DC
Power Supply Module
(Available
Late Q2 2015)
• Power Cord(s) – See chapter 5.10
• Rack Mount Kit – See chapter 5.11
• 1 or 2 Intel® Xeon® Processor E5-2600
v3 product family
• ECC DDR4 memory (RDIMM or LRDIMM)
Optional Intel Accessories – Sold Separately
• Front storage bay option
o Upto (3) 8 x 2.5” drive bay modules can be installed:
 iPC A2U8X25S3HSDK – SAS/SATA
 iPC A2U8X25S3DPDK – Dual port SAS
 iPC A2U44X25NVMEDK – PCIe* SSD SFF (NVMe) + SAS
 (Note) for a 24 x 2.5” drive configuration, system will
lose front video and optical drive support, and system
must include the 2U storage front panel in Storage
handle kit iPC A2UHANDLKIT
o iPC A2U8X35S3HSDK – 8 x 3.5” drive + Optical drive bay
 Re-uses control panel and front I/O panel. Includes
SAS/SATA data cables and peripheral power cable
• Rear Storage Bay Option
o iPC A2UREARHSDK – Up to (2) hot swap SATA SSDs
• Riser Cards – Up to three riser cards can be installed
concurrently
o Risers Slots #1 and #2 – Available riser cards include:
- iPC A2UL8RISER2 – (3) x8 PCIe* 3.0 slots
- iPC A2UL16RISER2 – (1) x16 PCIe* slot + (1) x8 PCIe* slot
o Riser Slot #3 – Available riser cards include:
- iPC A2UX8X4RISER – (1) Low profile x8 PCIe* 3.0 slot + (1)
LP x8 PCIe* 2.0 slot
• SAS/SATA Data cables – Cable selection is dependant on
desired storage option. See Chapter 4 for available cable
options
• Intel® SAS RAID Card / Module – See section 5.9 for options
• Intel® I/O Module – See chapter 5.8 for options
• iPC A2UBEZEL – Lockable
front system bezel
• iPC AXXRMM4LITE – Intel® Remote Management Module Lite
key. For advanced management features
See Chapter 5 for all available accessory options.
