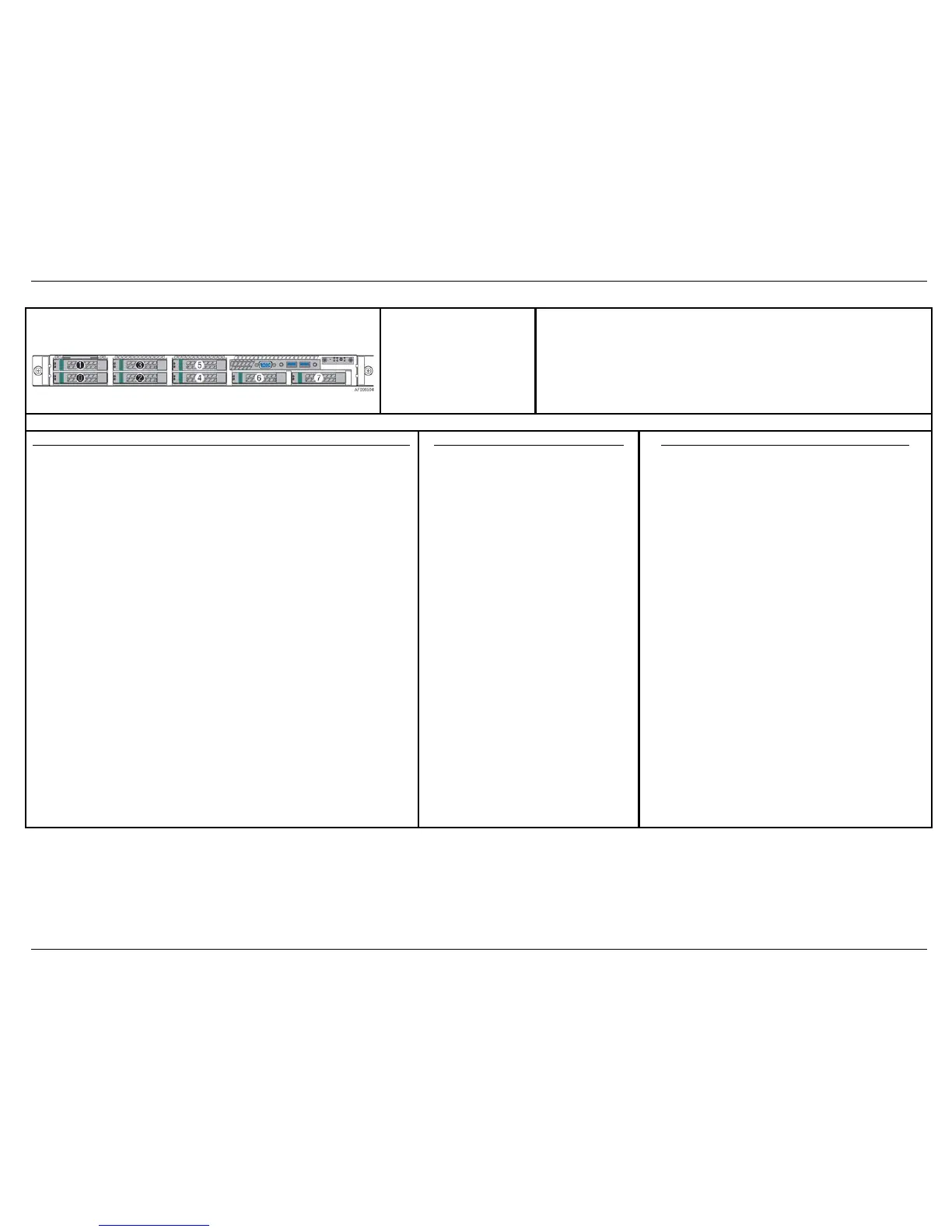

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
23
Product Code (iPC):
R1208WT2GS
1U – 8 x 2.5” front mount drives
Order Code Information:
MM# - 935060
UPC – 00735858288897
EAN – 5032037068178
MOQ – 1
Product Type: L6 Integrated System
Chassis Form Factor: 1U rack mount
Chassis dimensions: L=712mm, W=439mm, H=43.2mm
Packaged Gross Weight: 21.1 Kgs, 46.5 Lbs
Un-packaged Net Weight: 12.9 Kgs, 28.4 Lbs
Outer Box Dimensions: L=983mm, W=577mm, H=260
Product Definition and Configuration Requirements/Options
Intel product code R1208WT2GS includes the following components:
(1) – 1U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WT w/ Dual 1GbE – iPC S2600WT2
(2) – Riser card assembly with single x16 PCIe* 3.0 slot riser card -
F1UL16RISER2
(1) – 750W power supply module - iPC FXX750PCRPS
(1) – Power supply bay blank insert
(2) – AC Power Cord retention strap assembly – iPN H23961-00x
(1) – Air duct
(6) – Dual rotor system fan – iPC FR1UFAN10PW
(1) – Standard control panel assembly (board only – iPC FXXFPANEL)
(1) – Front I/O Panel assembly (1 x VGA and 2 x USB)
• If removed, can be used as an optical drive bay.
• Includes optical drive mounting latch kit – iPN H19168-00x
• Includes optical drive power cable – iPN H23851-00x
(8) – 2.5” Hot-swap drive bays with drive carriers and drive blanks
• Includes (1) 12 Gb SAS backplane – iPC F1U8X25S3HSBP
• Includes (8) 2.5” hot swap drive trays – iPC FXX25HSCAR2
(1) – 730mm SAS/SATA Multiport data cable – iPC AXXCBL730HRHD
(1) – 800mm SAS/SATA Multiport data cable – iPC AXXCBL800HRHD
(1) – Server board to backplane power cable – iPN H38458-00x
(1) – Server board to backplane I2C cable – iPN H39941-00x
(2) – CPU heatsink – iPC FXXCA84X106HS
(8) – DIMM slot blanks – iPN G75158-00x
(2) – Chassis handle (1 set) installed – iPN H19171-00x
Spares for each screw type included
Required Items – Sold Separately:
• Rack Mount Kit – See chapter 5.11 for
available options
• 1 or 2 Intel® Xeon® Processor E5-
2600 v3 product family
• ECC DDR4 memory (RDIMM or
LRDIMM)
• Power Cord(s) – See chapter 5.10
NOTE: L6 Systems shipping from Intel to
North America will include (1) AC power
cord
Optional Intel Accessories – Sold Separately
• iPC FXX750PCRPS – 2nd 750W AC Power supply
module – to support power redundancy
• Intel® 12G SAS RAID module + RMFBU - See chapter
5.9 for available options
• SAS Data cables – Depending on the location of the
SAS Data controller, new data cables may be
necessary. See chapter 4.2.2
• Intel® I/O Module - See chapter 5.8 for available
options
• iPC A1U44X25NVMEDK – (4) PCIe* SSD SFF (NVMe*)
+ (4) SAS support – replaces exising backplane and
requires use of one PCIe* slot. See chapter 5.1
and/or System TPS for details
• iPC A1UBEZEL – Lockable
front system bezel
• iPC AXXRMM4LITE - Intel® Remote Management
Module Lite key – For advanced management
features
• iPC RKSATA4R5 – Embedded SATA ESRT2 SW RAID
5 support key
• Storage Drives
See Chapter 5 for all available accessory options.
