Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
37

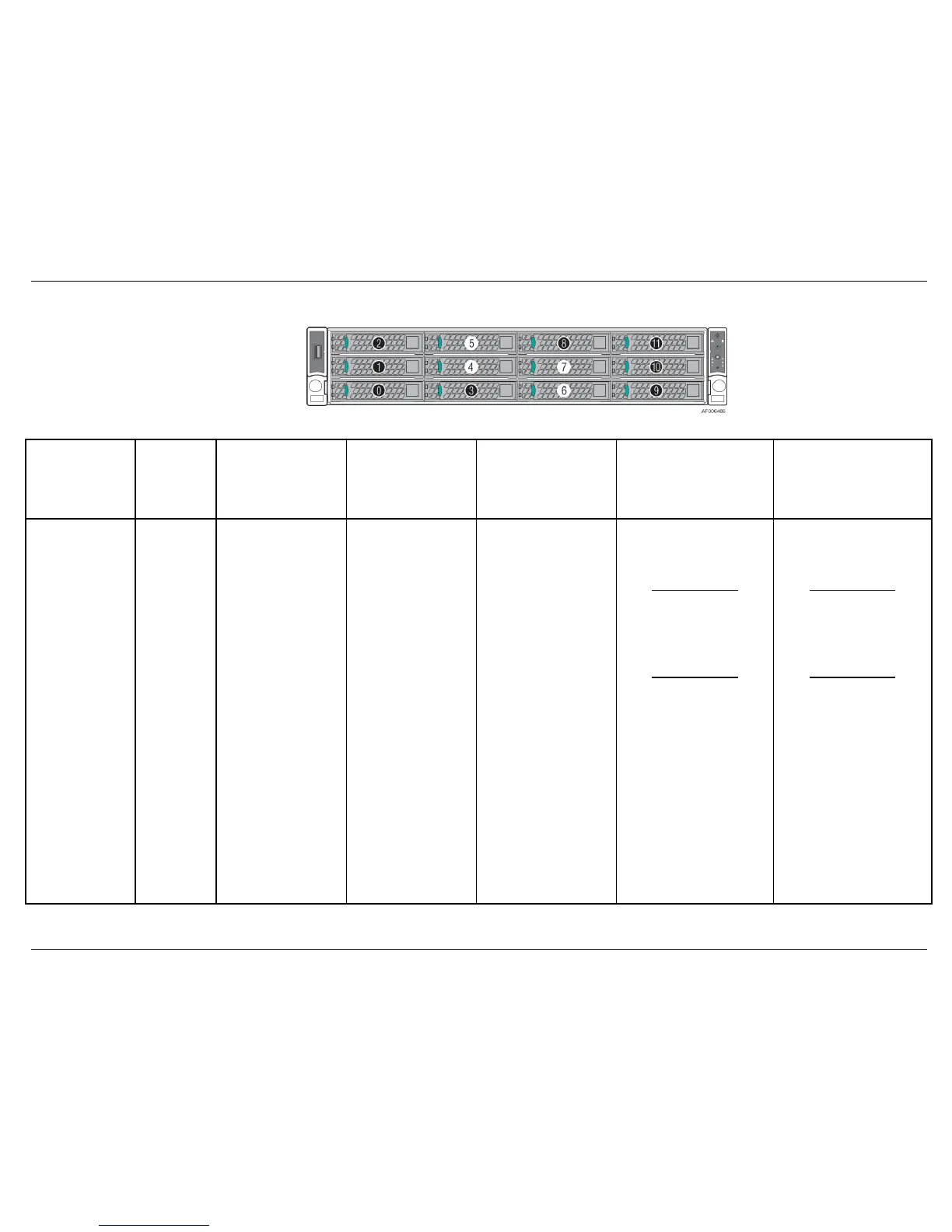

4.2.4 2U 12 x 3.5 – R2312WTxxx Cable Guide
R2312WTxxx SAS / SATA Data Cable Guide (with No SAS Expander)
System
Configuration
Drive
Support
Cables for On-board
Multi-port SATA
Ports to Backplane
Cables for Onboard
SATA controller +
Mezzanine 12 Gb
SAS ROC Module to
Backplane
Cables for Onboard
SATA Controller +
Mezzanine 6 Gb SAS
RAID module to
Backplane
Cables for Onboard SATA
controller + 12 Gb SAS
RAID PCIe* add-in card to
Backplane
Cables for Onboard SATA
controller + 6 Gb SAS
RAID PCIe* add-in card to
Backplane
R2312WTxxx
R2312WTTYS
With no SAS
Expander installed
12 x 3.5”
12 Gb SAS
Capable
Cable Connections:
SATA -> BP 0-3
800mm HD --- HD
sSATA Cntrl -> BP 4-7
875 mm HD --- HD
From data above, select
appropriate cable kits
from list below:
AXXCBL800HDHD
AXXCBL875HDHD
1 of each cable
included with L6
Integrated systems
Cable Connections:
SATA -> BP 0-3
800mm HD --- HD
SAS Mezz -> BP 4-7
875 mm HD --- HD
SAS Mezz -> BP 8-11
950 mm HD ---HD
From data above, select
appropriate cable kits
from list below:
AXXCBL800HDHD
AXXCBL875HDHD
AXXCBL950HDHD
1 of each cable
included with L6
Integrated systems
Cable Connections:
SATA -> BP 0-3
800mm HD --- HD
SAS Mezz -> BP 4-7
875 mm HD --- MS
SAS Mezz -> BP 8-11
950 mm HD ---MS
From data above, select
appropriate cable kits
from list below:
AXXCBL800HDHD
(1) 800mm Included in L6
AXXCBL875HDMS
AXXCBL950HDMS
Cable Connections:
SATA -> BP 0-3
800mm HD --- HD
From Riser #1
SAS PCIe -> BP 4-7 **
800 or 875 mm HD --- HD
SAS PCIe -> BP 8-11
875 mm HD ---HD
From Riser #2
SAS PCIe -> BP 4-7 **
730 or 875 mm HD --- HD
SAS PCIe -> BP 8-11 **
650 or 800 mm HD --- HD
From data above, select
appropriate cable kits:
See ** Notes below
AXXCBL650HDHD
AXXCBL730HDHD
AXXCBL800HDHD
(1) 800mm Included in L6
AXXCBL875HDHD
(1) 875mm Included in L6
AXXCBL950HDHD
(1) 950mm included in L6)
Cable Connections:
SATA -> BP 0-3
800mm HD --- HD
From Riser #1
SAS PCIe -> BP 4-7 **
800 or 875 mm HD --- HD
SAS PCIe -> BP 8-11
875 mm HD ---HD
From Riser #2
SAS PCIe -> BP 4-7 **
730 or 875 mm HD --- HD
SAS PCIe -> BP 8-11 **
650 or 800 mm HD --- HD
From data above, select
appropriate cable kits from
list below:
See ** Notes below
AXXCBL650HDMS
AXXCBL730HDMS
AXXCBL800HDMS
AXXCBL875HDMS
AXXCBL950HDMS
** 1 or 2 cable lengths may be specified for a PCIe add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter
cable is specified. Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.
