Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
38

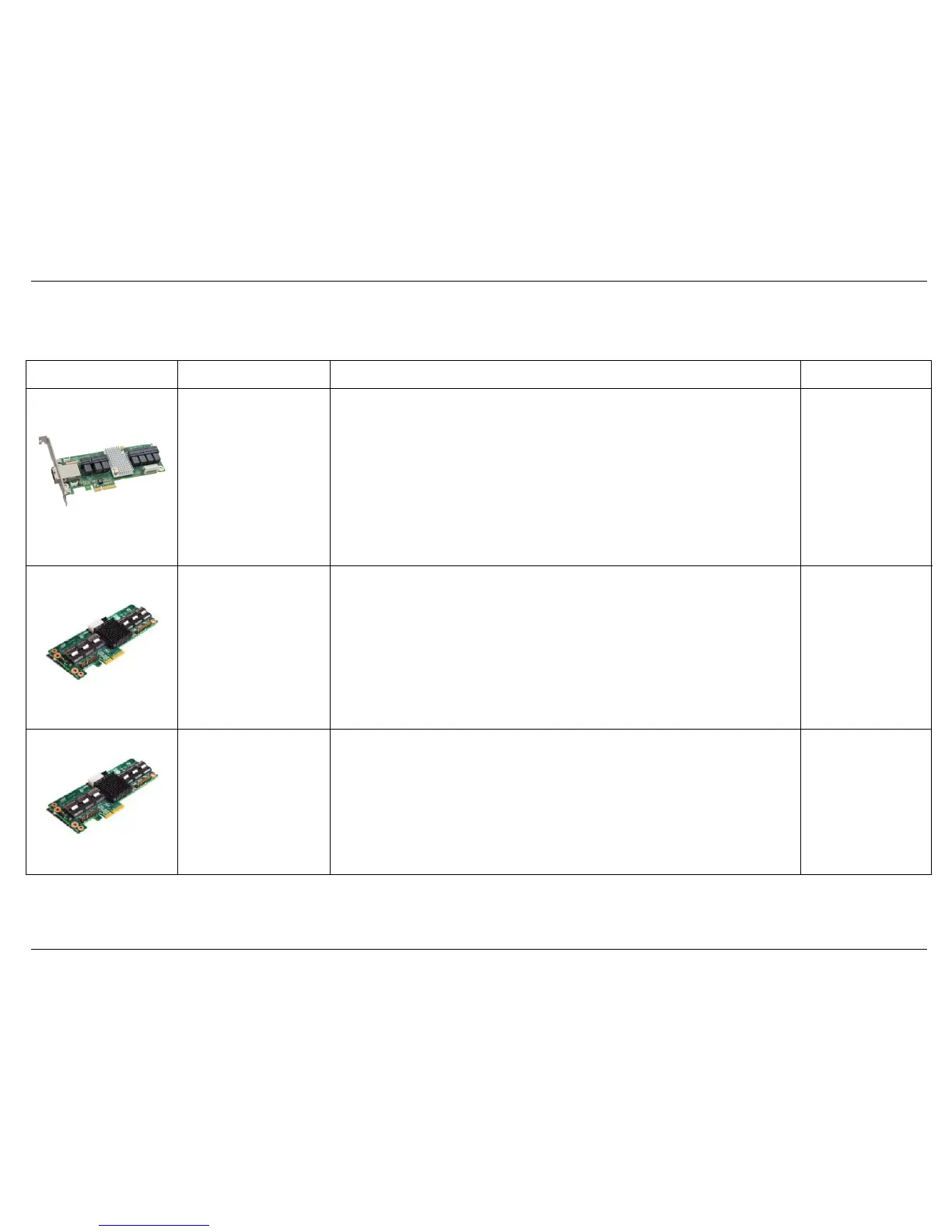

2U 12 x 3.5” – R2312WTxxx SAS / SATA Data Cable Guide (with SAS Expander)
SAS drive configurations consisting of more than 8 drives may require the addition of a SAS Expander card. In the 2U 12x3.5” system configuration, the SAS
expander must be installed in any available PCIe add-in slot. Intel provides two SAS expander options to support this drive configuration:
Intel Product Code Order Information
Product Description Product Type
iPC – RES3FV288
Intel
®
RAID Expander
RES3FV288
MM# – 932895
UPC – 00735858287548
EAN – 5032037067287
MOQ = 5
SAS 3.0 12 Gb/s expander
• Featuring 6Gbps data aggregation for 12Gbps data transfer with 6Gb/s devices
• Low Profile MD2 PCIe* add-in card form factor
• 28 internal ports and 8 external ports
• Redundant dual-port capable for HA and high performance systems
• Power from PCIe x1
• HD Mini-SAS 8643 Connectors
Kit includes: (1) SAS Expander card, (2) HD-HD 250mm Expander-to-RAID card
cables, PCI brackets for Low profile and Full height
Required (sold separately): HD-HD SAS DATA Cables – Expander to backplane – See
Table 6
•
2U Accessory Kit
iPC – RES2SV240
Intel® RAID Expander
RES2SV240
MM# – 908137
UPC – 00735858216289
EAN – 5032037017053
MOQ - 5
SAS 2.0 6 Gb/s expander
• Low Profile MD2 PCIe* add-in card form factor
• 24 Port 6Gb expander card with ports configurable for input or output
• Power from PCIe x1 or 4-pin connector
• Mini-SAS 8087 connectors
Kit includes: (1) 6 Gb/s SAS Expander card, (2) MS-MS 300mm Expander-to-6Gb/s
RAID card cables, PCI brackets for Low profile and Full height , (4) MS-MS 650mm
Expander-to-Backplane cables (cables not compatible in R2312WTxxx system)
Required (sold separately): MS-HD SAS Data Cables – See
Table 6
• 2U Accessory Kit
iPC – RES2SV240NC
Intel® RAID Expander
RES2SV240NC
MM# – 915431
UPC – 00735858221375
MOQ - 5
SAS 2.0 6 Gb/s expander
• Low Profile MD2 PCIe* add-in card form factor
• 24 Port 6Gb expander card with ports configurable for input or output
• Power from PCIe x1 or 4-pin connector
• Mini-SAS 8087 connectors
Kit includes: (1) 6 Gb/s SAS Expander card (with no cables), PCI brackets for Low
profile and Full height
Required (sold separately): MS-HD SAS Data Cables – See
Table 6
• 2U Accessory Kit
Note: The onboard SATA ports are not compatible with SAS Expander cards. The onboard SATA ports can only be cabled directly to a specified backplane.
