Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
33

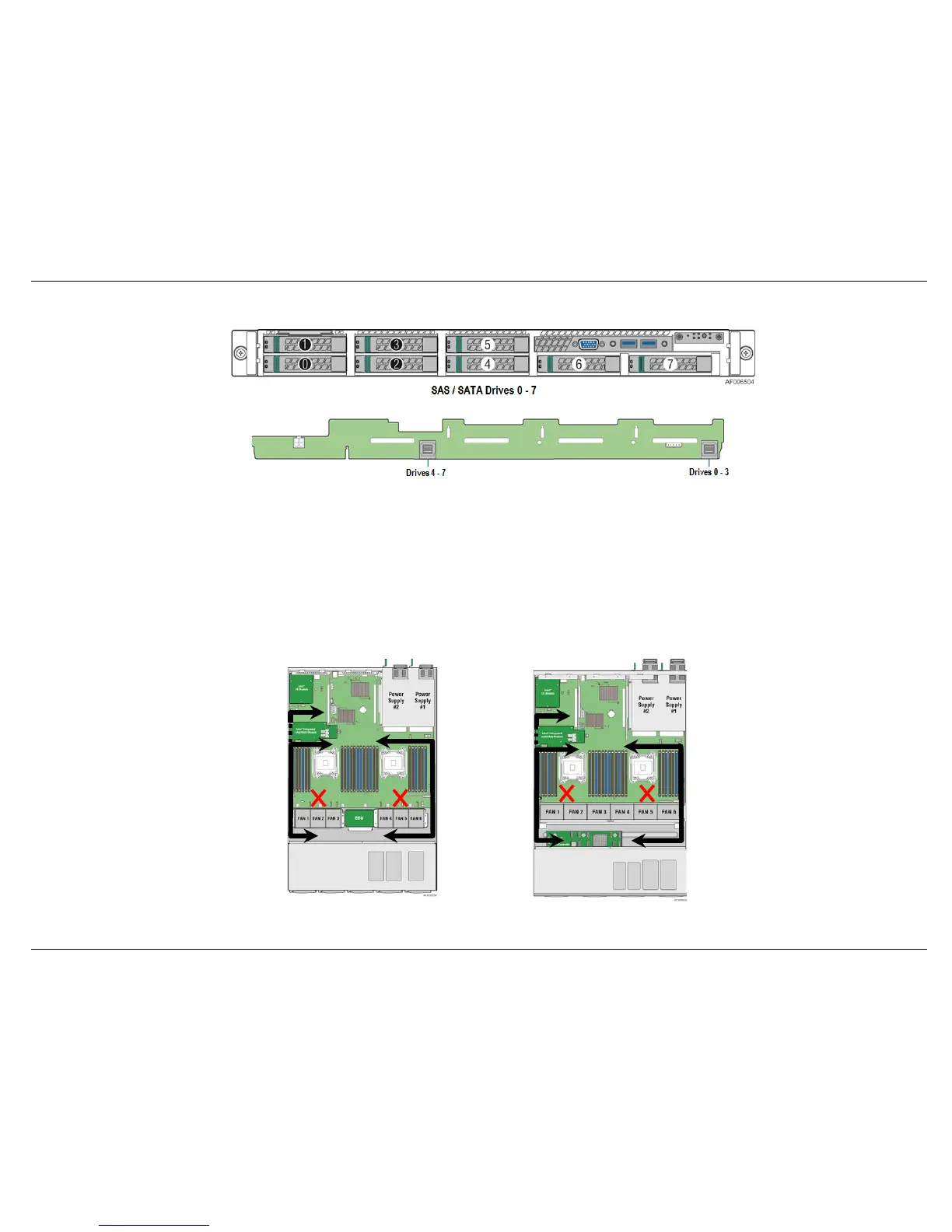

System illustrations in each of the following sections will denote drive numbering as shown below:
Drive numbering in the system illustrations is for general reference only. Actual drive numbering will be dependant on SAS / SATA controller configuration and how
they are cabled to the backplane. Each installed backplane will include a multi-port data connector for each set of four drives. Example) for an 8 drive configuration
(as shown above), the backplane will include 2 four port data connectors. In the illustration, drives showing a common color for the Drive ID label will share a
common data connector on the backside of the baclplane.
Each table in the following sections identify the cable connections and recommended cable lengths for each supported storage controller option in the specified
system. Each “recommended” cable length for a given connector pair provides enough cable to attach the two devices and provides the least amount of access
cable, providing the cleanest cable routing.
In the given server system, no cables should be routed in front of the system fans or in between the processors and memory slots. All cables that require routing
from the front of the system to the back, are routed within the cable channels along the chassis sidewalls.
