Intel S5520HC User Manual

VMware vSphere* 4.1 Installation Guide for ESX*
47
7) Select the Static Discovery TAB.

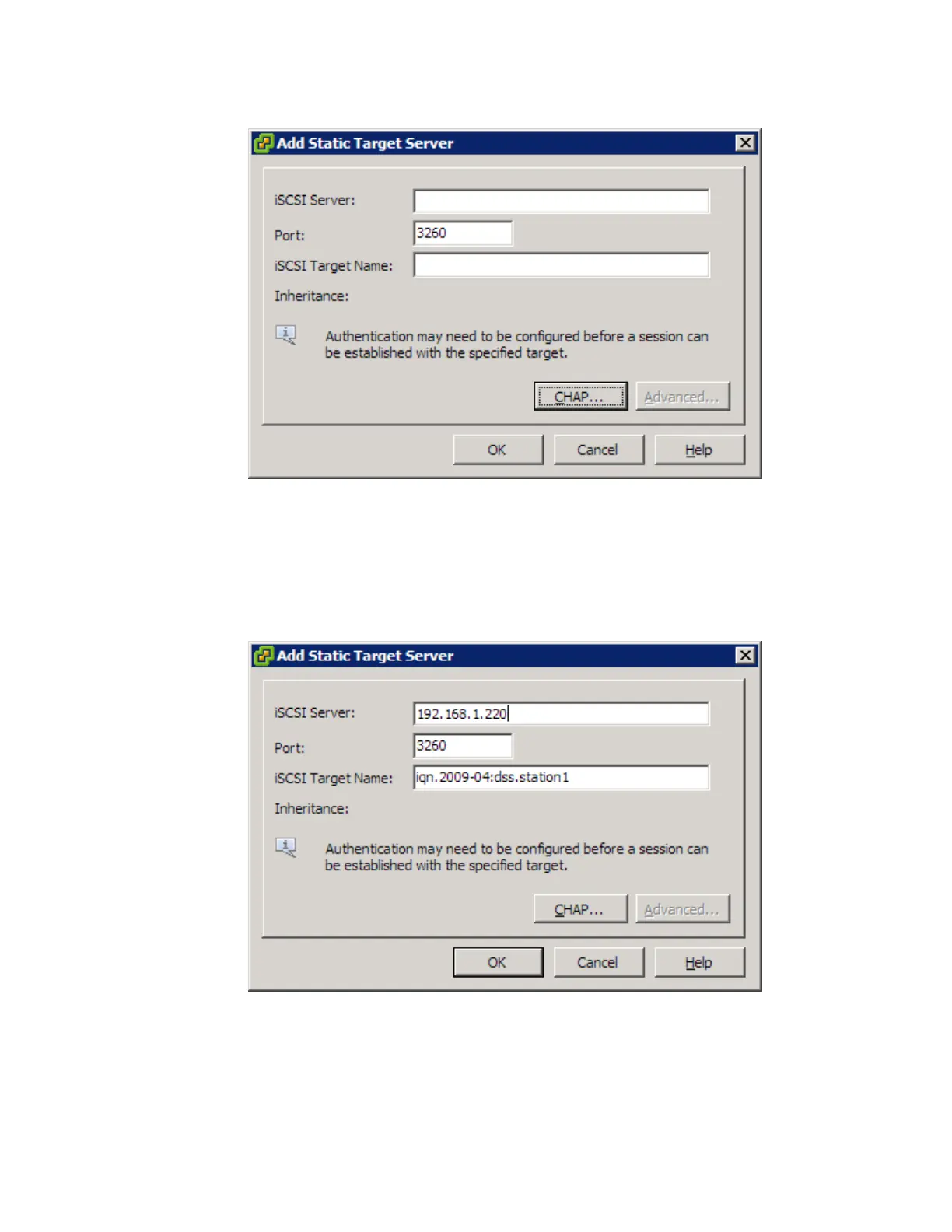

Figure 31 – Add Static Target Server Dialog Window
8) Click “Add”.
9) Write the IQN (iSCSI Target Name) for the storage solution:__________________________
10) In the Add Static Target Server dialog, enter the IP address, 192.168.1.220 in this example, and the
IQN target name for the storage server (iqn.2009-04:dss.station1) for example. Verify that it is typed or
pasted in correctly, then click “OK”.
Figure 32 – Add Static Target Server Properties
11) The iSCSI target should appear in the dialog.
