VMware vSphere* 4.1 Installation Guide for ESX*
53
21) Click “Next” in the Ready to Complete window.

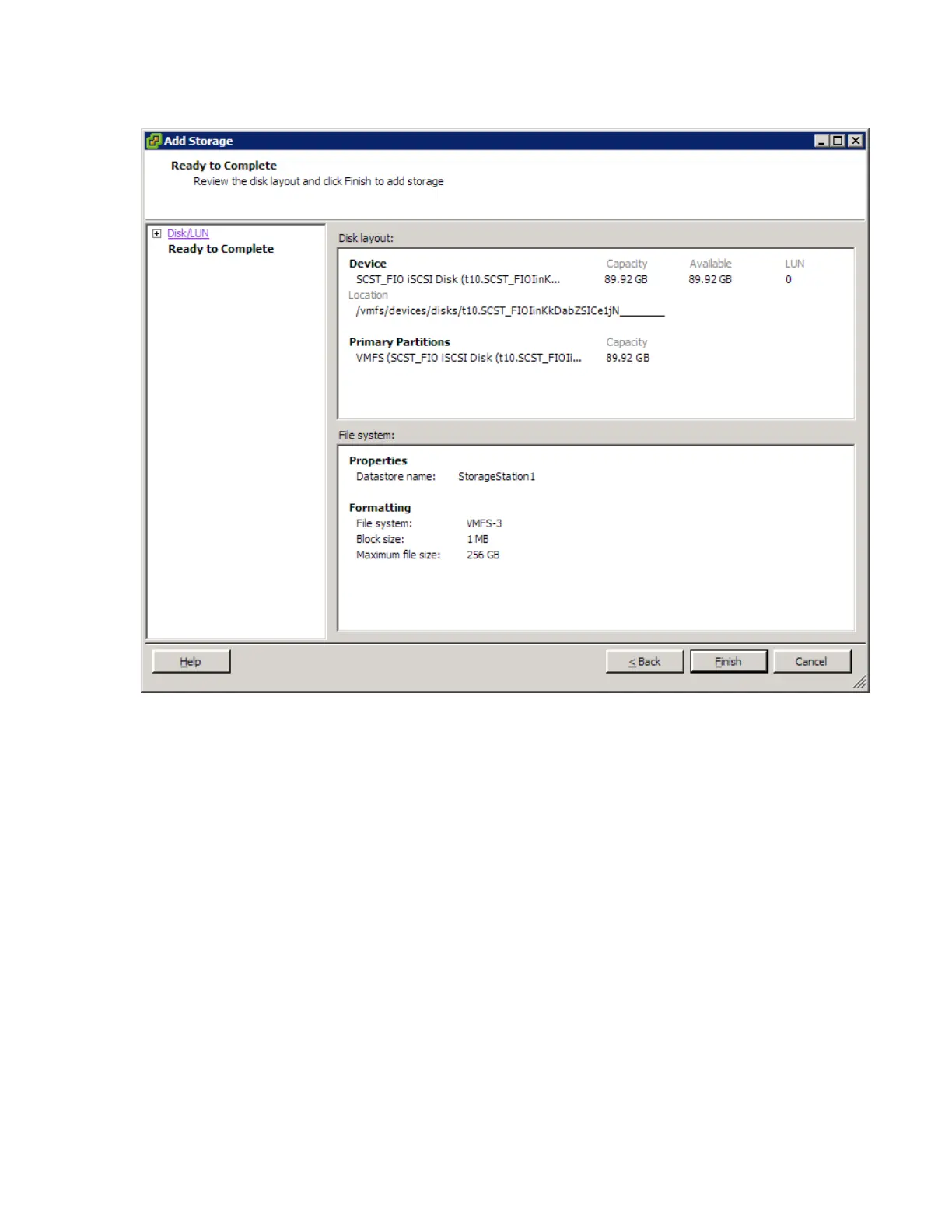

Figure 40 – Ready to Complete Window
22) Select the second Host (192.168.1.12 for station 1), click the Configuration tab, then select “Storage
Adapters” in the Hardware pane.
23) Scroll down the list of storage adapters, then select iSCSI Software Adapter.
24) Click ”Properties” and the iSCSI initator properties dialog box appears.
25) Click “Configure”, click the “Enabled” checkbox for the Status, then click “OK”.
26) Click ”Configure”, change the station iqn (iqn.1998-01.com.VMware:esx21 )”, then “OK”.
27) Click the Static Discovery tab.
28) Click “Add”.
To Next Page
