VMware vSphere* 4.1 Installation Guide for ESX*
55

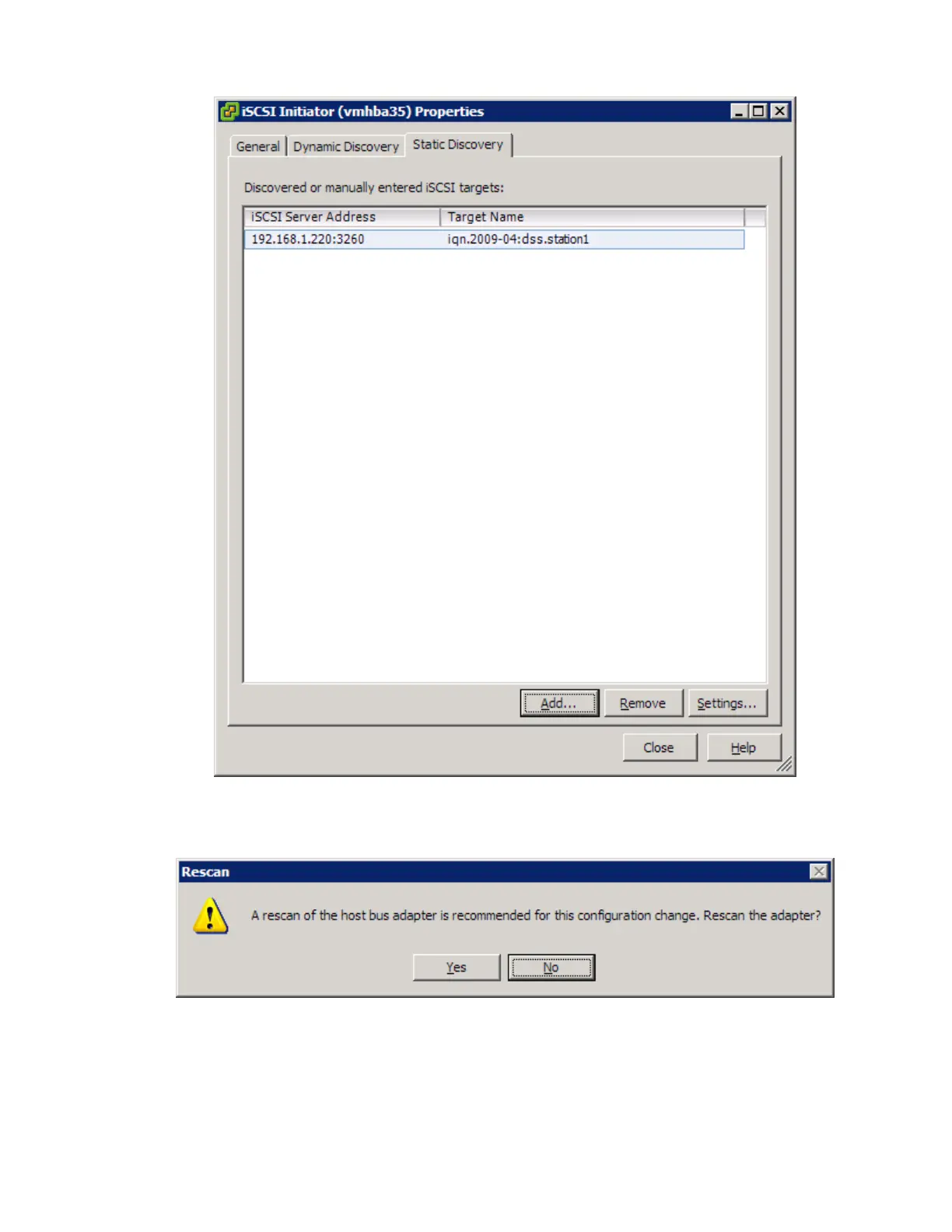

Figure 43 – iSCSI Initiator Properties
31) Click “Close”; the scan dialog should pop up. Click “Yes” to rescan the adapter. This may take a few
minutes.
Figure 44 – Adapter Rescan Dialog Window
32) The iSCSI target for the volume should be displayed in the main screen.
33) Select the second host> the Configuration tab > “Storage” in the Hardware pane, then click “Refresh”.
The storage available to the second host should appear.
