v240M – Marine Satellite Communication System
130
Antenna UI
This view shows a graphical representation of the current antenna position which allows
you to easily identify whether or not the antenna is aligned properly to the target satellite
or is in a blockage zone. In addition, this view shows the current satellite that the antenna
is pointed towards and the satellites that are located at a 180° arc on the horizon, accord-
ing to the current position.
Note: Based on the satellite EIRP footprint and the size of the antenna, you may not
be able to track all the satellites visible in 180° arc.

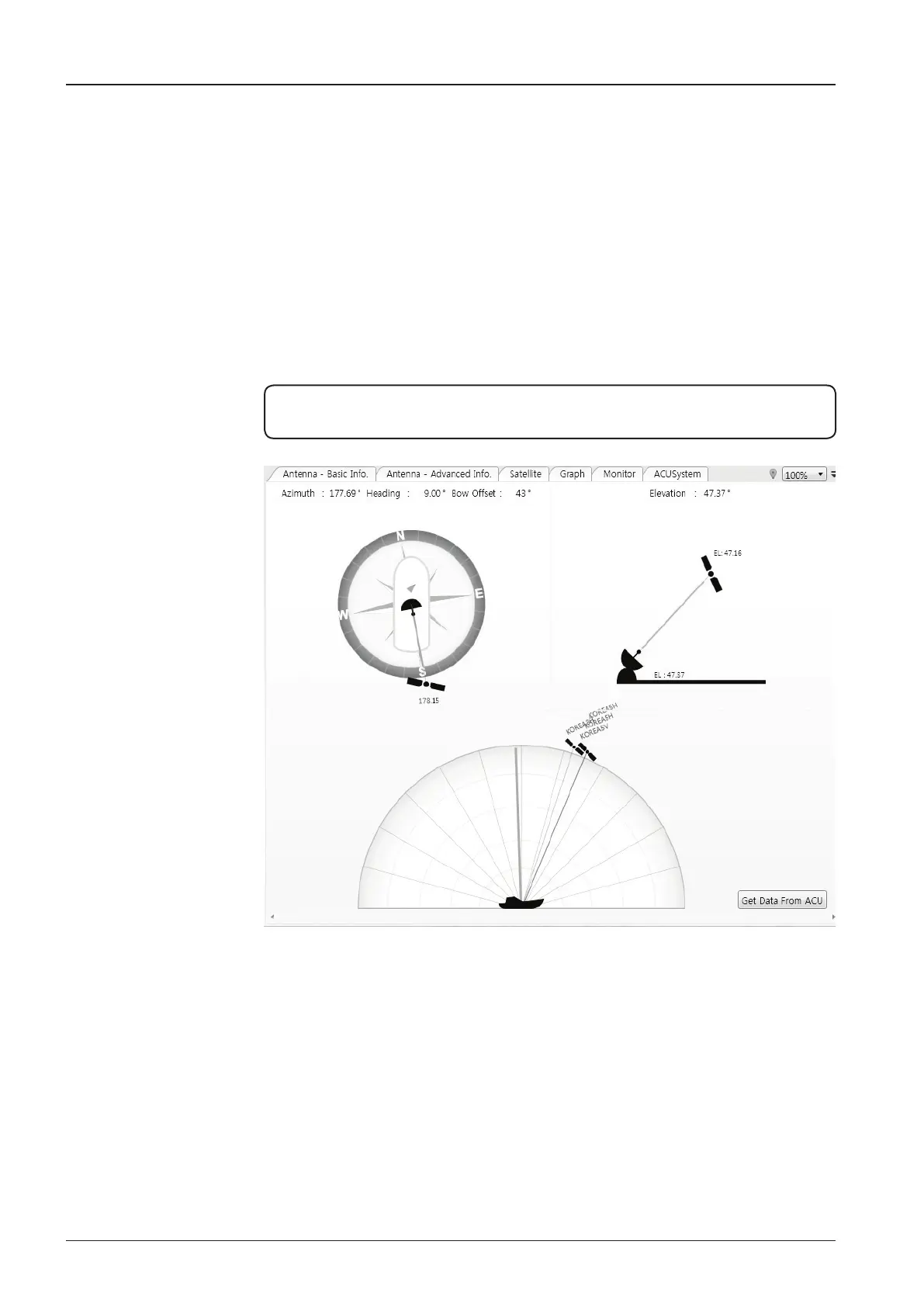

Figure 110. Antenna UI View Tab
