Intellian v240M User Manual

v240M – Marine Satellite Communication System
64

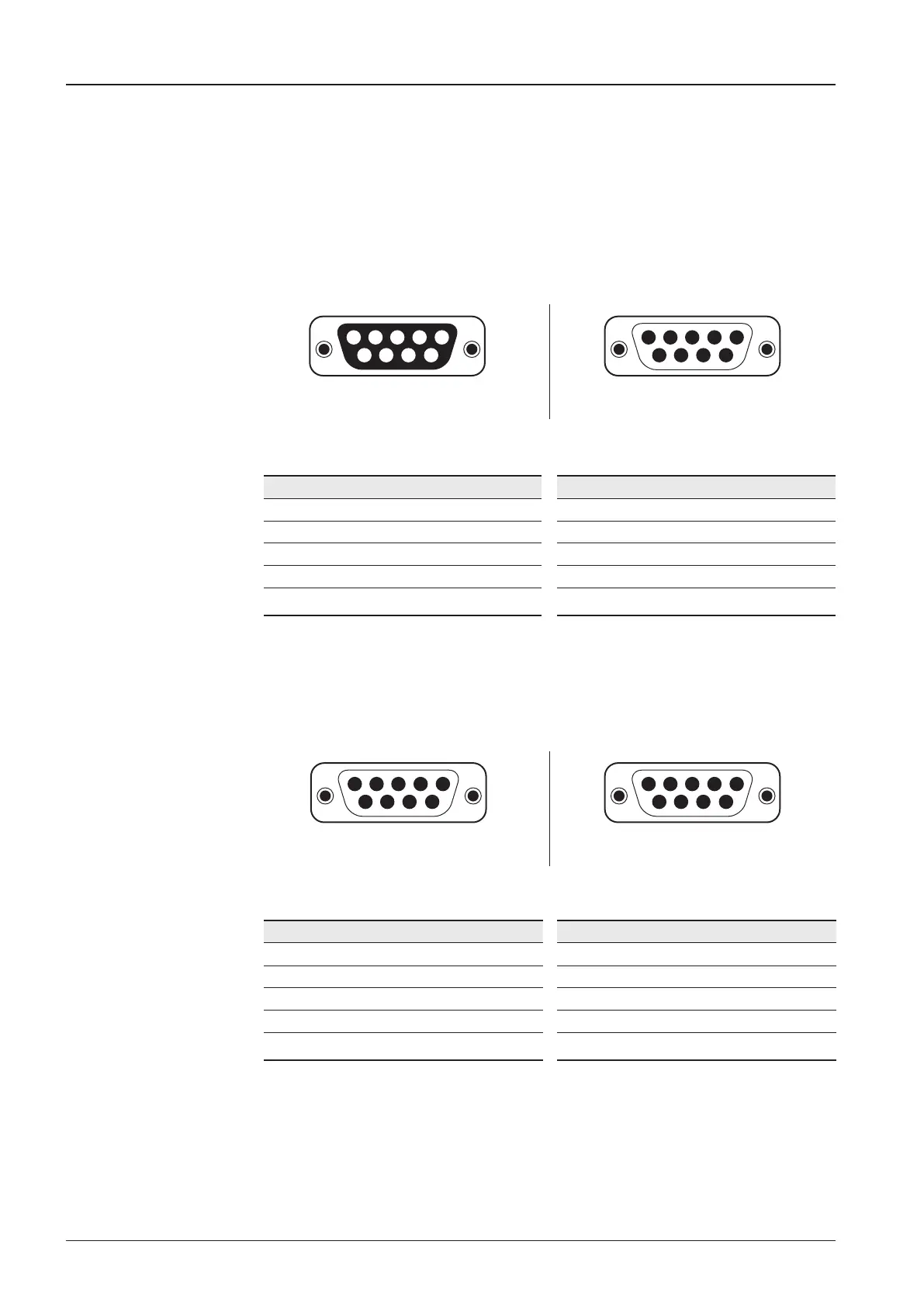

ACU Connector Guide
Console Port
NOTE: NMEA GPS IN/OUT Sentence: GPGLL (4800 Baud, 8, N, 1)
12345
6789
54321
9876
12345
6789
54321
9876
12345
6789
54321
9876
Pin Signal Pin Signal
1 GND 6 GPS OUT -
2 GPS OUT + 7 MODEM_SIGNAL_IN
3 MODEM_LOCK 8 MODEM_CTRL2
4 MODEM_CTRL1 (TX MUTE) 9 GPS IN -
5 GPS IN +
ACU Console Port
D-Sub 9 Pin Female
D-Sub 9 Pin Male Connector
Supplied Component
Pin Signal Pin Signal
1 - 6 -
2 RXD 7 -
3 TXD 8 -
4 - 9 -
5 GND
Pin Signal Pin Signal
1 - 6 -
2 RXD + 7 RXD -
3 TXD + 8 TXD -
4 - 9 -
5 GND
D-Sub 9 Pin RS232
Connector
D-Sub 9 Pin RS422
Connector
RS232/422 Connector (Modem & BUC Interface)
Figure 79. Console Port
Figure 80. RS232/ 422 Connector
