Intellian v240M User Manual

65
ACU INSTALLATION

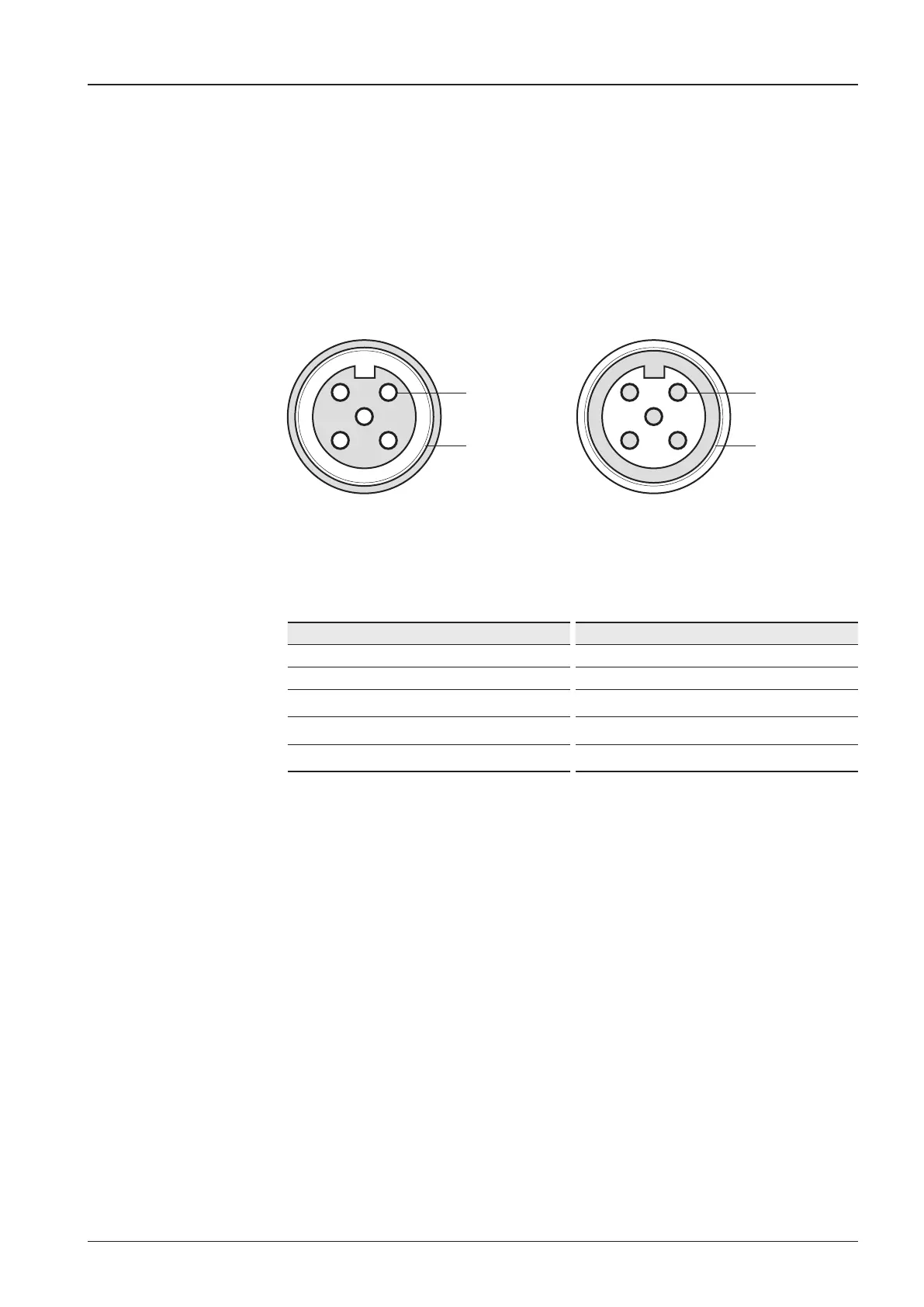

NMEA 2000 Connector
5
4
3
2
1
Pins
Connector Threads
5
3
4
1
2
Sockets
Connector Threads
Pin Signal
1 Shield
2 NET-S, (power supply positive, +V)
3 NET-C, (power supply common, -V)
4 NET-H, (CAN-H)
5 NET-L, (CAN-L)
Pin Signal
1 Shield
2 NET-S, (power supply positive, +V)
3 NET-C, (power supply common, -V)
4 NET-H, (CAN-H)
5 NET-L, (CAN-L)
Male Connector Female Connector
Figure 81. NMEA2000 Connector
