Antenna Specication
Radome Dimension
Conrm the height and diameter of the bottom surface of the antenna unit before
installing it. The mounting surface and overall space occupied by the antenna must
be sufcient for the height and diameter of the fully constructed radome on top of
its base frame.

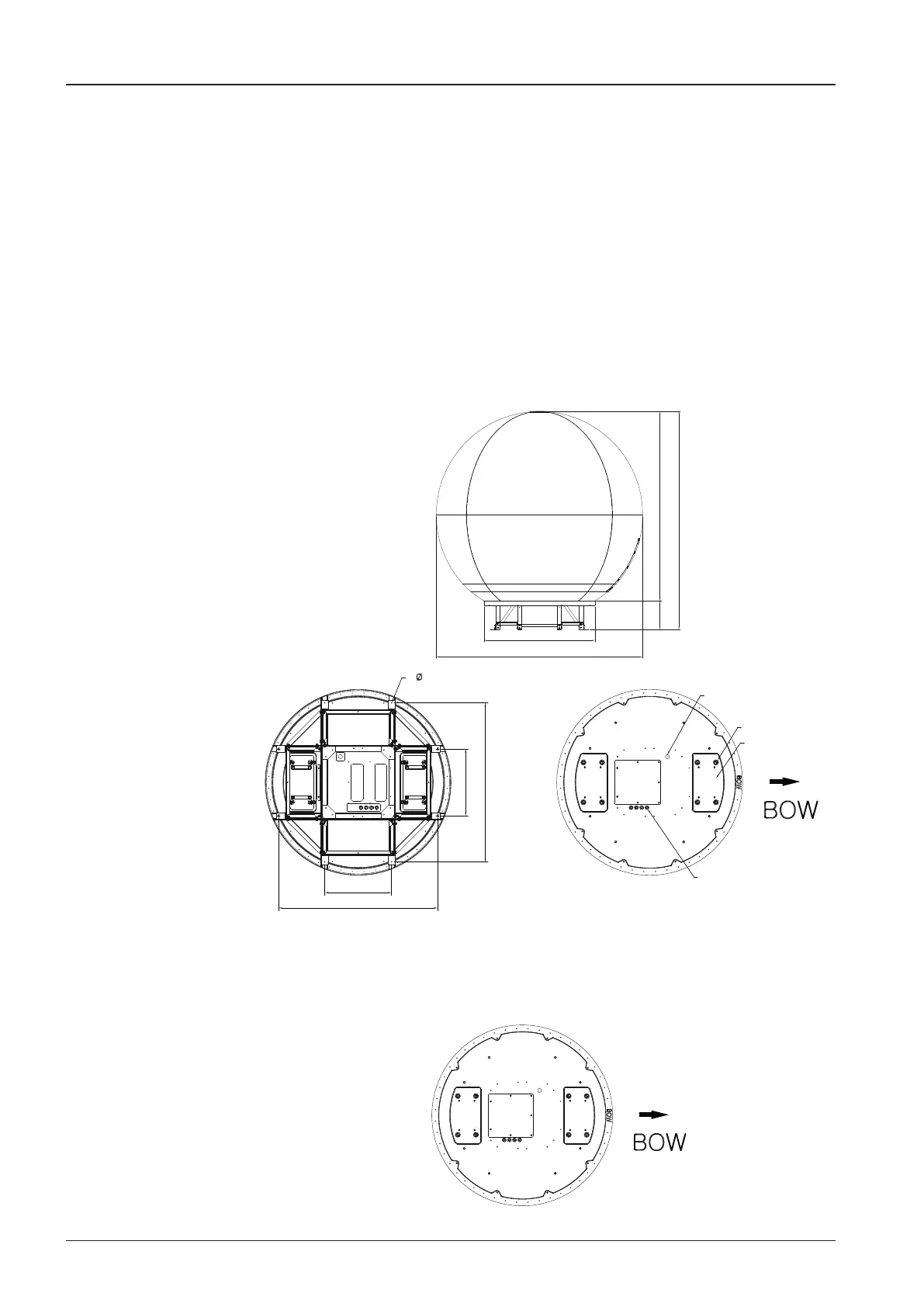

The height and the diameter of the bottom surface of the antenna are as shown
in the following drawing. It is strongly suggested that the installation is conducted
using a crane.
Heading Alignment
The radome assembly should be positioned with the BOW marker aligned as close
as possible to the center line of the ship.
1797mm
756mm
756mm
1797mm
4-Cable Gland M32
2-Radome Base Hatch
8-Base Latch
Cable Gland M40
8- 14 Antenna Install Hole
Figure 10. Radome Dimension
Figure 11. Heading Alignment
3596mm545mm
2100mm
3912mm
4141mm
To Next Page
