v240M – Marine Satellite Communication System
46
Lower Radome
To assemble lower Radome, spread silicon on the Base Frame as shown in gure 56. Put the
Panels on the Base Frame using bolts and nuts.
Be sure that the Side Hatch is located in the opposite side of the Bow marker as shown in
gure 57. The silicon should be applied to the panel seams as done for the upper Radome.

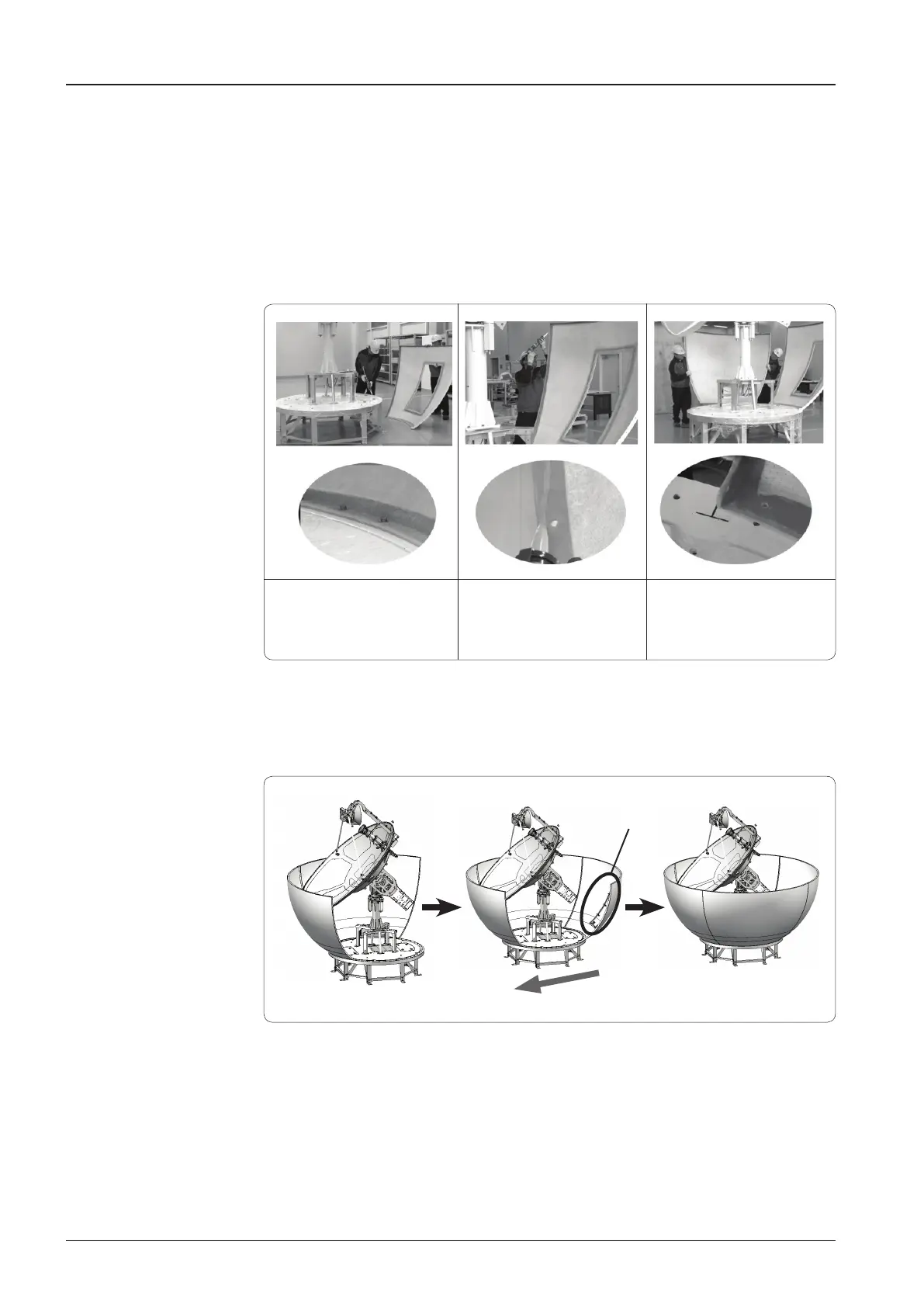

Figure 51. Lower Radome Assembly
Figure 52. Side Hatch and Bow Direction
Bow Direction
Spread silicon on the
Base Frame. When putting
Panels on the Base Frame,
use bolts and nuts.
Spread silicon on the side
of the Panel to assemble.
Match the Panel to
the mark on the Base
Frame.
j k l
Side Hatch
To Next Page
