Before laying down the upper Radome on the lower Radome, position the two ends of the
bracket bolts in conjunction with the holes on the lower Radome as shown in gure 61. Spread
silicon on the binding surface of the lower Radome prior to lowering the top section.
Match the two ends of M6 Bolts to the holes located on the binding surface of the lower Radome.
Remove the lift bracket bolts from inside the Radome, and then take out the brackets from outside
as shown in gure 63.

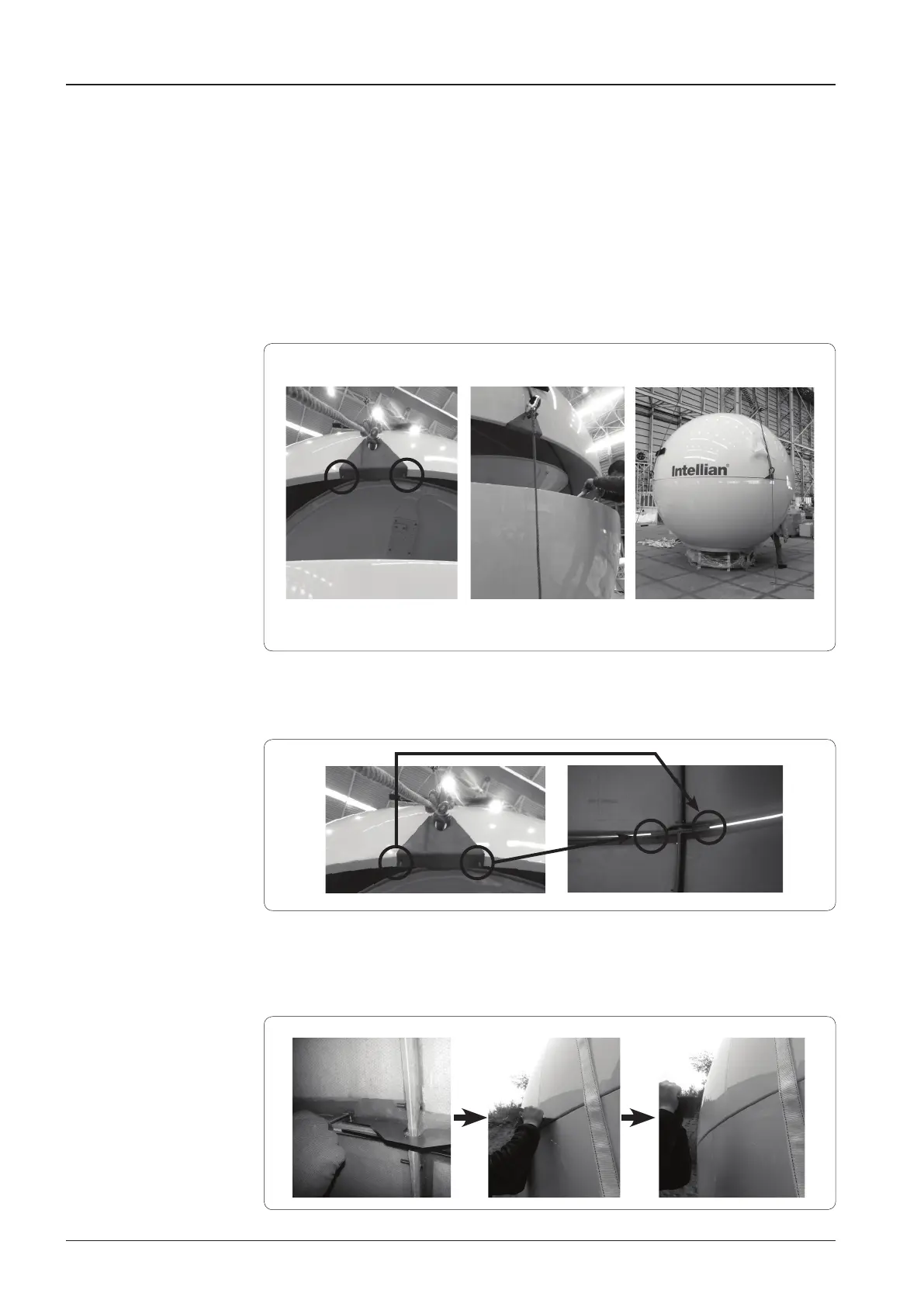

Figure 56. Assemble the Upper Radome and the Lower Radome (II)
Figure 57. Match the Two Ends of M6 Bolts to the Lower Radome
Figure 58. Remove the Lift Brackets
