v240M – Marine Satellite Communication System
58

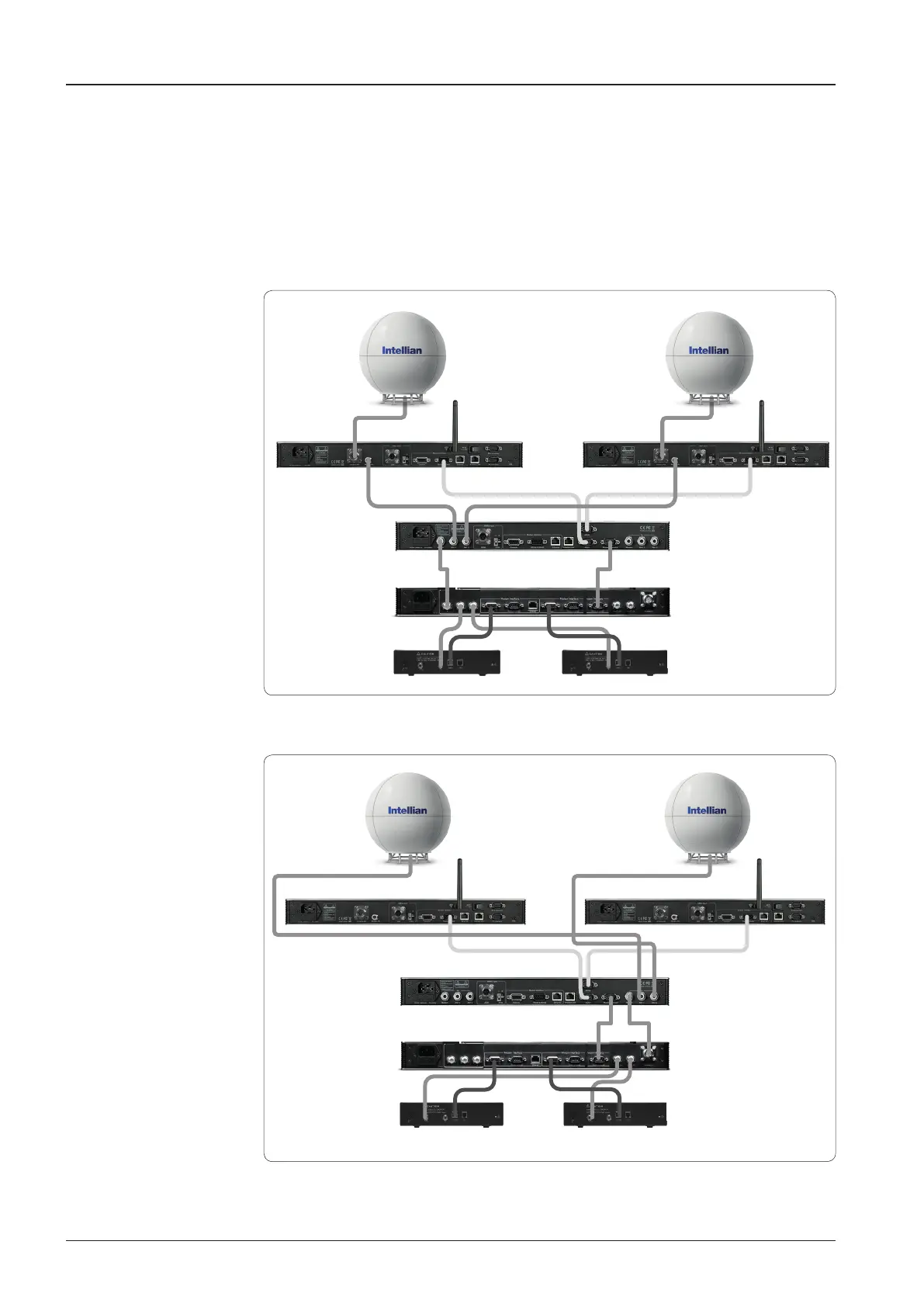

Figure 72. System Conguration RX: 2 Antennas and 2 Modems
Figure 73. System Conguration TX: 2 Antennas and 2 Modems
RX
ACU 2ACU 1
RX
Satellite
Modem 1
RX
Satellite
Modem 2
Antenna
Mediator
Modem
Mediator
RX
Antenna 1 Antenna 2
TX
ACU 2ACU 1
TX
Satellite
Modem 1
TX
Satellite
Modem 2
Antenna
Mediator
Modem
Mediator
TX
Antenna 1 Antenna 2
