PT Connector Pinout

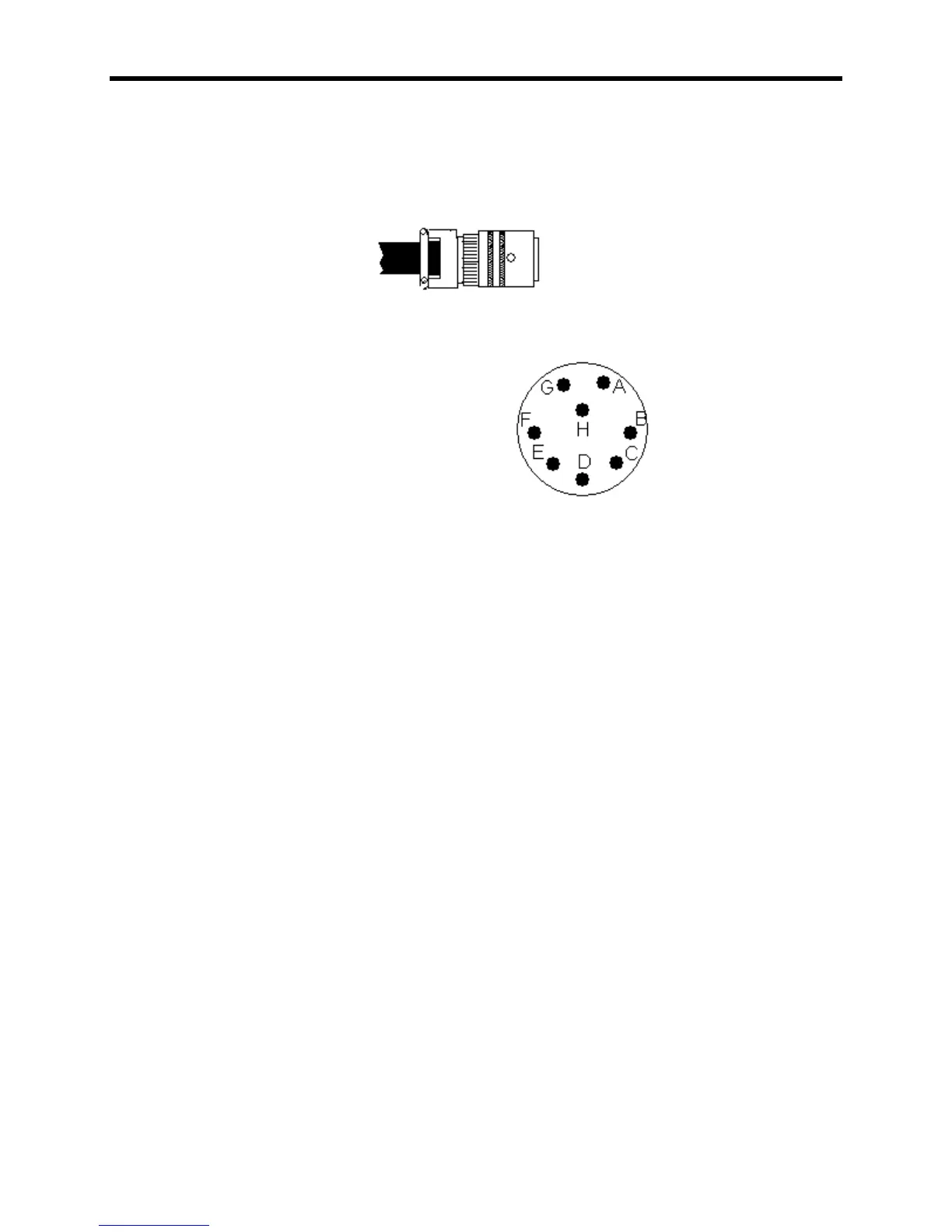

The diagram below shows the pin-out for the PT connector located on the right side of
the CW250 display housing.
PT Connector
A: RS-485 A
B: TXD (RS232)
C: - Charging Voltage
D: none
E: +Charging Voltage
F: Ground
G: RS485 B
H: none
