6.4 Main components indoor unit
Manual system venting
Plate heat
exchanger
System return sensor T04
Mains supply cable 230V ~
Control unit
System flow temperature
sensor T03

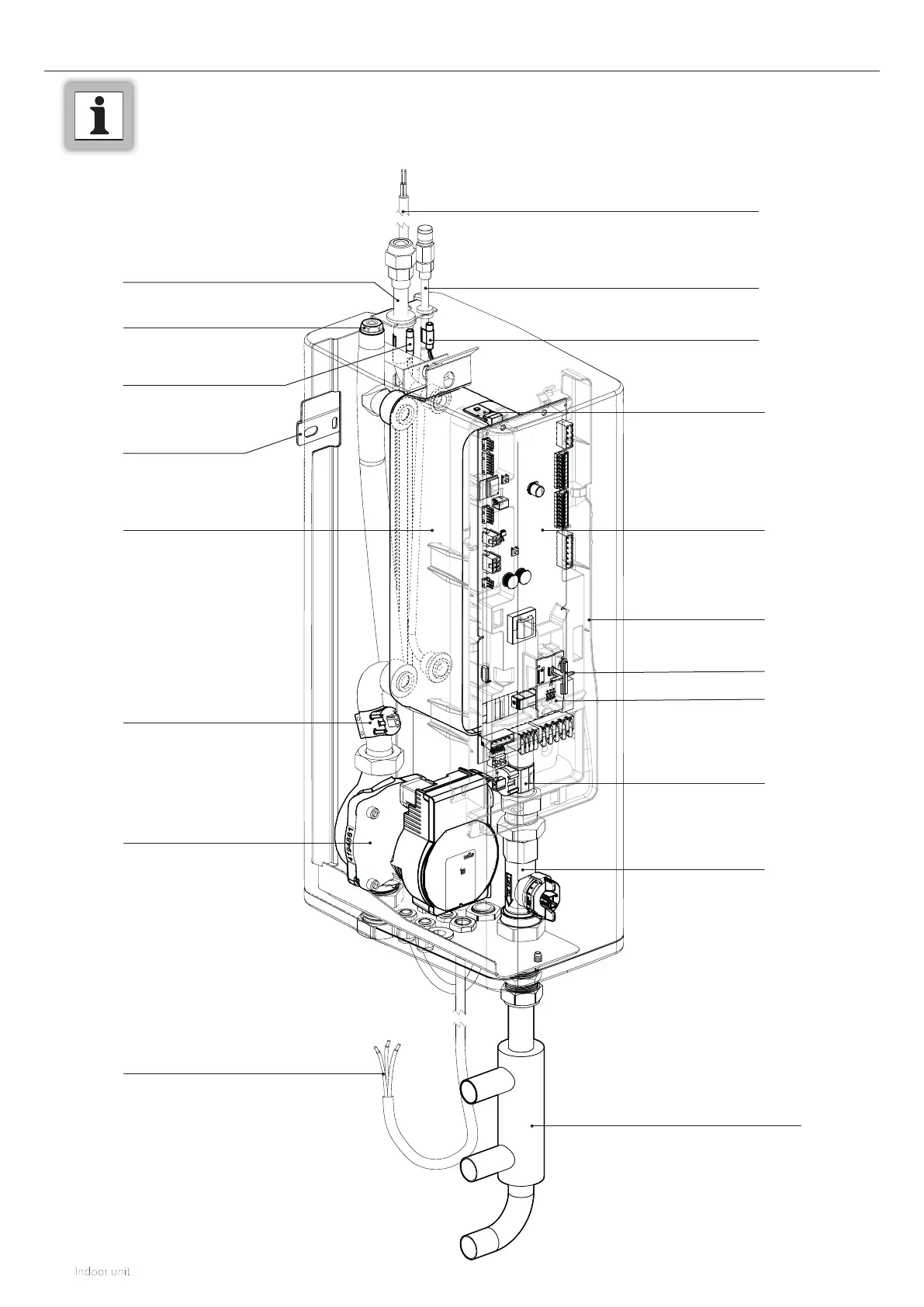

► The view below shows the interior of the
indoor unit without its usual insulation.
Refrigerant gas line sensor T01
Flow sensor
Refrigerant liquid line
sensor T02
Refrigerant gas line
Refrigerant liquid line
Communication and
mains cable
to the outdoor unit
Low loss header
Circulation pump
Memory module
Printed circuit
board housing
Control button/
multicolour LED
HMI-print
Wall mounting bracket
