7.4 Rating plate outdoor unit
The rating plate is located on the right side of the unit
and includes the following information:
► Product type
► Operating pressure
► Refrigerant type
► Refrigerant quantity
► Electrical mains supply
► Electrical power
► IP Rating
► Weight
Connections
1 Refrigerant gas line 1/2"
2 Refrigerant liquid line 1/4"
3
Mains supply and switched
line connection (from the
indoor unit)
N, L, 3,

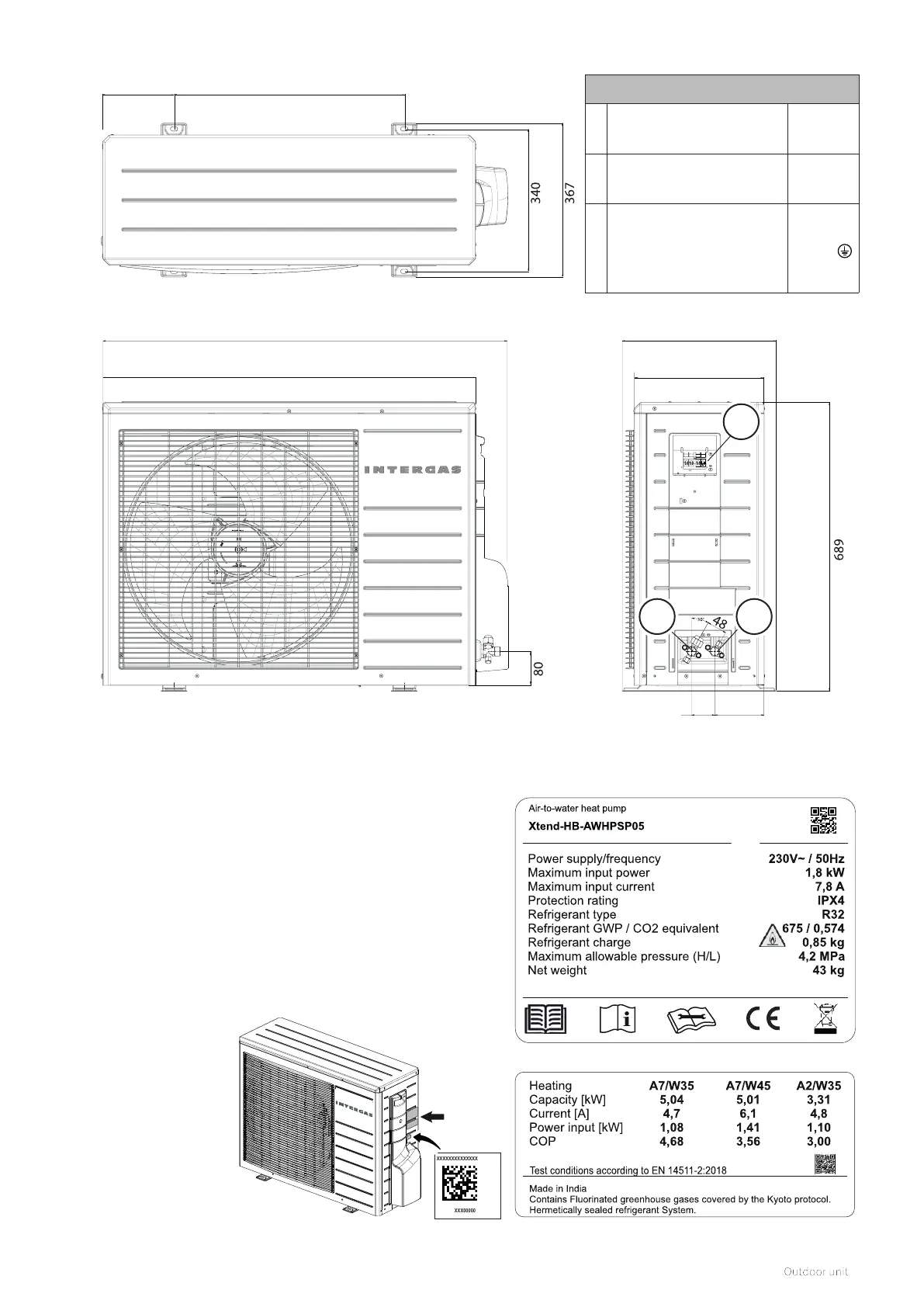

7.3 Dimensions and connections outdoor unit
1
2
3
EXAMPLE
