Chapter 4: Web configuration
130 NS3552-8P-2S-V2 User Manual
Buttons
• Click Add New Entry to add a new MAC-based VLAN entry
• Click Save to save changes.
• Click Reset to undo any changes made locally and revert to previously saved
values.
• Select the Auto-refresh check box to refresh the page automatically. Automatic
refresh occurs every three seconds.
• Click Refresh to refresh the page immediately.
Protocol-based VLAN membership

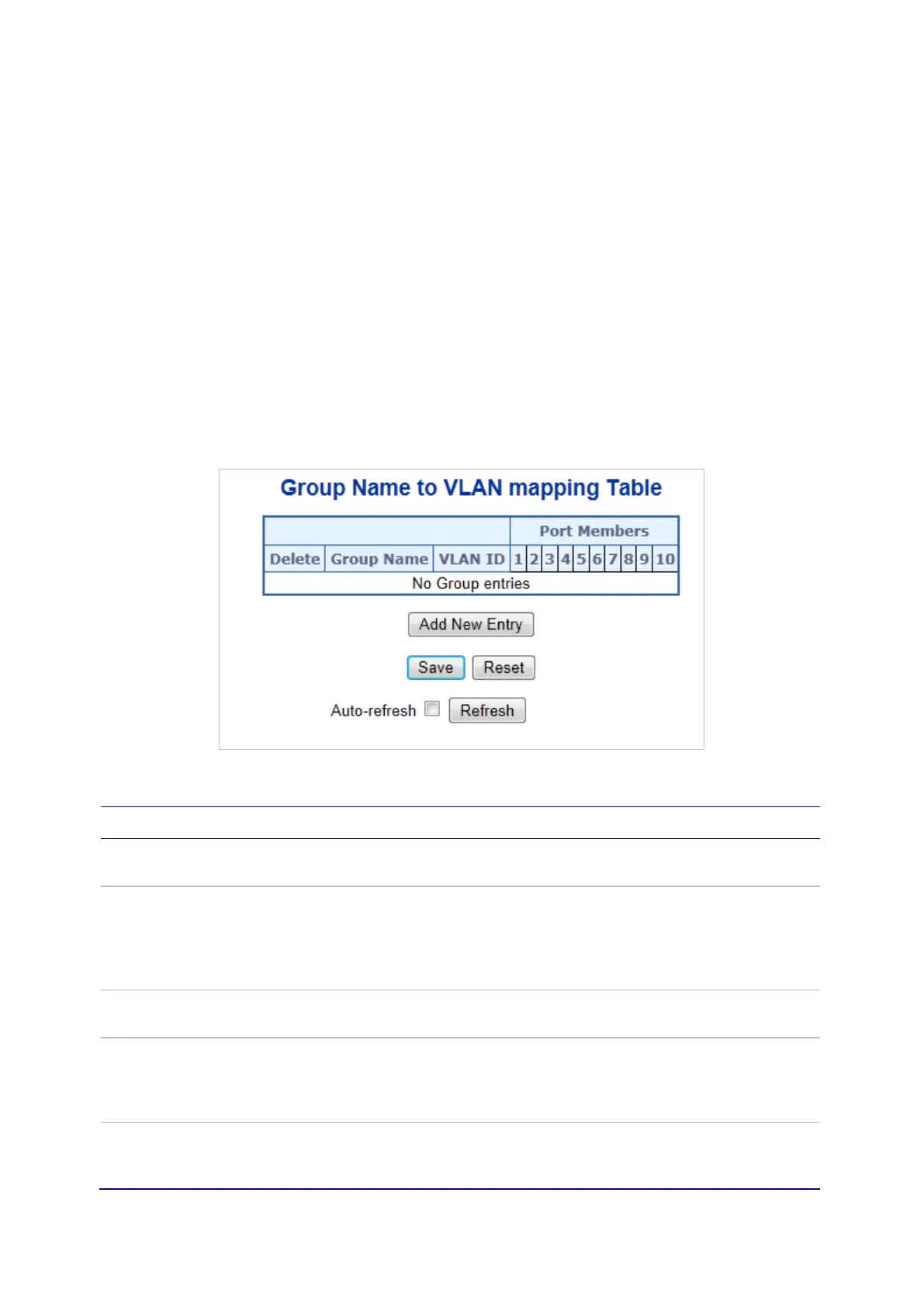

The Group Name to VLAN Mapping Table page permits mapping an already configured
Group Name to a VLAN.
The page includes the following fields:
Object Description
Delete Select this box to delete a Group Name to VLAN map entry. The entry will be
deleted on the switch during the next save.
Group Name A valid Group Name is a unique 16-character long string for every entry
which consists of a combination of alpha characters (a-z or A-Z) and integers
(0-9). No special character is allowed. Whichever group name you try map to
a VLAN must be present in the Protocol to Group mapping table and must
not be used by any other existing mapping entry on this page.
VLAN ID Indicates the ID to which the group name will be mapped. A valid VLAN ID
ranges from 1-4095.
Port Members A row of check boxes for each port is displayed for each group name to
VLAN ID mapping. To include a port in a mapping, select the box. To
remove or exclude the port from the mapping, make sure the box is
deselected. By default, no ports are members, and all boxes are deselected.
Adding a New Group
to VLAN mapping
entry
Click the Add New Entry to add a new entry in mapping table. An empty row
is added to the table, and Frame Type, Value, and the Group Name can be
configured as needed.
