The page includes the following fields:
Object Description
VLAN ID VLAN ID of the group.
Group Group address of the group shown.
Port Switch port number.
Mode Indicates the filtering mode maintained per (VLAN ID, port number, Group
Address) basis. It can be either Include or Exclude.
Source Address IP Address of the source. Currently, system limits the total number of IP
source addresses for filtering to 128.
Type Indicates the type. It can be either Allow or Deny.
Hardware
Filter/Switch
Indicates if the data plane destined to the specific group address from the
source IPv4 address can be accomodated by the chip.
Buttons
• Select Auto-refresh to automatically refresh the page every three seconds.
• Click Refresh to refresh the table starting from the input fields.
• Click I<< to update the table starting from the first entry in the IGMP group table.
• Click >> to update the table, starting with the entry after the last entry currently
shown.
MLD snooping configuration

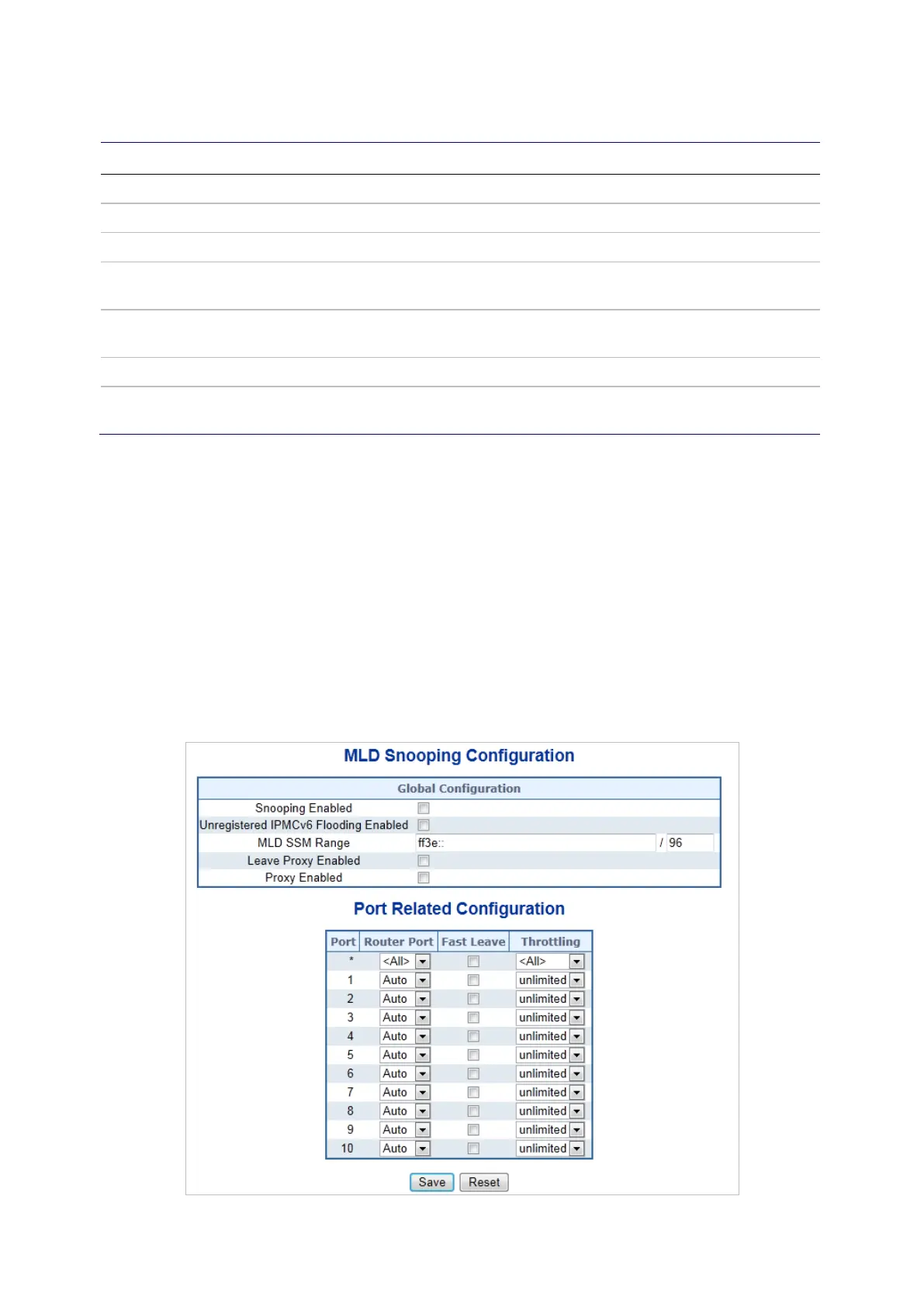

The MLD Snooping Configuration page provides MLD snooping-related configuration.
