Interlogix NS3552-8P-2S-V2 User Manual

Chapter 4: Web configuration
NS3552-8P-2S-V2 User Manual 181
The page includes the following fields:
Object Description
Mode Controls the tag remarking mode for this port.
Classified: Use classified PCP/DEI values.
Default: Use default PCP/DEI values.
Mapped: Use mapped versions of QoS class and DP level.
PCP/DEI
Configuration
Controls the default PCP and DEI values used when the mode is set to
Default.
(QoS class, DP level)
to (PCP, DEI)
Mapping
Controls the mapping of the classified (QoS class, DP level) to (PCP, DEI)
values when the mode is set to Mapped.
Buttons
• Click Save to save changes.
• Click Reset to undo any changes made locally and revert to previously saved
values.
• Click Cancel to return to the previous page.

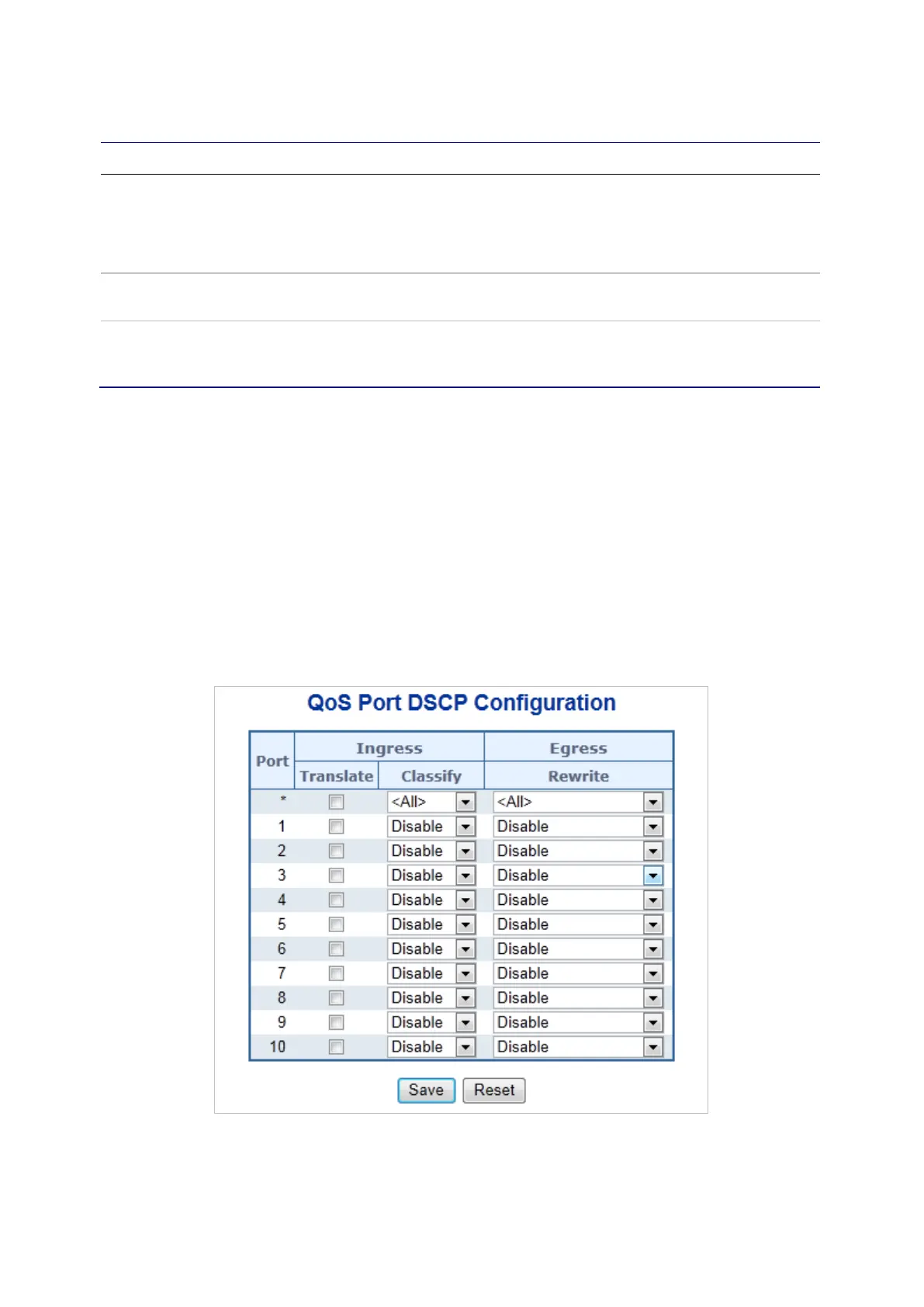

Port DSCP
The QoS Port DSCP Configuration page permits configuration of the basic QoS port
DSCP settings for all switch ports.
