Chapter 4: Web configuration
NS3552-8P-2S-V2 User Manual 197
Object Description
Port Redirect Indicates the port redirect operation of the ACE. Frames matching the ACE
are redirected to the port number.
The allowed values are Disabled or a specific port number. When Disabled
is shown, the port redirect operation is disabled.
Mirror Specify the mirror operation of this port. The allowed values are:
Enabled: Frames received on the port are mirrored.
Disabled: Frames received on the port are not mirrored.
The default value is Disabled.
CPU Forward packet that matched the specific ACE to CPU.
CPU Once Forward first packet that matched the specific ACE to CPU.
Counter The counter indicates the number of times the ACE was hit by a frame.
Conflict Indicates the hardware status of the specific ACE. The specific ACE is not
applied to the hardware due to hardware limitations.
Buttons
• Select the ACL status from the Combined drop-down list.
• Select the Auto-refresh check box to refresh the page automatically. Automatic
refresh occurs every three seconds.
• Click Refresh to refresh the page.
ACL configuration

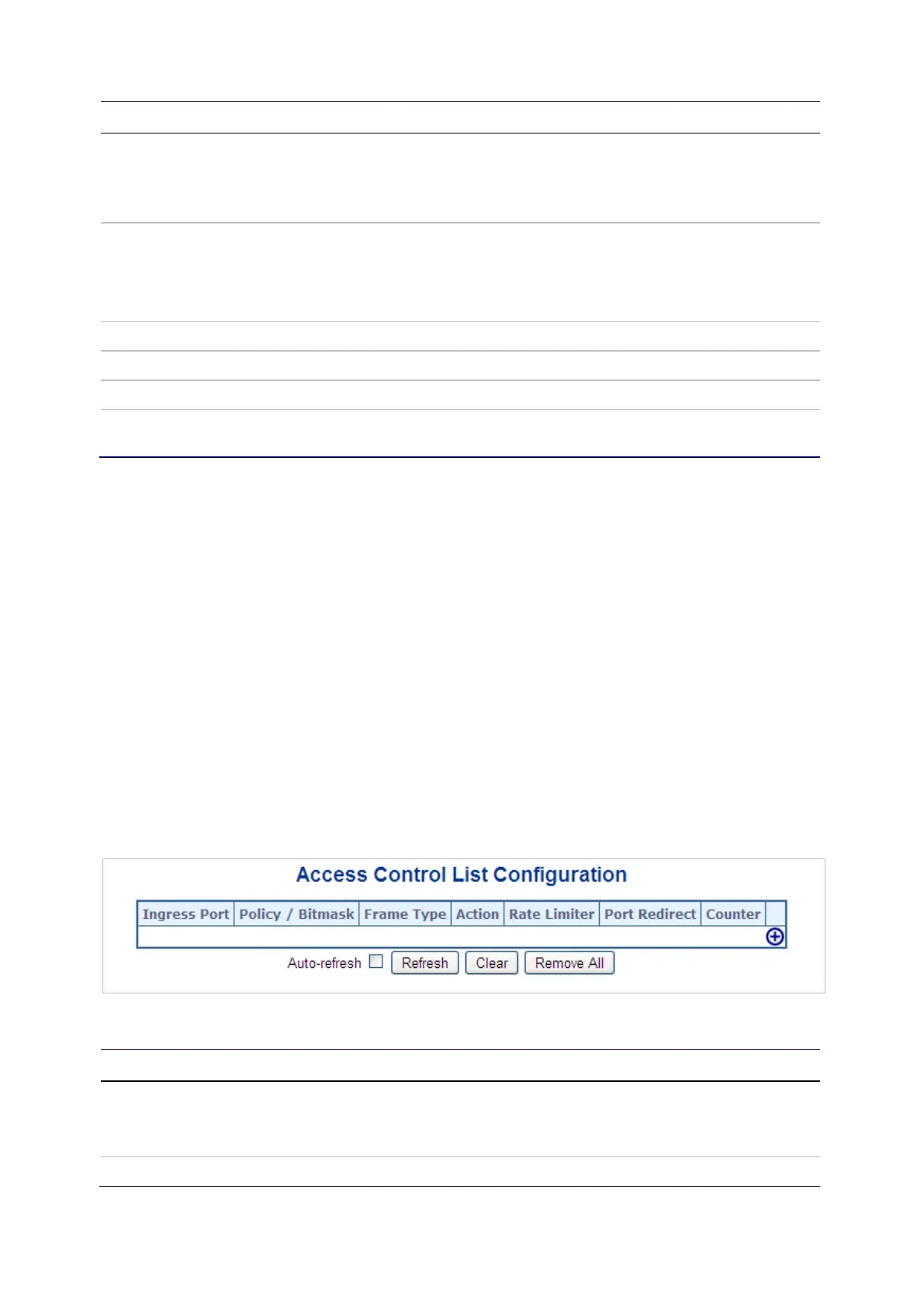

The Access Control List Configuration page shows the Access Control List (ACL),
which is made up of the ACEs defined on this switch. Each row describes the ACE that
is defined. The maximum number of ACEs is 256 on each switch.
Click on the lowest plus sign to add a new ACE to the list. The reserved ACEs used for
internal protocol cannot be edited or deleted, the order sequence cannot be changed,
and the priority is highest.
The page includes the following fields:
Object Description
Ingress Port Indicates the ingress port of the ACE. Possible values are:
All: The ACE matches all ingress port.
Port: The ACE matches a specific ingress port.
Policy / Bitmask Indicates the policy number and bitmask of the ACE.
